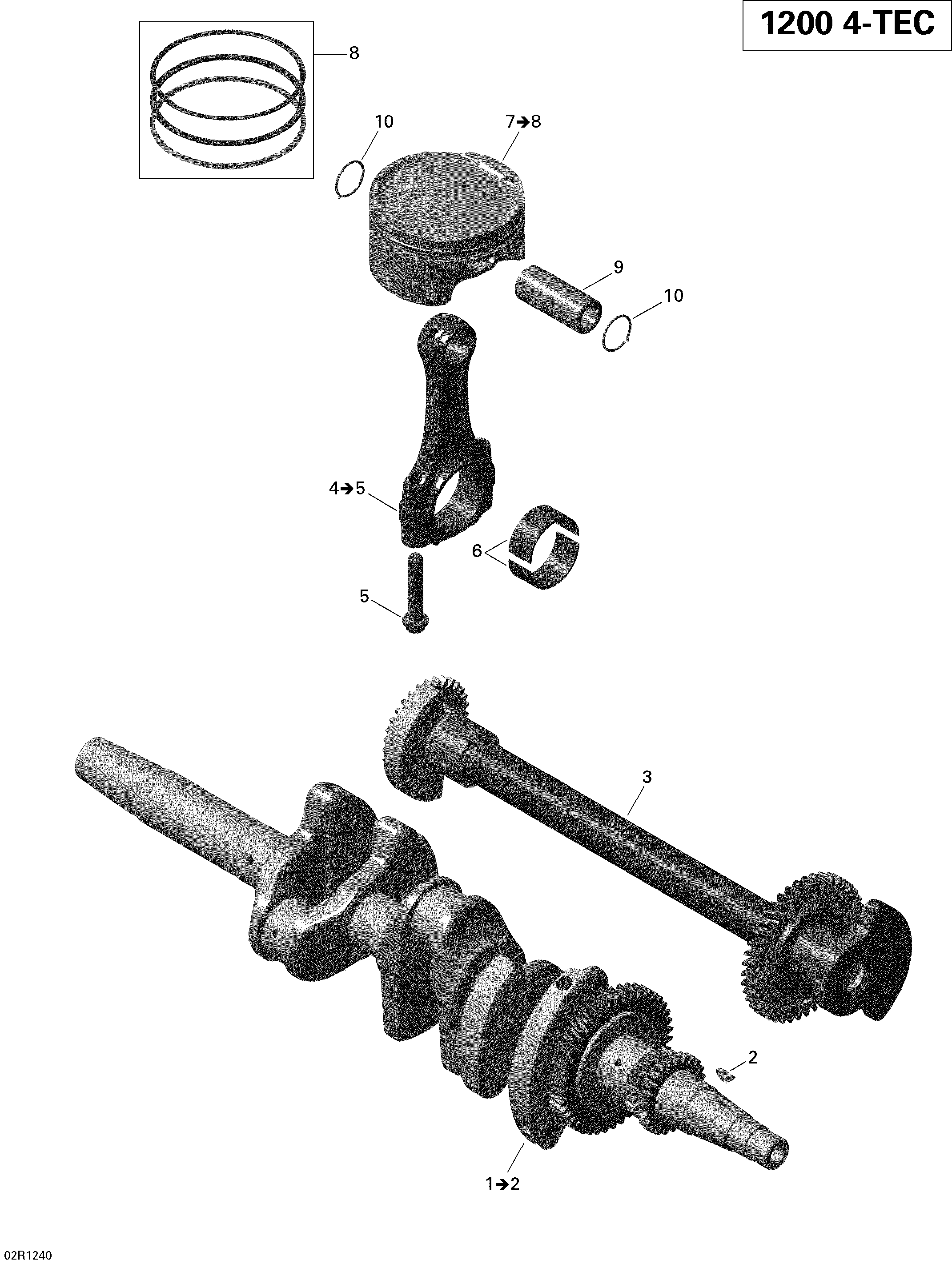

01- Crankshaft, Pistons And Balance Shaft для BRP Ski-Doo Expedition SE 1200 XU - 2012
-
№АртикулНазвание
-
1420819795 Crankshaft Ass'y. Includes 1 to 2Crankshaft Ass'y. Includes 1 to 2
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420820057 Balance ShaftBalance Shaft
-
4420917645 Connecting Rod Ass'y. Includes 4 to 5Connecting Rod Ass'y. Includes 4 to 5
-
5420641475 Connecting Rod Screw M9 X 1Connecting Rod Screw M9 X 1
-
6420933842 Plain BearingPlain Bearing
-
7420891890 Piston Ass'y, 90.958 mm. Includes 7 to 8Piston Ass'y, 90.958 mm. Includes 7 to 8
-
8420296774 Piston Ring SetPiston Ring Set
-
9420216274 Piston PinPiston Pin
-
10420245436 Piston CirclipPiston Circlip
