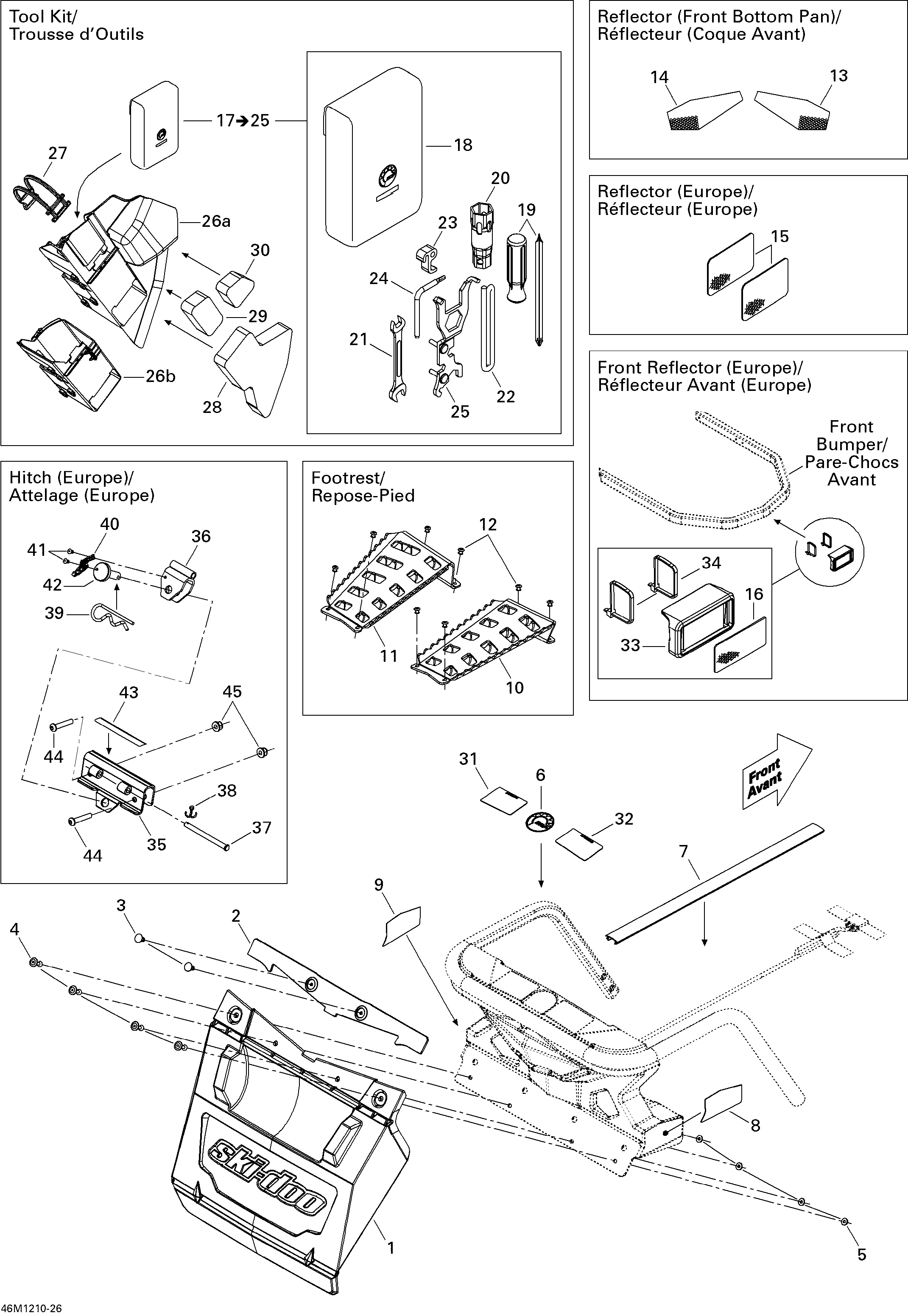

09- Utilities для BRP Ski-Doo Grand Touring Sport 600 XP - 2012
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2520000953 Esthetic PlateEsthetic Plate
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5517124300 WasherWasher
-
6219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
7520000829 Radiator TrimRadiator Trim
-
8520000881 RH Reflector. North AmericaRH Reflector. North America
-
9520000880 LH Reflector. North AmericaLH Reflector. North America
-
10520000887 RH FootrestRH Footrest
-
11520000888 LH FootrestLH Footrest
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13520000718 RH Front ReflectorRH Front Reflector
-
14520000719 LH Front ReflectorLH Front Reflector
-
17529000065 Tool Kit. Includes 17 to 25Tool Kit. Includes 17 to 25
-
19529000004 Screw DriverScrew Driver
-
21529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
22412500200 Starter Rope, MeterStarter Rope, Meter
-
23529000060 Starter GripStarter Grip
-
24520001142 Spacing ToolSpacing Tool
-
25520000988 Wrench SuspensionWrench Suspension
-
26a520000842 Tool Kit RackTool Kit Rack
-
27520000528 LatchLatch
-
28520001059 FoamFoam
-
29520001061 FoamFoam
-
30520001062 FoamFoam
-
31516005043 LH Warning Decal, SecurityLH Warning Decal, Security
-
32516005044 RH Warning Decal, SecurityRH Warning Decal, Security
