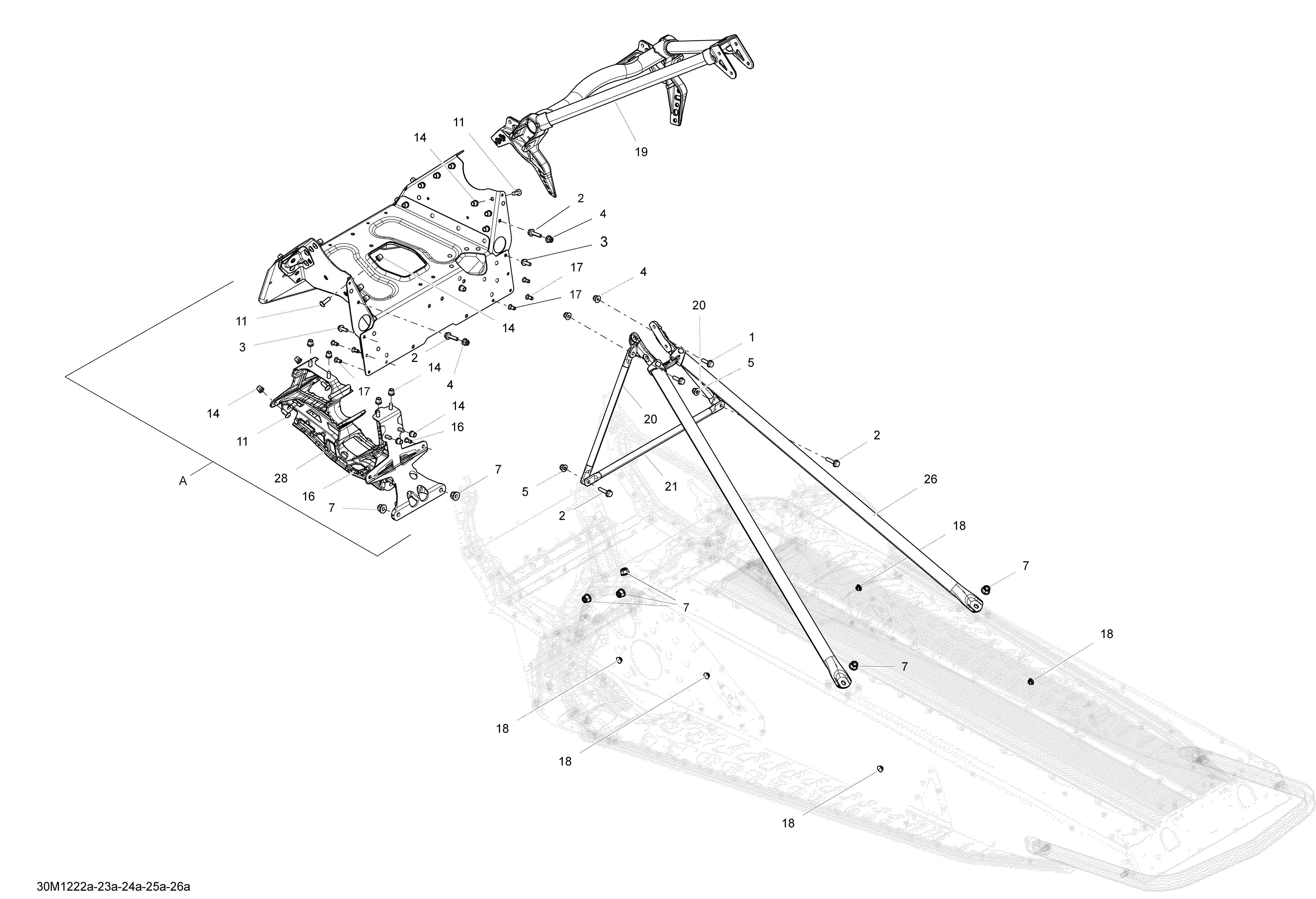

09- Frame Common Parts для BRP Ski-Doo MXZ TNT 550F XP-FAN - 2012
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
17293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
18293730047 Dart 8 mm, BlackDart 8 mm, Black
-
19518326975 Front MemberFront Member
-
20518325114 Upper Column SupportUpper Column Support
-
21518325115 Center Column SupportCenter Column Support
-
26518326559 Rear MemberRear Member
-
28518325925 Front Suspension SupportFront Suspension Support
-
A518325567 S-ModuleS-Module
