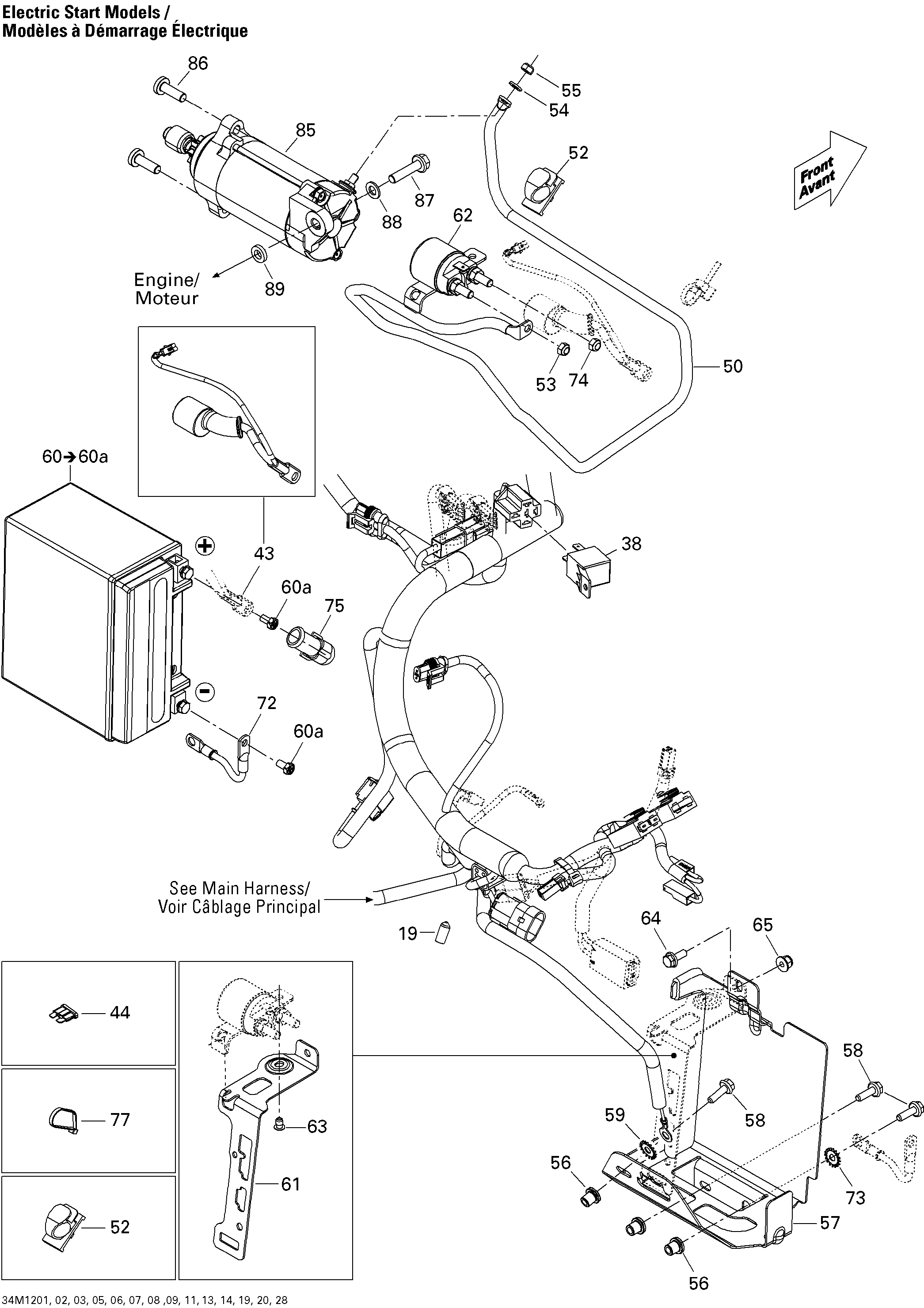

10- Battery And Starter 800R ETEC для BRP Ski-Doo MXZ TNT 800RETEC XP - 2012
-
№АртикулНазвание
-
19515176141 CapCap
-
38515177041 Relay. Electrical StarterRelay. Electrical Starter
-
43515177200 Battery Fuse Wire. Electrical StarterBattery Fuse Wire. Electrical Starter
-
44410917200 Fuse, 30 Amperes. Electrical StarterFuse, 30 Amperes. Electrical Starter
-
50515177067 Battery Wire. Electrical StarterBattery Wire. Electrical Starter
-
52515177066 Clip. Electrical StarterClip. Electrical Starter
-
53232561414 Elastic Stop Nut M6. Electrical StarterElastic Stop Nut M6. Electrical Starter
-
54234061410 Flat Washer 6 mm. Electrical StarterFlat Washer 6 mm. Electrical Starter
-
55232561414 Elastic Stop Nut M6. Electrical StarterElastic Stop Nut M6. Electrical Starter
-
56415107300 InsertInsert
-
56415107300 Insert. Electrical StarterInsert. Electrical Starter
-
57515176886 Battery Support Ass'y. Electrical StarterBattery Support Ass'y. Electrical Starter
-
58207662044 Hex. Flanged Screw M6 X 20. Electrical StarterHex. Flanged Screw M6 X 20. Electrical Starter
-
58207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
59250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
60296000295 Battery 18 Amp. 800RE Electrical StarterBattery 18 Amp. 800RE Electrical Starter
-
60a295500849 Battery Fastener Kit. 800RE Electrical StarterBattery Fastener Kit. 800RE Electrical Starter
-
61515177008 Battery Strip. Electrical StarterBattery Strip. Electrical Starter
-
62515176501 Starter Relay. Electrical StarterStarter Relay. Electrical Starter
-
63390402200 Pop Rivet 3/16''. Electrical StarterPop Rivet 3/16''. Electrical Starter
-
64207661644 Hex. Flanged Screw M6 X 16. Electrical StarterHex. Flanged Screw M6 X 16. Electrical Starter
-
65233261414 Hex. Flanged Elastic Nut M6. Electrical StarterHex. Flanged Elastic Nut M6. Electrical Starter
-
72515176358 Ground Wire. Electrical StarterGround Wire. Electrical Starter
-
73250200041 Lock Washer Serrated M6. Electrical StarterLock Washer Serrated M6. Electrical Starter
-
74232561414 Elastic Stop Nut M6. Electrical StarterElastic Stop Nut M6. Electrical Starter
-
75710000495 Protector Cap. Electrical StarterProtector Cap. Electrical Starter
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
85515176858 Starter Ass'y. Electric StartStarter Ass'y. Electric Start
-
86250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
87207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electric StartHex Flanged Screw M8 X 35, Scotch Grip. Electric Start
-
88250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
-
89515176500 Washer. Electric StartWasher. Electric Start
