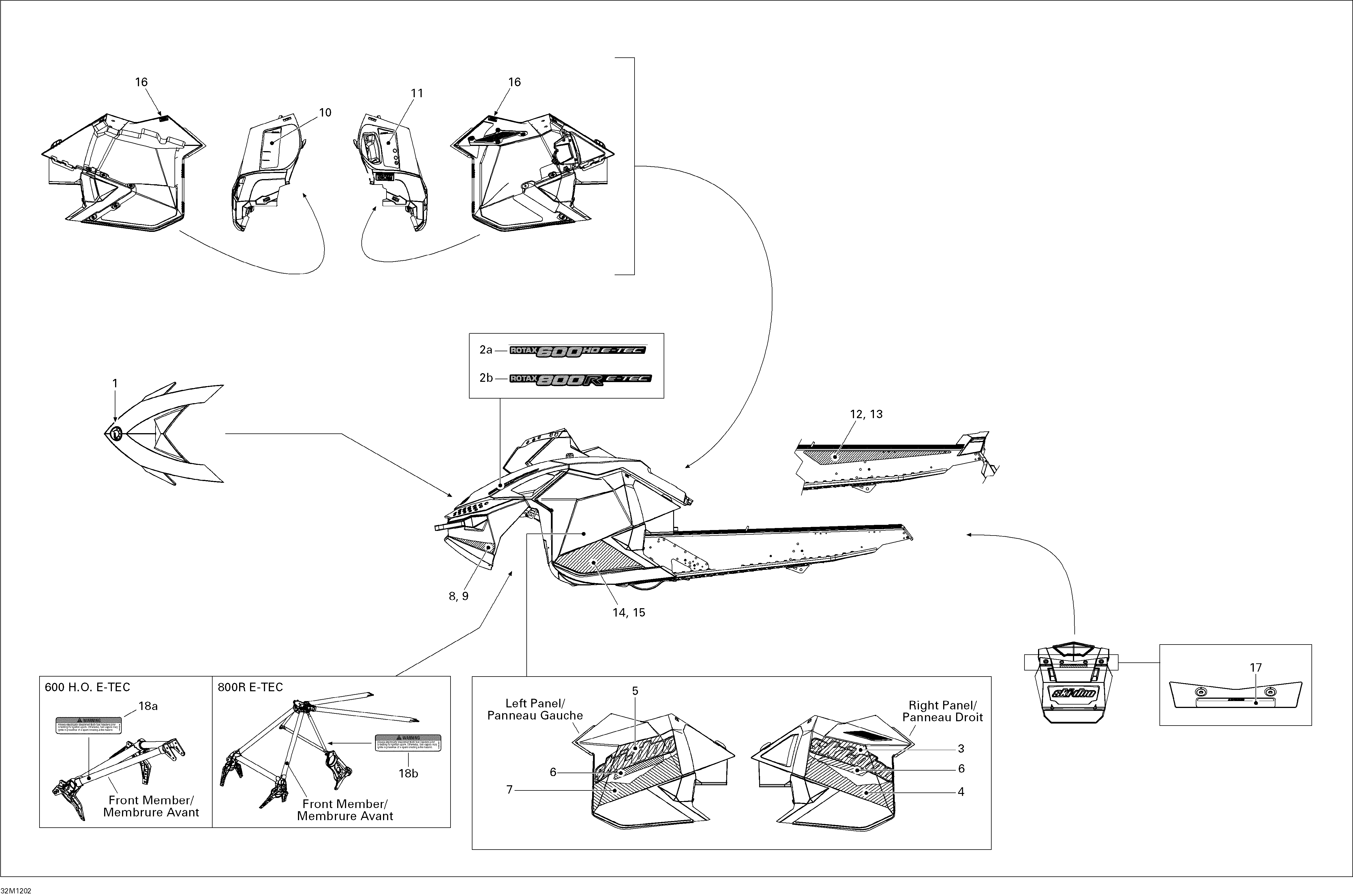

09- Decals 600HOETEC для BRP Ski-Doo MXZ X 600HOETEC - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2a516003532 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
3516004762 RH Side Decal. Black-Black ModelRH Side Decal. Black-Black Model
-
3516004773 RH Side Decal. Black-White ModelRH Side Decal. Black-White Model
-
4516004775 RH Lower Side Decal, Top XRH Lower Side Decal, Top X
-
5516004761 LH Side Decal. Black-Black ModelLH Side Decal. Black-Black Model
-
5516004772 LH Side Decal. Black-White ModelLH Side Decal. Black-White Model
-
6516004765 Side Decal, MX-Z. Black-Black ModelSide Decal, MX-Z. Black-Black Model
-
6516004887 Side Decal, MX-Z. Black-White ModelSide Decal, MX-Z. Black-White Model
-
7516004774 LH Lower Side Decal, Top XLH Lower Side Decal, Top X
-
8516004781 RH Bottom PanRH Bottom Pan
-
9516004780 LH Bottom PanLH Bottom Pan
-
10516004561 Warning Decal, SecurityWarning Decal, Security
-
11516004888 Warning Decal, SecurityWarning Decal, Security
-
12516004783 RH Frame Decal, REV XP. Black-Black ModelRH Frame Decal, REV XP. Black-Black Model
-
12516004779 RH Frame Decal, REV XP. Black-White ModelRH Frame Decal, REV XP. Black-White Model
-
13516004782 LH Frame Decal, REV XP. Black-Black ModelLH Frame Decal, REV XP. Black-Black Model
-
13516004778 LH Frame Decal, REV XP. Black-White ModelLH Frame Decal, REV XP. Black-White Model
-
14516004777 RH Lower Decal, Bottom XRH Lower Decal, Bottom X
-
15516004776 LH Lower Decal, Bottom XLH Lower Decal, Bottom X
-
16516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
17516004440 Warning Decal, TrackWarning Decal, Track
-
18a516003940 Warning Decal, InjectorsWarning Decal, Injectors
