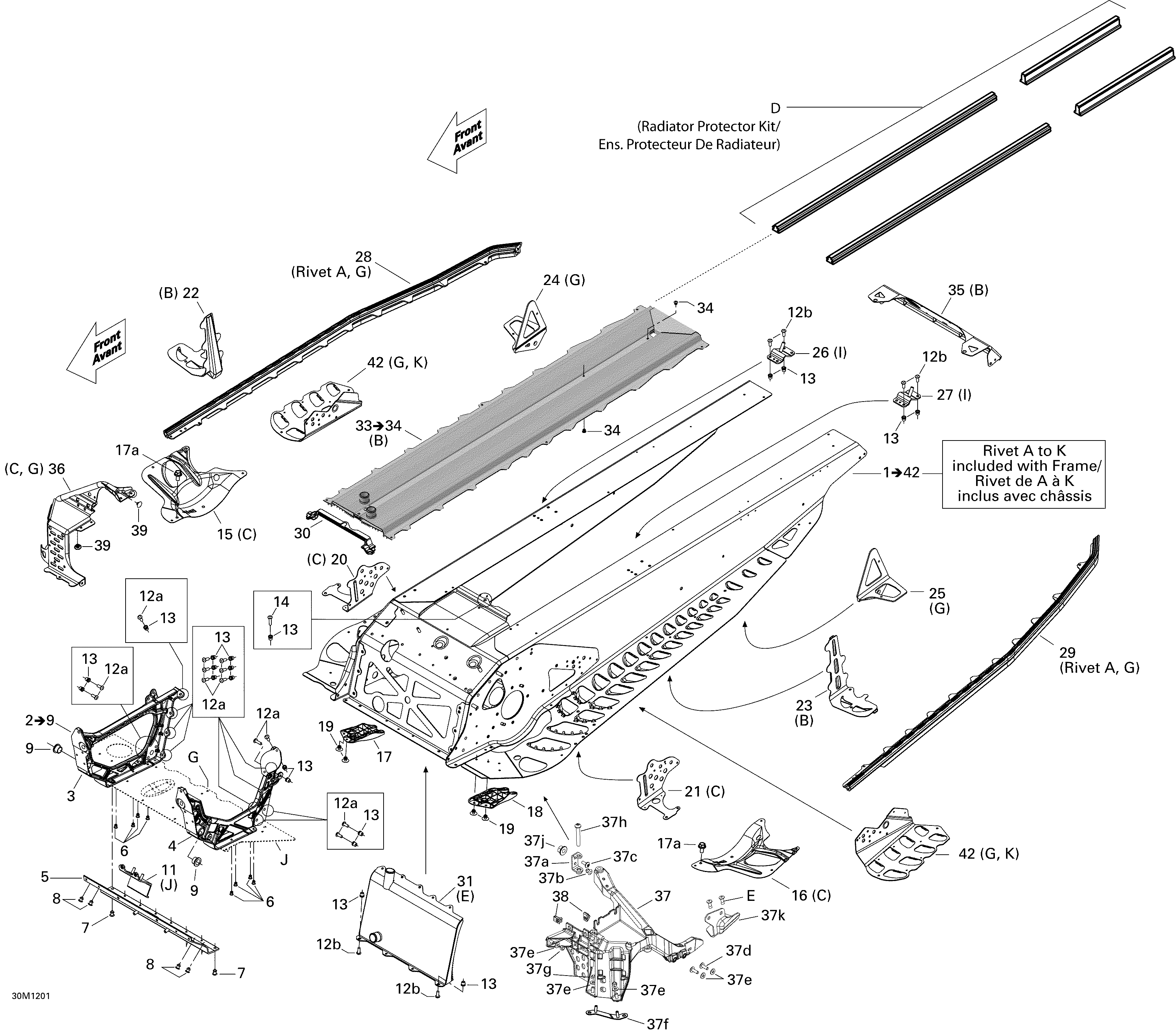

09- Frame для BRP Ski-Doo MXZ XRS 600HOETEC - 2012
-
№АртикулНазвание
-
1415129629 Frame MXZ XRS. Includes 1 to 42Frame MXZ XRS. Includes 1 to 42
-
2518326843 E-Module Ass'y. Includes 2 to 9E-Module Ass'y. Includes 2 to 9
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505072690 Leg CushionLeg Cushion
-
11518325943 MAG Engine SupportMAG Engine Support
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15518324874 RH ReinforcementRH Reinforcement
-
16518324875 LH ReinforcementLH Reinforcement
-
17518325782 RH DeflectorRH Deflector
-
18518325783 LH DeflectorLH Deflector
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518326616 RH Front RetainerRH Front Retainer
-
21518326617 LH Front RetainerLH Front Retainer
-
22518325747 RH ReinforcementRH Reinforcement
-
23518325748 LH ReinforcementLH Reinforcement
-
24518326654 RH Slide Suspension BracketRH Slide Suspension Bracket
-
25518326655 LH Slide Suspension BracketLH Slide Suspension Bracket
-
26518325973 RH Rear BaseRH Rear Base
-
27518325974 LH Rear BaseLH Rear Base
-
28518326282 RH Foot RollerRH Foot Roller
-
29518326283 LH Foot RollerLH Foot Roller
-
30518326656 SealSeal
-
31518326485 Front RadiatorFront Radiator
-
33518325666 Rear Radiator Ass'y. Includes 33 to 34Rear Radiator Ass'y. Includes 33 to 34
-
34293150144 Stavex RivetStavex Rivet
-
35518325421 Rear CapRear Cap
-
36518326216 RH StirupRH Stirup
-
37518326820 LH StirupLH Stirup
-
38250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
39293730042 DartDart
-
42860200522 Aluminum Reinforcement Frame KitAluminum Reinforcement Frame Kit
-
12a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17a207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
37a518326961 U-AttachU-Attach
-
37b293150147 Hemlock RivetHemlock Rivet
-
37c250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
37D250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
37e250200039 Flat WasherFlat Washer
-
37f518326986 AttachAttach
-
37g232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
37h250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
37J233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
37k518326960 SupportSupport
-
A390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
B390909200 Avex RivetAvex Rivet
-
C390909100 Avex RivetAvex Rivet
-
D860200267 Tunnel Protector KitTunnel Protector Kit
-
G293150144 Stavex RivetStavex Rivet
-
H293150146 Henrob RivetHenrob Rivet
-
I293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
J293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
K293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
