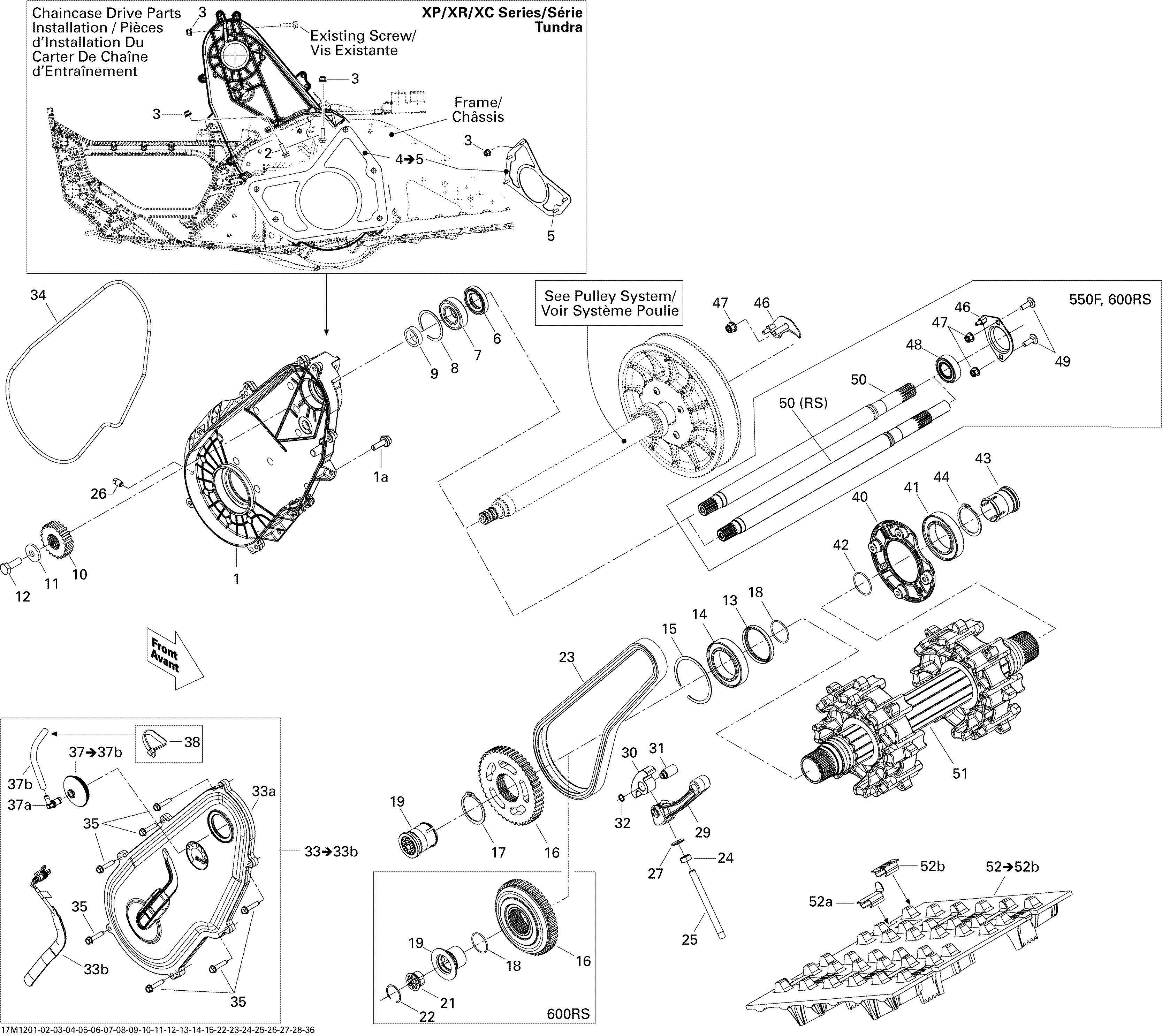

05- Drive System для BRP Ski-Doo Renegade Adrenaline 800RETEC XP - 2012
-
№АртикулНазвание
-
1504153055 ChaincaseChaincase
-
2207662034 Hex. Flanged ScrewHex. Flanged Screw
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4518325816 Plate. Includes 4 to 5Plate. Includes 4 to 5
-
6415049300 Oil SealOil Seal
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
9504152628 ShimShim
-
10504084300 Sprocket, 25 Teeth (Large). 25 Teeth, 800R ETECSprocket, 25 Teeth (Large). 25 Teeth, 800R ETEC
-
10504091000 Sprocket, 23 Teeth. 23 Teeth, 600HO ETECSprocket, 23 Teeth. 23 Teeth, 600HO ETEC
-
10504096200 Sprocket, 21 Teeth. 21 Teeth, 600HO ETEC EuropeSprocket, 21 Teeth. 21 Teeth, 600HO ETEC Europe
-
11504152784 Spring Washer M10Spring Washer M10
-
12207103044 Hex. Screw M10 X 30Hex. Screw M10 X 30
-
13504152571 SealSeal
-
14293350059 Ball BearingBall Bearing
-
15504152582 CirclipCirclip
-
16504152593 Sprocket, 45 Teeth. 45 TeethSprocket, 45 Teeth. 45 Teeth
-
17504152572 CirclipCirclip
-
18293300122 O-RingO-Ring
-
19504152619 Magnetic CapMagnetic Cap
-
23504152579 Drive Chain, 102 Links. 102 Chain Link, 600HO ETEC EuropeDrive Chain, 102 Links. 102 Chain Link, 600HO ETEC Europe
-
23504152629 Drive Chain, 104 Links. 104 Chain LinkDrive Chain, 104 Links. 104 Chain Link
-
24232006414 Hex. Nut M10Hex. Nut M10
-
25504152602 Adjustment ScrewAdjustment Screw
-
26504152854 Magnetic PlugMagnetic Plug
-
27250200100 Bonded WasherBonded Washer
-
29504152685 Chain TensionerChain Tensioner
-
30504152739 Slider Chain Ass'y. 800R ETECSlider Chain Ass'y. 800R ETEC
-
30504153031 Slider Chain Ass'y. 600HO ETECSlider Chain Ass'y. 600HO ETEC
-
31504152841 Tensionner AxleTensionner Axle
-
32504152282 CirclipCirclip
-
33504153059 Chaincase Cover Ass'y. Includes 33 to 33bChaincase Cover Ass'y. Includes 33 to 33b
-
34293300130 O-RingO-Ring
-
35210263080 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
37504152860 Cap. Not Included 37a: 414580700, 37b 415080200Cap. Not Included 37a: 414580700, 37b 415080200
-
40504152949 Housing BearingHousing Bearing
-
41293350059 Ball BearingBall Bearing
-
42293300122 O-RingO-Ring
-
43504152619 Magnetic CapMagnetic Cap
-
44504152572 CirclipCirclip
-
46504152974 Bearing HousingBearing Housing
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
51504153083 Drive Axle Ass'yDrive Axle Ass'y
-
52504152734 Track Ass'y, 16X137X1.2. Includes 52 to 52bTrack Ass'y, 16X137X1.2. Includes 52 to 52b
-
33a504152917 Chaincase CoverChaincase Cover
-
33b504152896 SensorSensor
-
37a414580700 Male ConnectorMale Connector
-
37b415080200 Hose, PolyurethaneHose, Polyurethane
-
52a415129528 Track GuideTrack Guide
-
52b504152651 CleatCleat
