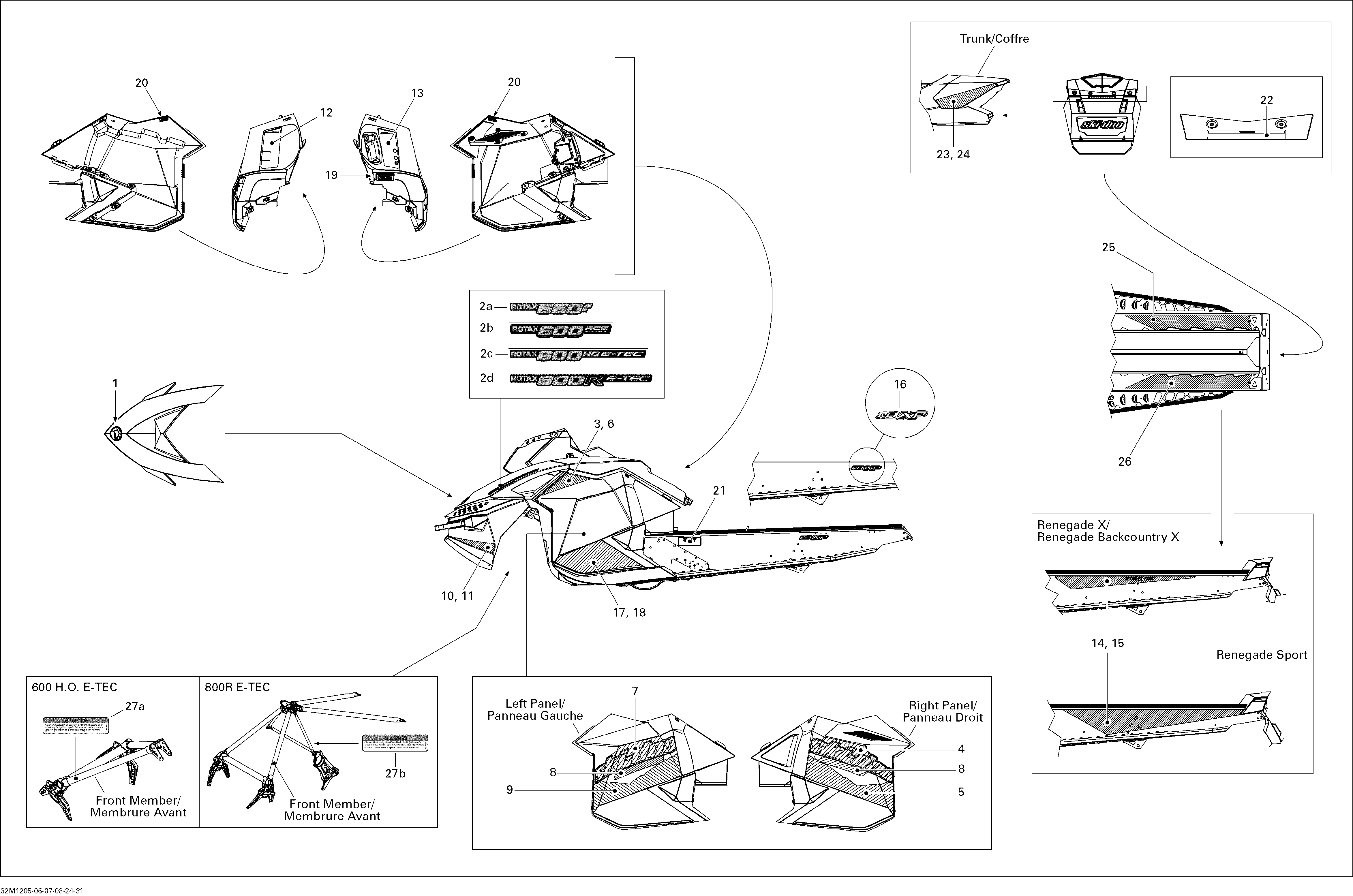

09- Decals 600HOETEC для BRP Ski-Doo Renegade Back Country 600HOETEC - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2c516003532 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
3516004767 RH Upper Side DecalRH Upper Side Decal
-
4516004762 RH Side DecalRH Side Decal
-
6516004766 LH Upper Side DecalLH Upper Side Decal
-
7516004761 LH Side DecalLH Side Decal
-
8516004810 Side Decal, RenegadeSide Decal, Renegade
-
12516004561 Warning Decal, SecurityWarning Decal, Security
-
13516004888 Warning Decal, SecurityWarning Decal, Security
-
16516004799 Decal, REV XPDecal, REV XP
-
17516004804 RH Lower DecalRH Lower Decal
-
18516004803 LH Lower DecalLH Lower Decal
-
20516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
23516004760 RH Cover DecalRH Cover Decal
-
24516004759 LH Cover DecalLH Cover Decal
-
27a516003940 Warning Decal, InjectorsWarning Decal, Injectors
