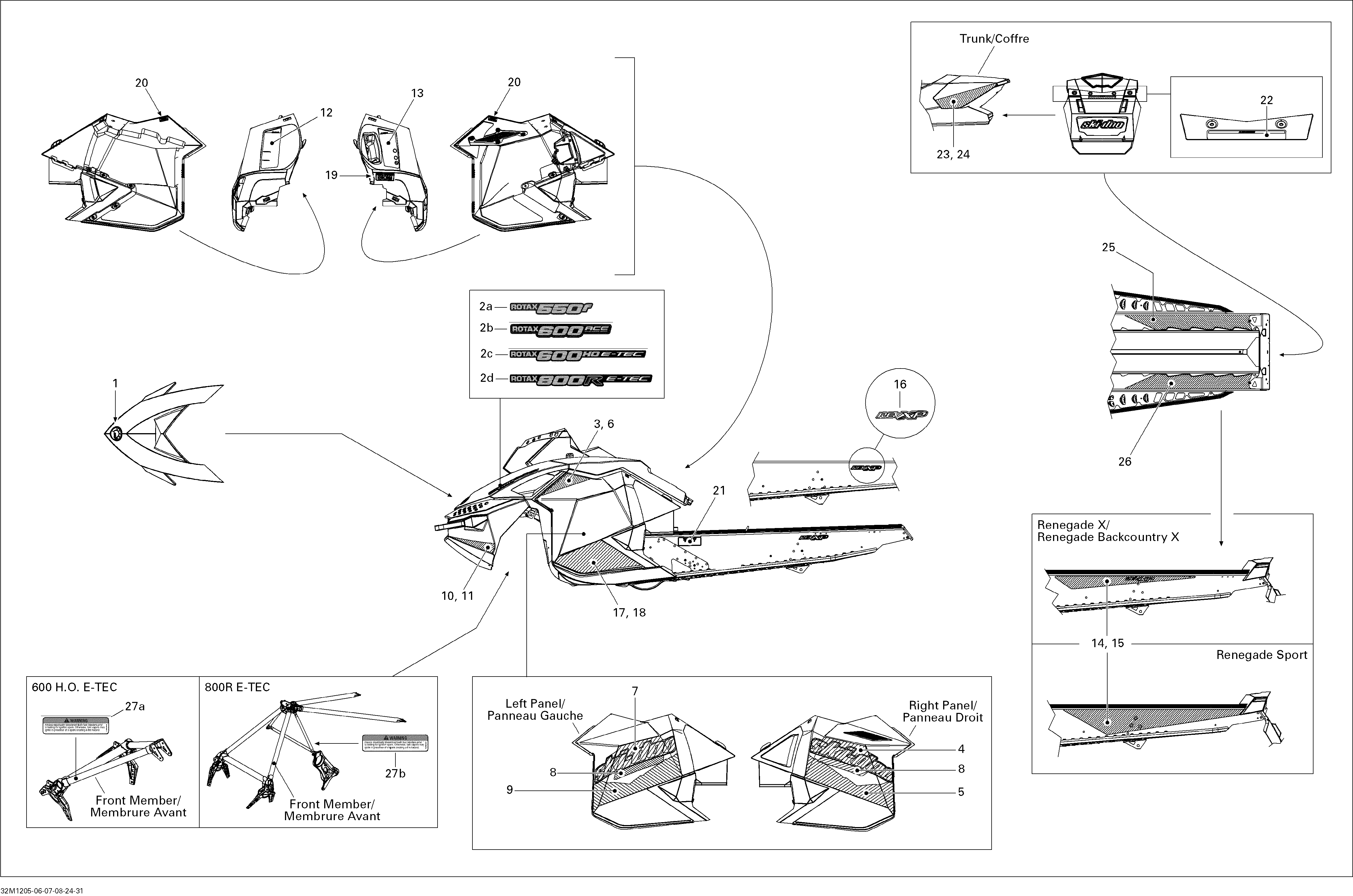

09- Decals 600HOETEC для BRP Ski-Doo Renegade Back Country X 600HOETEC - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2c516003532 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
4516004762 RH Side DecalRH Side Decal
-
5516004812 RH Lower Side Decal, Top XRH Lower Side Decal, Top X
-
7516004761 LH Side DecalLH Side Decal
-
8516004916 Side Decal, Renegade BackcountrySide Decal, Renegade Backcountry
-
9516004811 LH Lower Side Decal, Top XLH Lower Side Decal, Top X
-
10516004808 RH Bottom PanRH Bottom Pan
-
11516004807 LH Bottom PanLH Bottom Pan
-
12516004561 Warning Decal, SecurityWarning Decal, Security
-
13516004888 Warning Decal, SecurityWarning Decal, Security
-
14516004806 RH Frame Decal, REV XP. XRH Frame Decal, REV XP. X
-
15516004805 LH Frame Decal, REV XP. XLH Frame Decal, REV XP. X
-
17516004814 RH Lower Decal, Bottom XRH Lower Decal, Bottom X
-
18516004813 LH Lower Decal, Bottom XLH Lower Decal, Bottom X
-
19516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
20516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
27a516003940 Warning Decal, InjectorsWarning Decal, Injectors
