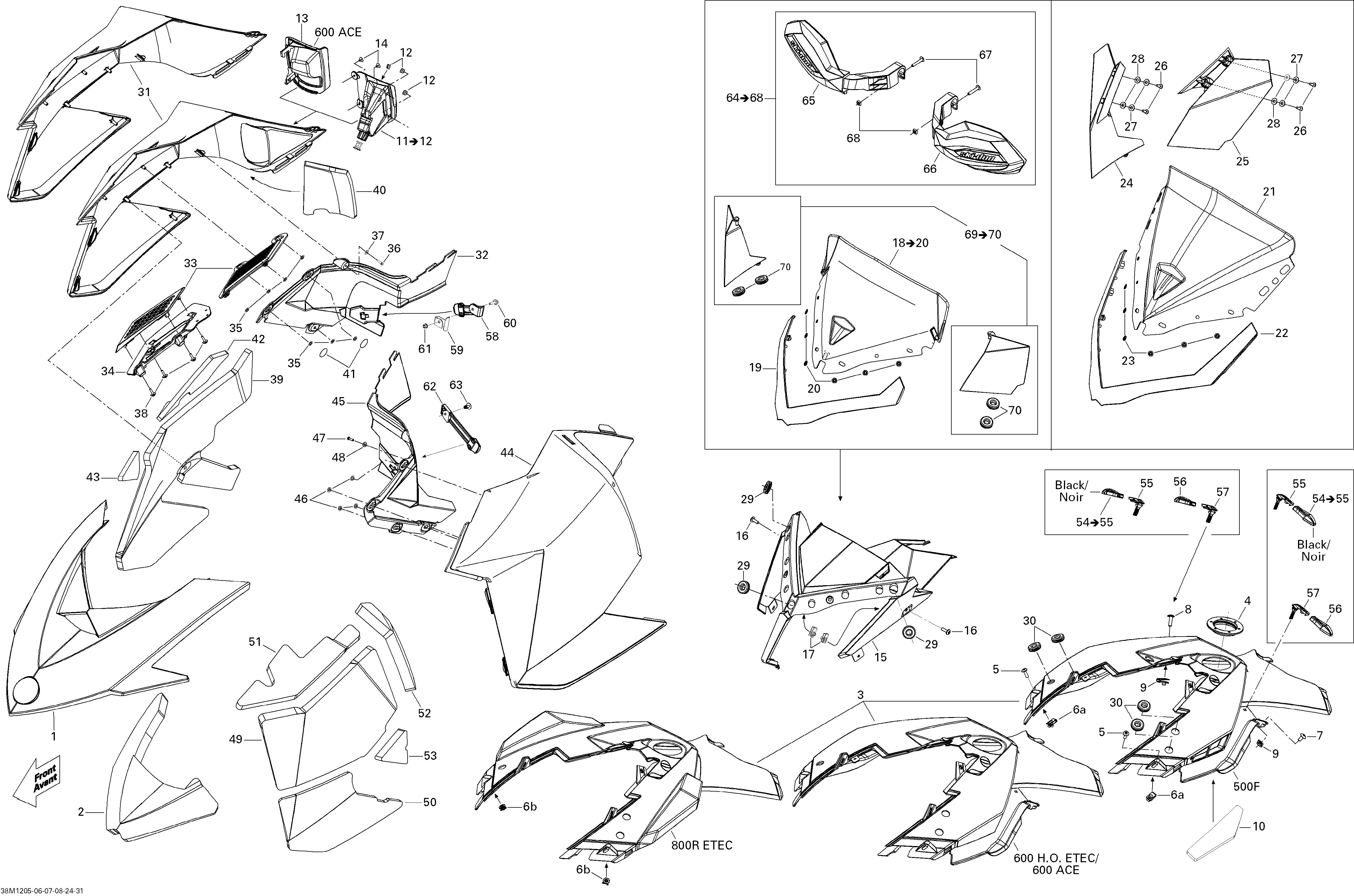

09- Hood, Windshield And Console 800RETEC для BRP Ski-Doo Renegade Back Country X 800RETEC XP - 2012
-
№АртикулНазвание
-
1517304530 HoodHood
-
2517304913 Hood FoamHood Foam
-
3517304639 ConsoleConsole
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6b732610057 Jack Nut M6Jack Nut M6
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
11517304322 RH Console. Includes 11 to 12, Manual StarterRH Console. Includes 11 to 12, Manual Starter
-
12275500241 Cap, Black. Manual StarterCap, Black. Manual Starter
-
14250000113 Screw M4 X 16, Type K-40. Manual StarterScrew M4 X 16, Type K-40. Manual Starter
-
15517304575 Gauge Support. Black-Black ModelGauge Support. Black-Black Model
-
15517304579 Gauge Support. Black-White ModelGauge Support. Black-White Model
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
17250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18517304390 Windshield 285 Ass'y. Includes 18 to 20Windshield 285 Ass'y. Includes 18 to 20
-
19517303757 Windshield SupportWindshield Support
-
20732610072 Push NutPush Nut
-
29517303756 GrommetGrommet
-
30517303756 GrommetGrommet
-
31517304422 RH Panel. Manual Starter, Black-White ModelRH Panel. Manual Starter, Black-White Model
-
31517304029 RH Panel. Manual Starter, Black-Black ModelRH Panel. Manual Starter, Black-Black Model
-
31517304419 RH Panel. Electric Starter, Black-White ModelRH Panel. Electric Starter, Black-White Model
-
31517304210 RH Panel. Electric Starter, Black-Black ModelRH Panel. Electric Starter, Black-Black Model
-
32517303671 RH Moulding PanelRH Moulding Panel
-
33517304763 External GrillExternal Grill
-
34517304764 Internal GrillInternal Grill
-
35732610072 Push NutPush Nut
-
36241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
37234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
38250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
39517304883 RH Center FoamRH Center Foam
-
40517304884 RH Panel Rear FoamRH Panel Rear Foam
-
41518325560 Adhesive PatchAdhesive Patch
-
44517304030 LH Panel. Black-Black ModelLH Panel. Black-Black Model
-
44517304426 LH Panel. Black-White ModelLH Panel. Black-White Model
-
45517303673 LH Moulding PanelLH Moulding Panel
-
46732610072 Push NutPush Nut
-
47241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
48234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
49517304887 LH Panel Center FoamLH Panel Center Foam
-
50517304888 LH Panel Lower FoamLH Panel Lower Foam
-
51517304889 LH Panel Upper FoamLH Panel Upper Foam
-
52517304890 LH Panel Rear FoamLH Panel Rear Foam
-
53517304891 FoamFoam
-
54860200239 Black Latch Kit. Includes 54 to 55, Black-Black ModelBlack Latch Kit. Includes 54 to 55, Black-Black Model
-
55517303981 Panel Latch. Black-Black ModelPanel Latch. Black-Black Model
-
56517304435 End Piece Latch. Black-White ModelEnd Piece Latch. Black-White Model
-
57517303981 Panel Latch. Black-White ModelPanel Latch. Black-White Model
-
58517303612 Panel LatchPanel Latch
-
59517304221 Latch SupportLatch Support
-
60207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
61233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
62517303808 Panel LatchPanel Latch
-
63250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
64860200712 Wind Deflector Kit. Includes 64 to 68, Black-Black ModelWind Deflector Kit. Includes 64 to 68, Black-Black Model
-
64860200711 Wind Deflector Kit. Includes 64 to 68, Black-White ModelWind Deflector Kit. Includes 64 to 68, Black-White Model
-
65517305039 RH Wind Deflector. Black-Black ModelRH Wind Deflector. Black-Black Model
-
65517305045 RH Wind Deflector. Black-White ModelRH Wind Deflector. Black-White Model
-
66517305040 LH Wind Deflector. Black-Black ModelLH Wind Deflector. Black-Black Model
-
66517305046 LH Wind Deflector. Black-White ModelLH Wind Deflector. Black-White Model
-
67250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
68250000498 Square Nut M6Square Nut M6
-
69860200498 Air Deflector Kit (LH and RH). Includes 60 to 70Air Deflector Kit (LH and RH). Includes 60 to 70
-
70515303756 GrommetGrommet
