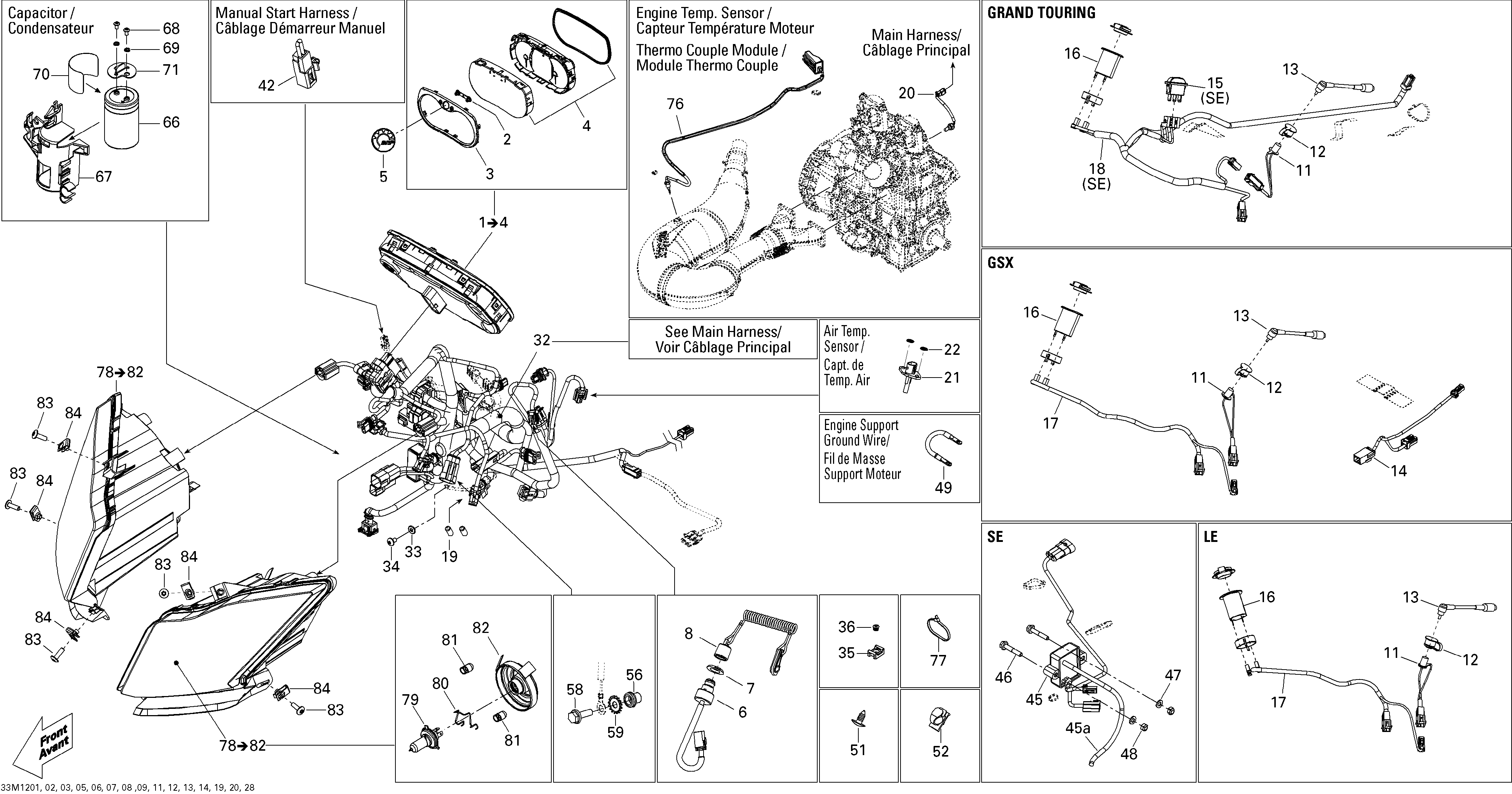

10- Electrical System 800R ETEC для BRP Ski-Doo Renegade X 800RETEC XP - 2012
-
№АртикулНазвание
-
1515177114 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS SwitchDESS Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 DESS CapDESS Cap
-
19515176141 CapCap
-
20515176398 Temperature SensorTemperature Sensor
-
21515176366 Air Temperature SensorAir Temperature Sensor
-
22389804300 Push NutPush Nut
-
33234141601 Lock Washer 4 mm. 800RELock Washer 4 mm. 800RE
-
34250000127 Torx Screw M4 X 8. 800RETorx Screw M4 X 8. 800RE
-
42515176661 Manual Start Harness. Manual StarterManual Start Harness. Manual Starter
-
49515176861 Ground WireGround Wire
-
51414644300 Dart. Manual StarterDart. Manual Starter
-
52515177066 Clip. Electrical StarterClip. Electrical Starter
-
56415107300 InsertInsert
-
56415107300 Insert. Electrical StarterInsert. Electrical Starter
-
58207662044 Hex. Flanged Screw M6 X 20. Electrical StarterHex. Flanged Screw M6 X 20. Electrical Starter
-
58207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
59250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
66515176349 CapacitorCapacitor
-
67515176607 Capacitor SupportCapacitor Support
-
68250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
69250200026 Lock washerLock washer
-
70516004570 Capacitor DecalCapacitor Decal
-
71515177193 CapCap
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
78517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
78517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
79515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
80515176493 Bulb HolderBulb Holder
-
81515176498 CapCap
-
82515176499 CoverCover
-
83250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
84250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
