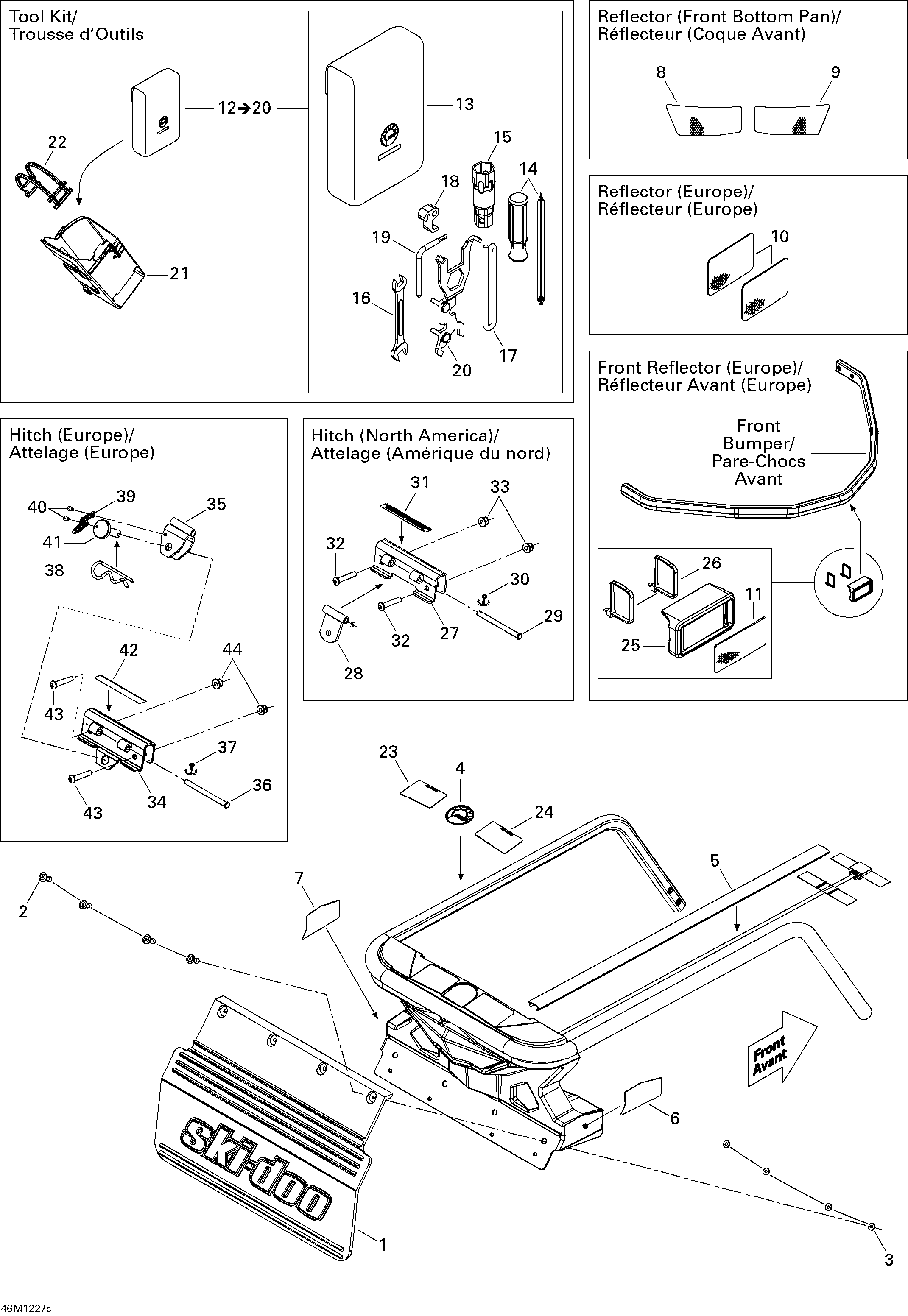

09- Utilities LT для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2012
-
№АртикулНазвание
-
1520000949 Snow GuardSnow Guard
-
2293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000829 Radiator TrimRadiator Trim
-
6520000881 RH Reflector. North AmericaRH Reflector. North America
-
6520000883 RH Reflector. EuropeRH Reflector. Europe
-
7520000880 LH Reflector. North AmericaLH Reflector. North America
-
7520000882 LH Reflector. EuropeLH Reflector. Europe
-
8520000891 RH ReflectorRH Reflector
-
9520000892 LH ReflectorLH Reflector
-
10520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
11415037900 Reflector, White. EuropeReflector, White. Europe
-
12529000065 Tool Kit. Inclus 12 to 20Tool Kit. Inclus 12 to 20
-
14529000004 Screw DriverScrew Driver
-
16529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
17412500200 Starter Rope, MeterStarter Rope, Meter
-
18529000060 Starter GripStarter Grip
-
19520001142 Spacing ToolSpacing Tool
-
20520000988 Wrench SuspensionWrench Suspension
-
21520000894 Tool Kit RackTool Kit Rack
-
22520000528 LatchLatch
-
23516005043 LH Warning Decal, SecurityLH Warning Decal, Security
-
24516005044 RH Warning Decal, SecurityRH Warning Decal, Security
-
25520000871 Reflector Support. EuropeReflector Support. Europe
-
26293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
27511000768 Support. North AmericaSupport. North America
-
28511000521 Hitch Plate Welded. North AmericaHitch Plate Welded. North America
-
29511000520 Clevis Pin. North AmericaClevis Pin. North America
-
30371800200 Cotter Pin. North AmericaCotter Pin. North America
-
31516004568 Warning Decal, Security. North AmericaWarning Decal, Security. North America
-
32205484546 Socket Head Screw M8 X 45. North AmericaSocket Head Screw M8 X 45. North America
-
33233281414 Hex. Flanged Elastic Nut M8. North AmericaHex. Flanged Elastic Nut M8. North America
-
34511000554 Support. EuropeSupport. Europe
-
35511000588 Hitch Plate. EuropeHitch Plate. Europe
-
36511000520 Clevis Pin. EuropeClevis Pin. Europe
-
37371800200 Cotter Pin. EuropeCotter Pin. Europe
-
38114045200 Hair Pin. EuropeHair Pin. Europe
-
40390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
41511000555 Pin. EuropePin. Europe
-
42516004568 Warning Decal, Security. EuropeWarning Decal, Security. Europe
-
43205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
44233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
