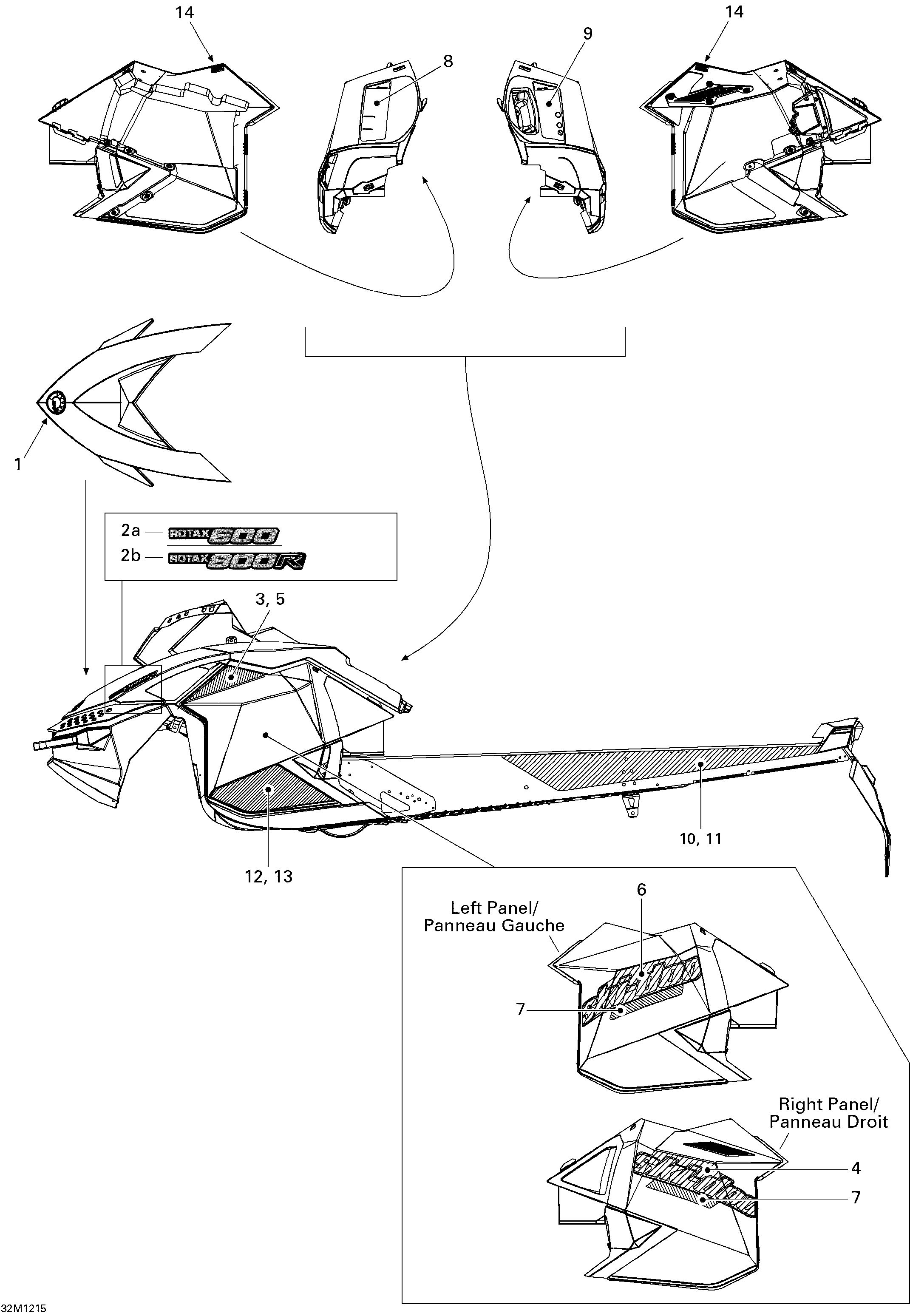

09- Decals 600 для BRP Ski-Doo Summit SPORT 600 - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2a516004386 Hood Decal, Rotax 600Hood Decal, Rotax 600
-
3516004767 RH Upper Side DecalRH Upper Side Decal
-
4516004762 RH Side DecalRH Side Decal
-
5516004766 LH Upper Side DecalLH Upper Side Decal
-
6516004761 LH Side DecalLH Side Decal
-
7516004820 Side Decal, SummitSide Decal, Summit
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004888 Warning Decal, SecurityWarning Decal, Security
-
10516004824 RH Frame Decal, REV XP 146''RH Frame Decal, REV XP 146''
-
11516004823 LH Frame Decal, REV XP 146''LH Frame Decal, REV XP 146''
-
12516004764 RH Lower DecalRH Lower Decal
-
13516004763 LH Lower DecalLH Lower Decal
-
14516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
