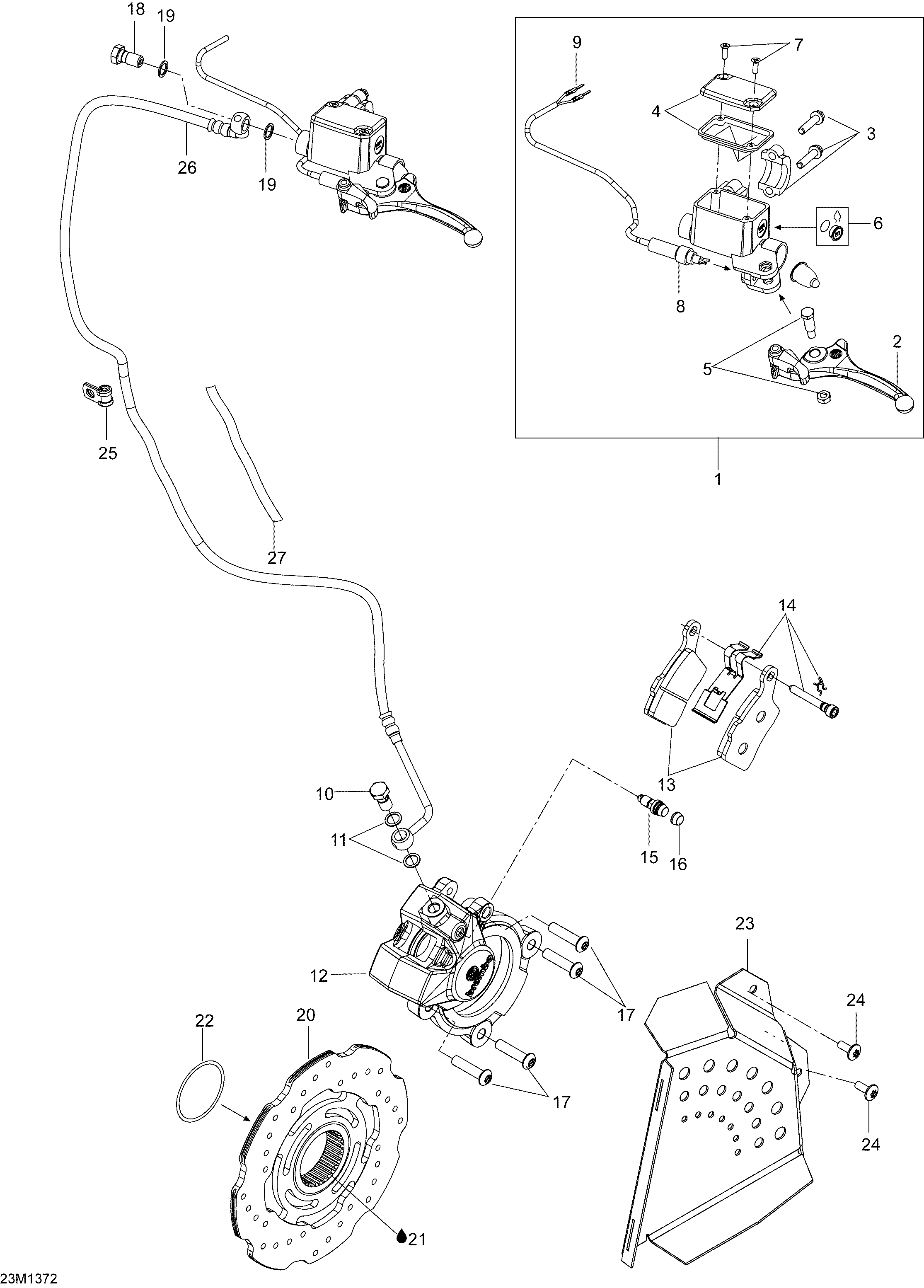

06- Brakes для BRP Ski-Doo EXPEDITION SE 600HOE, REV XU - 2013
-
№АртикулНазвание
-
1507032518 Master Cylinder Ass'yMaster Cylinder Ass'y
-
2507032476 LeverLever
-
3507032477 Clamp And Screw KitClamp And Screw Kit
-
4507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
5415030000 Pin Ass'yPin Ass'y
-
7216141260 Screw M4 X 12Screw M4 X 12
-
8507032479 MicroswitchMicroswitch
-
9515175232 Male TerminalMale Terminal
-
10507032539 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032498 Brake Caliper Ass'yBrake Caliper Ass'y
-
13507032489 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
17250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
18507032539 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
21293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
22293300134 O-RingO-Ring
-
23507032525 Disk ProtectorDisk Protector
-
24250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
25705600459 ClampClamp
-
26507032538 HoseHose
-
27409901800 Tubing 13 mmTubing 13 mm
