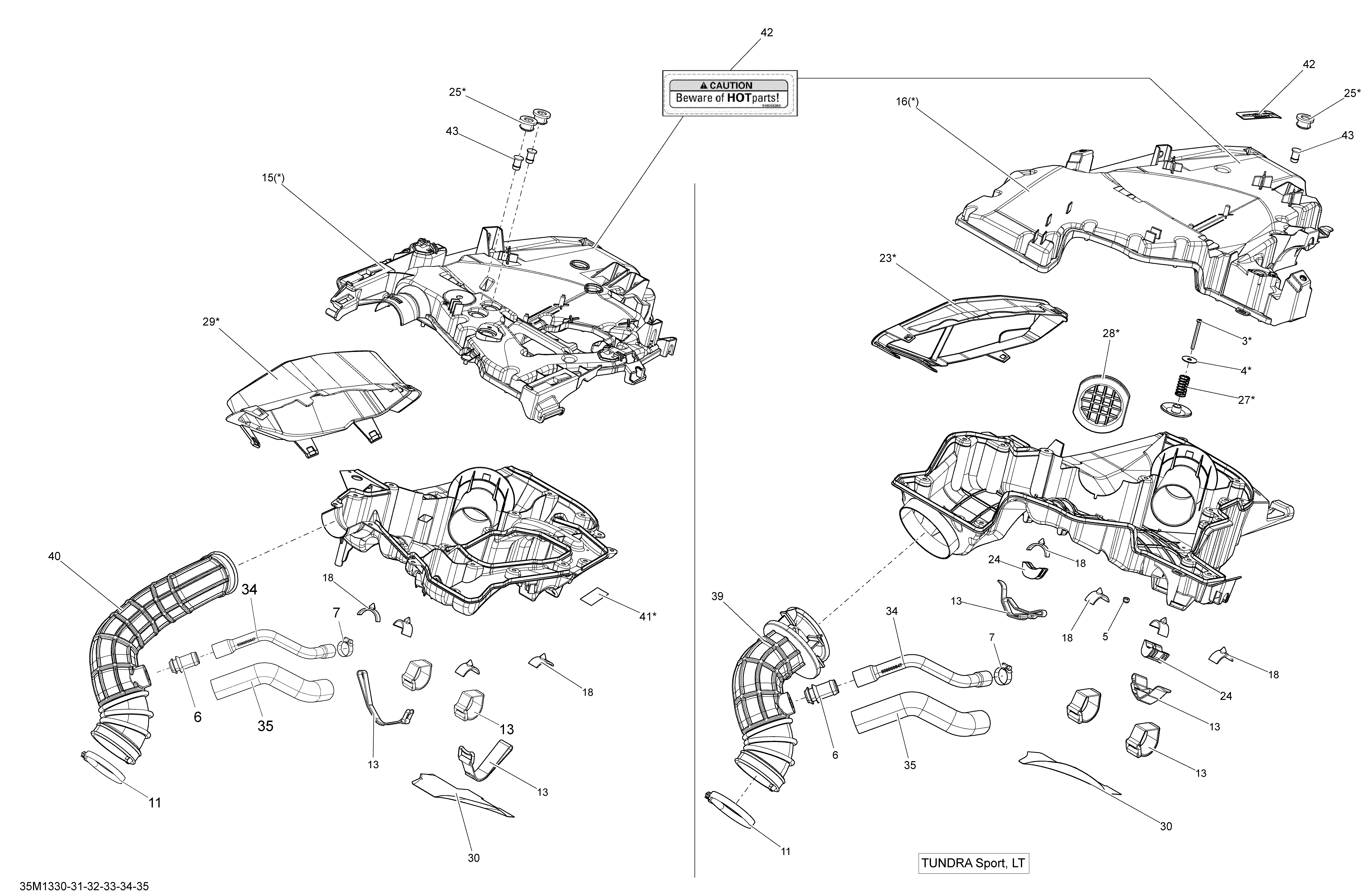

02- Air Intake System для BRP Ski-Doo EXPEDITION SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
6273000234 BreatherBreather
-
7293650172 Tridon Gear ClampTridon Gear Clamp
-
11293650212 GEMI ClampGEMI Clamp
-
13508000532 Velcro StripVelcro Strip
-
15(*)508000625 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
18508000537 StopperStopper
-
24508000572 BumperBumper
-
25*508000574 GrommetGrommet
-
29*508000595 Air Intake FilterAir Intake Filter
-
30508000622 Reflective SheetReflective Sheet
-
34508000647 Formed Vent HoseFormed Vent Hose
-
35508000648 Tube IsolatorTube Isolator
-
40508000717 Air Intake HoseAir Intake Hose
-
41*509000688 Reflective SheetReflective Sheet
-
42516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
43572092900 CapCap
