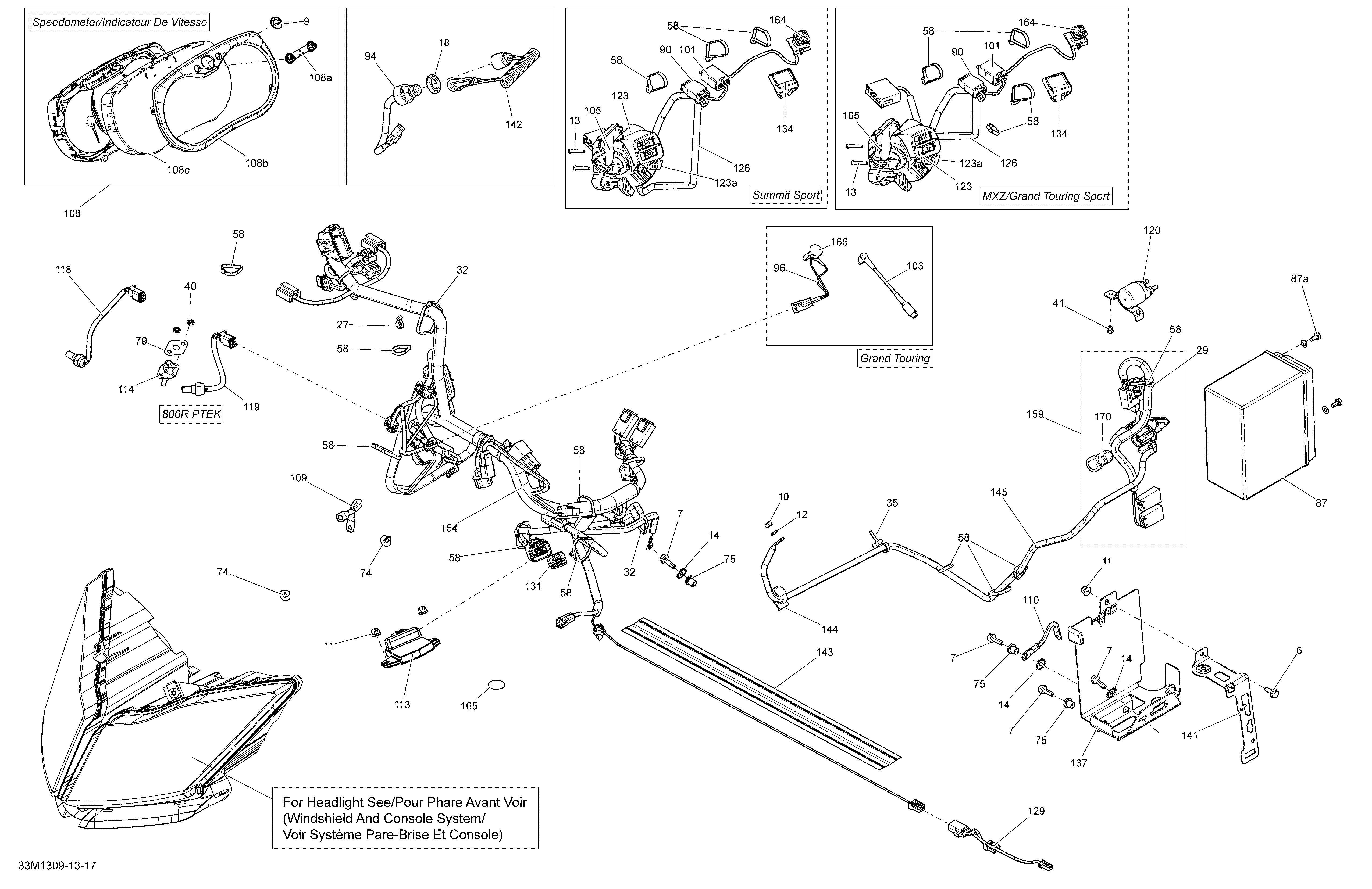

10- Electrical System для BRP Ski-Doo GRAND TOURING SPORT 600 XP - 2013
-
№АртикулНазвание
-
6207661644 Hex. Flanged Screw M6 X 16. With Electric StarterHex. Flanged Screw M6 X 16. With Electric Starter
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
10232561414 Elastic Stop Nut M6. With Electric StarterElastic Stop Nut M6. With Electric Starter
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12234061410 Flat Washer 6 mm. With Electric StarterFlat Washer 6 mm. With Electric Starter
-
13250000263 Torx Screw #8-18Torx Screw #8-18
-
14250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
18278000508 Safety Switch NutSafety Switch Nut
-
27293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
29293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
32293750008 Tie-Rap 350 mm. With Electric StarterTie-Rap 350 mm. With Electric Starter
-
35293750009 Tie-Rap 173 mm. With Electric StarterTie-Rap 173 mm. With Electric Starter
-
41390402200 Pop Rivet 3/16''. With Electric StarterPop Rivet 3/16''. With Electric Starter
-
58414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
74414644300 DartDart
-
75415107300 InsertInsert
-
87410301203 Battery Ass'y, 18 Amperes. With Electric StarterBattery Ass'y, 18 Amperes. With Electric Starter
-
87a295500849 Battery Fastener Kit. With Electric StarterBattery Fastener Kit. With Electric Starter
-
90515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
94515177249 DESS SwitchDESS Switch
-
96515177187 Visor Harness. Grand TouringVisor Harness. Grand Touring
-
101515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
103515175851 Extension. Grand TouringExtension. Grand Touring
-
105515175926 Housing Switch PlateHousing Switch Plate
-
108515177115 SpeedometerSpeedometer
-
109515177289 Fil de MasseFil de Masse
-
110515176358 Ground Wire. With Electric StarterGround Wire. With Electric Starter
-
113515176364 Voltage RegulatorVoltage Regulator
-
119515177472 Temperature Sensor. 600Temperature Sensor. 600
-
120515176501 Starter Relay. With Electric StarterStarter Relay. With Electric Starter
-
123515177022 LH HousingLH Housing
-
126515176995 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
129515176571 Junction HarnessJunction Harness
-
131515176681 LockLock
-
134515176825 Kill Switch SupportKill Switch Support
-
137515176886 Battery Support Ass'y. With Electric StarterBattery Support Ass'y. With Electric Starter
-
141515177008 Battery Strip. With Electric StarterBattery Strip. With Electric Starter
-
142515177057 DESS CapDESS Cap
-
144515177066 Clip. With Electric StarterClip. With Electric Starter
-
145515177067 Battery Wire. With Electric StarterBattery Wire. With Electric Starter
-
154515177095 main harness Ass'ymain harness Ass'y
-
159515177102 Electric Start Harness. With Electric StarterElectric Start Harness. With Electric Starter
-
164515177362 Kill SwitchKill Switch
-
165518325560 Adhesive PatchAdhesive Patch
-
166572103300 Cap. Grand TouringCap. Grand Touring
-
170710000495 Protector Cap. With Electric StarterProtector Cap. With Electric Starter
-
108a415129355 Speedometer ButtonSpeedometer Button
-
108b415129370 Gauge RingGauge Ring
-
108c415129349 LensLens
-
123a515176088 Start/RER ButtonStart/RER Button
