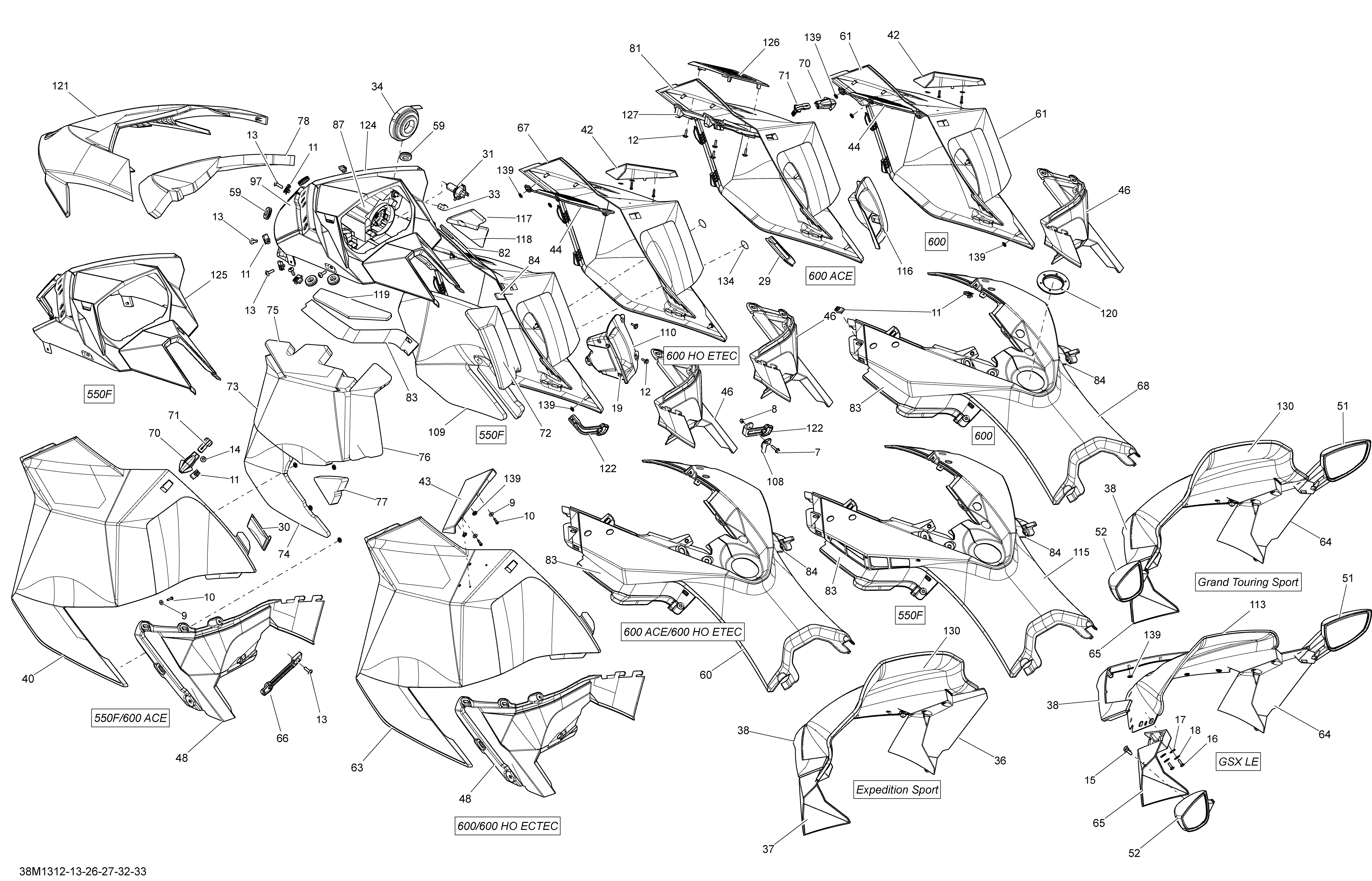

09- Hood, Windshield And Console для BRP Ski-Doo GSX LE 600HOE XP - 2013
-
№АртикулНазвание
-
7250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
8233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
9234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
10241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
13250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
16250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
17250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
18250200025 Washer M5Washer M5
-
19275500241 Black CapBlack Cap
-
29513033471 RH Panel ClipRH Panel Clip
-
30513033472 LH Panel ClipLH Panel Clip
-
31515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
33515176498 CapCap
-
34515176499 CoverCover
-
36517303604 RH Air DeflectorRH Air Deflector
-
37517303605 LH Air DeflectorLH Air Deflector
-
38517303607 Windshield SupportWindshield Support
-
40517304030 Deep Black LH PanelDeep Black LH Panel
-
42517303615 Black RH Air DeflectorBlack RH Air Deflector
-
43517303616 Black LH Air DeflectorBlack LH Air Deflector
-
44517303622 GrillGrill
-
46517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
48517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
51517305100 RH Mirror Ass'yRH Mirror Ass'y
-
52517305101 LH Mirror Ass'yLH Mirror Ass'y
-
59517303756 GrommetGrommet
-
60517304412 White Console. 600 HO ETECWhite Console. 600 HO ETEC
-
60517305278 White Console. 600 ACEWhite Console. 600 ACE
-
61517304121 Deep Black RH PanelDeep Black RH Panel
-
63517304120 Deep Black LH PanelDeep Black LH Panel
-
64517303791 RH Air DeflectorRH Air Deflector
-
65517303792 LH Air DeflectorLH Air Deflector
-
66517303808 LH Panel LatchLH Panel Latch
-
67517304211 Deep Black RH PanelDeep Black RH Panel
-
68517305275 White ConsoleWhite Console
-
70860200239 Black Latch KitBlack Latch Kit
-
71517303981 Panel LatchPanel Latch
-
72517304884 RH Panel Rear FoamRH Panel Rear Foam
-
73517304887 LH Panel Center FoamLH Panel Center Foam
-
74517304888 LH Panel Lower FoamLH Panel Lower Foam
-
75517304889 LH Panel Upper FoamLH Panel Upper Foam
-
76517304890 LH Panel Rear FoamLH Panel Rear Foam
-
77517304891 FoamFoam
-
78517304913 Hood FoamHood Foam
-
81517304029 Deep Black RH PanelDeep Black RH Panel
-
82517304103 RH DecalRH Decal
-
83517304104 LH DecalLH Decal
-
84517304105 Console DecalConsole Decal
-
87517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
97517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
108517304221 Latch SupportLatch Support
-
109517304883 RH Center FoamRH Center Foam
-
110517304322 Black RH ConsoleBlack RH Console
-
113860200478 Windsheld Kit 375Windsheld Kit 375
-
113517304395 Windsheld 375mmWindsheld 375mm
-
115517305274 White ConsoleWhite Console
-
116517304500 Black RH ConsoleBlack RH Console
-
117517304885 FoamFoam
-
118517304886 FoamFoam
-
119517304882 FoamFoam
-
120517304518 Console NutConsole Nut
-
121517304492 White Hood. White Model SportWhite Hood. White Model Sport
-
121517304530 Deep Black Hood. Black ModelDeep Black Hood. Black Model
-
121517304531 White Hood. White Model 600 ETECWhite Hood. White Model 600 ETEC
-
122517303612 RH Panel LatchRH Panel Latch
-
122517304551 Panel Latch. 600 ACEPanel Latch. 600 ACE
-
124517304575 Gauge Support. 600/600 ACEGauge Support. 600/600 ACE
-
124517304576 Gauge Support. 600 HO ETECGauge Support. 600 HO ETEC
-
125517304578 Gauge Support. 550FGauge Support. 550F
-
126517304763 External GrillExternal Grill
-
127517304764 Internal GrillInternal Grill
-
130517304766 Windshield 450Windshield 450
-
134518325560 Adhesive PatchAdhesive Patch
-
139732610072 Push NutPush Nut
