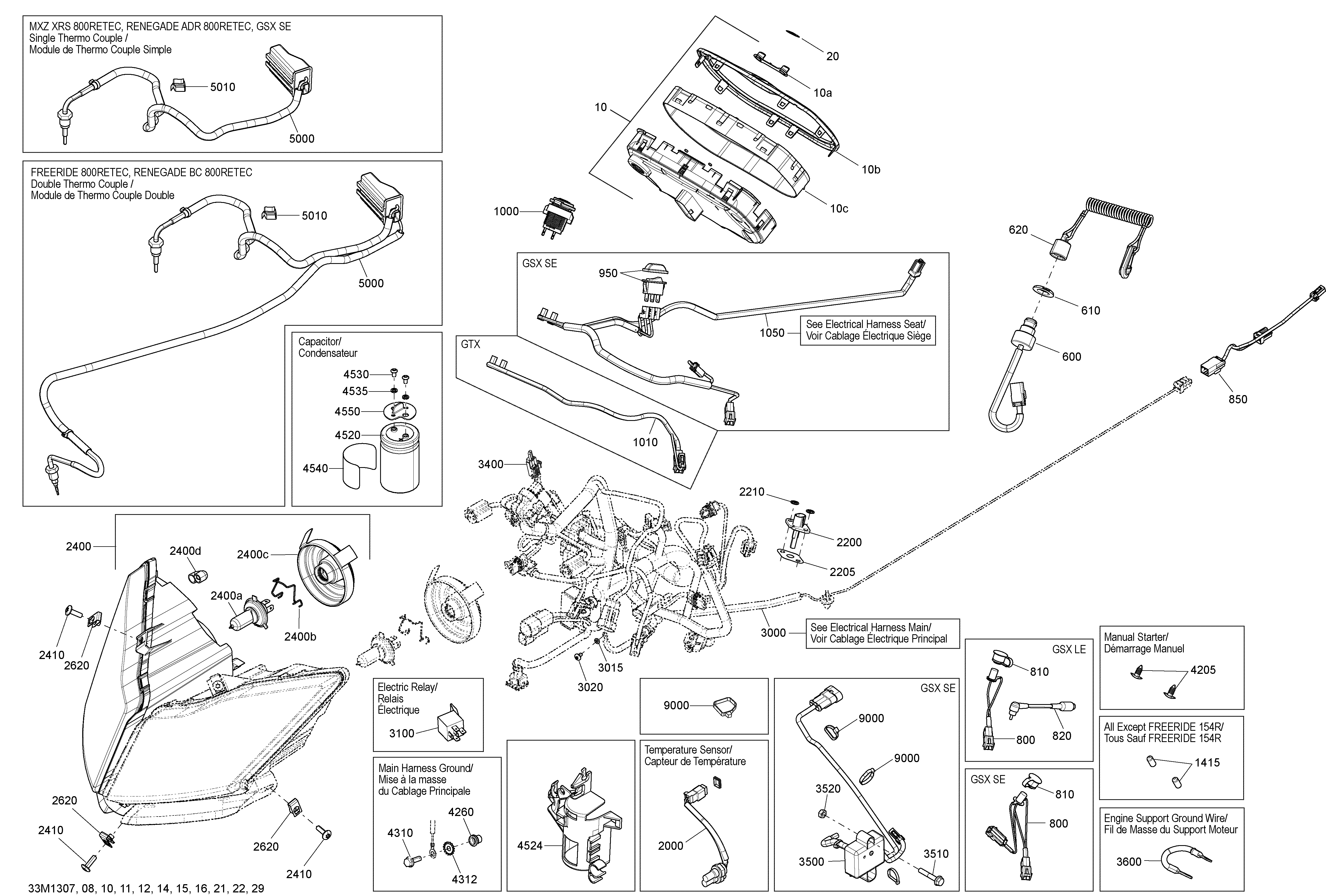

10- Electrical System для BRP Ski-Doo GSX SE 800RE XR - 2013
-
№АртикулНазвание
-
10515177421 Speedometer. GSXSpeedometer. GSX
-
10a415129355 Speedometer Button. GSXSpeedometer Button. GSX
-
10b415129348 Gauge Ring. GSXGauge Ring. GSX
-
10c415129349 Lens. GSXLens. GSX
-
20219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
600515177249 DESS SwitchDESS Switch
-
610278000508 Safety Switch NutSafety Switch Nut
-
620515177057 DESS CapDESS Cap
-
800515177187 Visor Harness. GSXVisor Harness. GSX
-
810572103300 Cap. GSXCap. GSX
-
820515175851 ExtensionExtension
-
950515176844 Rocker Switch Ass'y. SERocker Switch Ass'y. SE
-
1000710001248 Outlet DC. GSXOutlet DC. GSX
-
1050515177189 Seat Harness. SESeat Harness. SE
-
2000515177471 Temperature SensorTemperature Sensor
-
2200515176366 Air Temperature SensorAir Temperature Sensor
-
2205508000769 SealSeal
-
2210389804300 Push NutPush Nut
-
2400517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
2400517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
2400a515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400c515176499 CoverCover
-
2400d515176498 CapCap
-
2410250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
2420250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
3000515177383 Frame Harness. 600HOE SEFrame Harness. 600HOE SE
-
3000515177385 Frame Harness. 800RE SEFrame Harness. 800RE SE
-
3015234141601 Lock Washer 4 mm. 800RELock Washer 4 mm. 800RE
-
3020250000127 Torx Screw M4 X 8. 800RETorx Screw M4 X 8. 800RE
-
3100515177041 Relay. Electric StarterRelay. Electric Starter
-
3400515176661 Manual Start Harness. Manual StarterManual Start Harness. Manual Starter
-
3500515177234 Compressor Module. SECompressor Module. SE
-
3510207663544 Hex. Flanged Screw M6 X 35. SEHex. Flanged Screw M6 X 35. SE
-
3515234061410 Flat Washer 6 mm. SEFlat Washer 6 mm. SE
-
3520232561414 Elastic Stop Nut M6. SEElastic Stop Nut M6. SE
-
3600515177289 Fil de MasseFil de Masse
-
4205414644300 Dart. Manual StarterDart. Manual Starter
-
4260415107300 InsertInsert
-
4260415107300 Insert. Electric StarterInsert. Electric Starter
-
4310207662044 Hex. Flanged Screw M6 X 20. Electric StarterHex. Flanged Screw M6 X 20. Electric Starter
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4312250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4520515177272 CapacitorCapacitor
-
4524515176607 Capacitor SupportCapacitor Support
-
4530250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
4535250200026 Lock washerLock washer
-
4540516005515 Capacitor Decal (English)Capacitor Decal (English)
-
4550515177193 CapCap
-
5000515177473 Single Thermo Couple Module. 800RE SESingle Thermo Couple Module. 800RE SE
-
5010414227300 Clip. 800REClip. 800RE
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
