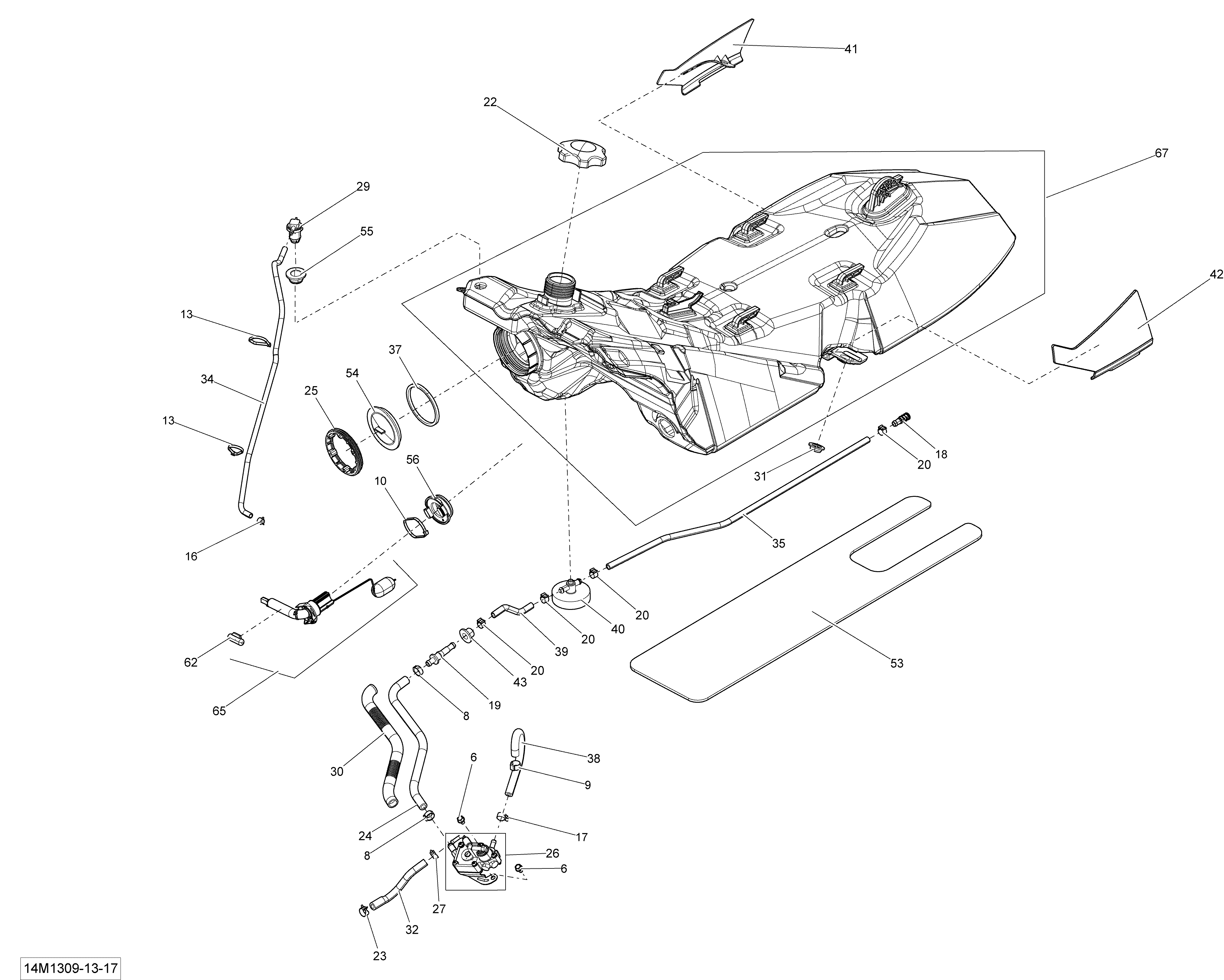

02- Fuel System для BRP Ski-Doo MXZ SPORT 600 XP - 2013
-
№АртикулНазвание
-
6210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
8293650053 Crimp ClampCrimp Clamp
-
9293650125 Oetiker ClampOetiker Clamp
-
10293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16414554800 Spring ClampSpring Clamp
-
17414655700 Spring ClampSpring Clamp
-
18414872100 Fuel FilterFuel Filter
-
19414872700 Male ConnectorMale Connector
-
20513033010 Norma Spring ClampNorma Spring Clamp
-
22513033720 Fuel Tank Cap. OCTANE 87Fuel Tank Cap. OCTANE 87
-
22513033721 Fuel Tank Cap. OCTANE 92Fuel Tank Cap. OCTANE 92
-
22513033722 Fuel Tank Cap. OCTANE 91Fuel Tank Cap. OCTANE 91
-
22513033723 Fuel Tank Cap. OCTANE 95Fuel Tank Cap. OCTANE 95
-
23513033029 Universal Spring ClampUniversal Spring Clamp
-
24513033165 HoseHose
-
26513033184 Fuel PumpFuel Pump
-
27414415200 Universal Spring ClampUniversal Spring Clamp
-
29513033188 Check ValveCheck Valve
-
30415080000 Tubing 16 mmTubing 16 mm
-
31513033326 Shoulder BushingShoulder Bushing
-
32513033327 HoseHose
-
34415080200 Hose, PolyurethaneHose, Polyurethane
-
35513033332 HoseHose
-
38513033343 HoseHose
-
41513033418 RH CapRH Cap
-
42513033419 LH CapLH Cap
-
43513033435 GrommetGrommet
-
53513033588 Insulating FoamInsulating Foam
-
55513033596 GrommetGrommet
-
56513033606 GrommetGrommet
-
62710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
65513033642 Fuel Level Sensor Ass'yFuel Level Sensor Ass'y
-
67513033695 Fuel Tank Ass'yFuel Tank Ass'y
