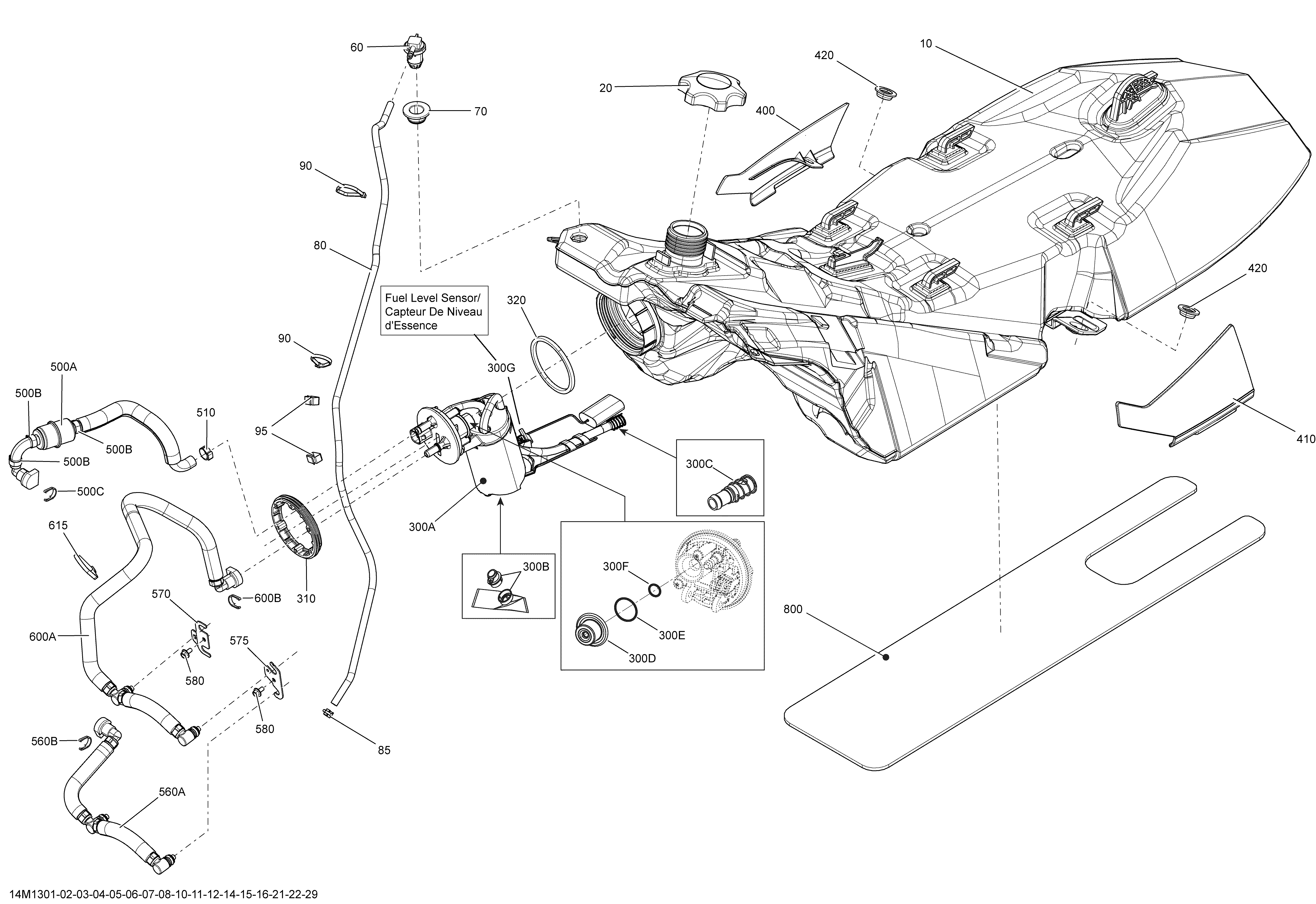

02- Fuel System для BRP Ski-Doo MXZ TNT 800RETEC XS - 2013
-
№АртикулНазвание
-
10513033667 Fuel TankFuel Tank
-
20513033722 Fuel Tank CapFuel Tank Cap
-
60513033188 Check ValveCheck Valve
-
70513033596 GrommetGrommet
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
85414554800 Spring ClampSpring Clamp
-
90293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
300a513033650 Fuel Pump Module Ass'y. Includes 300A to 300GFuel Pump Module Ass'y. Includes 300A to 300G
-
300b415129451 Fuel FilterFuel Filter
-
300c414872100 Fuel FilterFuel Filter
-
300d415129821 RegulatorRegulator
-
300e415129822 O-RingO-Ring
-
300f415129823 O-RingO-Ring
-
300g415129671 Fuel Level SensorFuel Level Sensor
-
310513033180 RingRing
-
320513033334 GasketGasket
-
400513033418 RH CapRH Cap
-
410513033419 LH CapLH Cap
-
420513033326 Shoulder BushingShoulder Bushing
-
500a513033715 Fuel Hose Ass'y. Includes 500A to 500CFuel Hose Ass'y. Includes 500A to 500C
-
500a513033719 Filter. Filter OnlyFilter. Filter Only
-
500b293650125 Oetiker ClampOetiker Clamp
-
500c513033135 Locking ClipLocking Clip
-
510293650053 Crimp ClampCrimp Clamp
-
560a513033594 Hose Ass'y. Includes 560A to 560BHose Ass'y. Includes 560A to 560B
-
560b513033135 Locking ClipLocking Clip
-
570513033542 BracketBracket
-
575513033593 BracketBracket
-
580207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
600a513033648 Fuel Hose Ass'y. Includes 600A to 600BFuel Hose Ass'y. Includes 600A to 600B
-
600b513033135 Locking ClipLocking Clip
-
615414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
800513033588 Insulating FoamInsulating Foam
