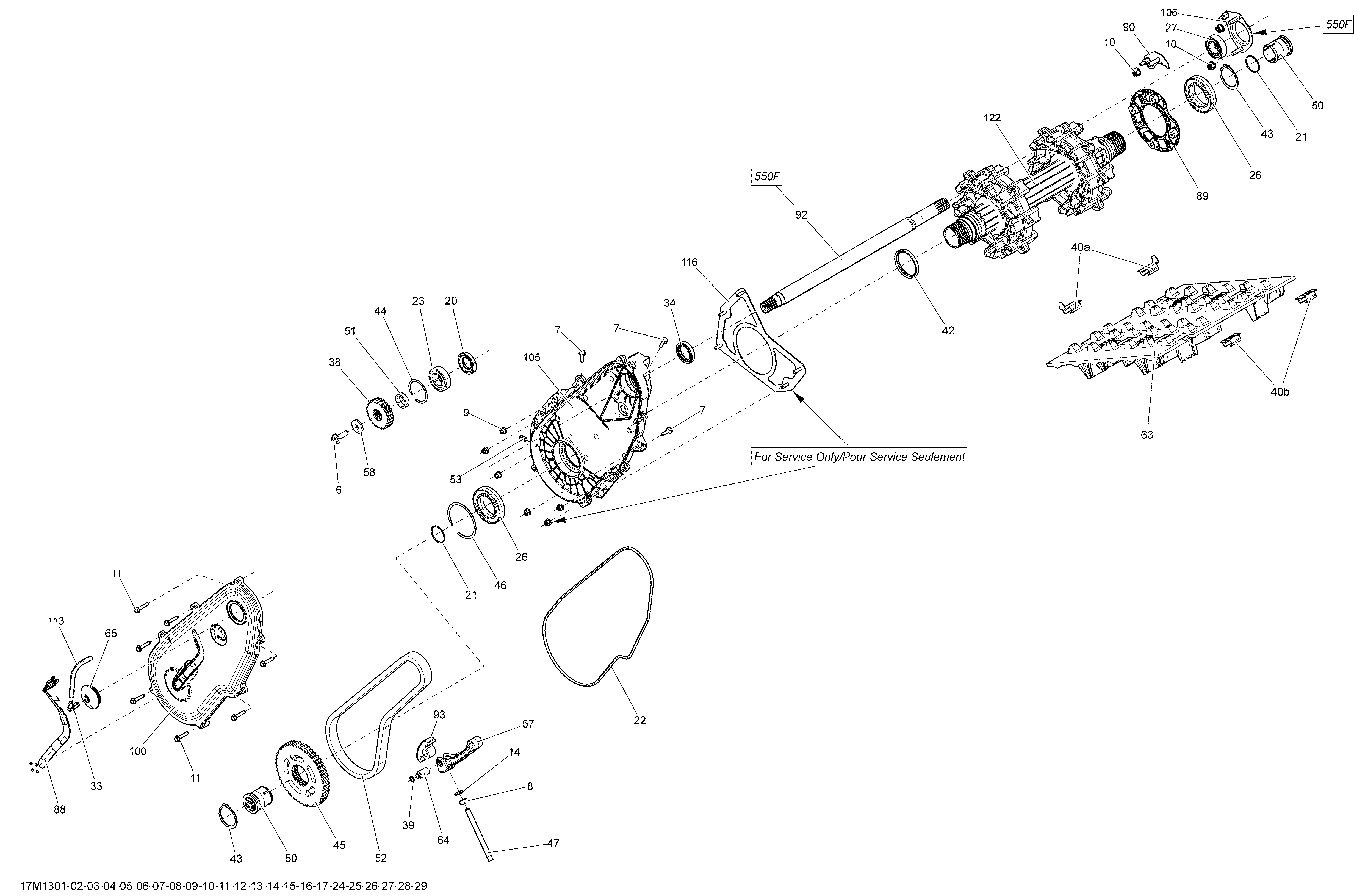

05- Drive System для BRP Ski-Doo MXZ X 800RE XS - 2013
-
№АртикулНазвание
-
6207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
7207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8232006414 Hex. Nut M10Hex. Nut M10
-
9233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11210263080 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
14250200100 Bonded WasherBonded Washer
-
21293300122 O-RingO-Ring
-
22293300130 O-RingO-Ring
-
23293350055 Ball BearingBall Bearing
-
26293350059 Ball BearingBall Bearing
-
27293350074 Ball BearingBall Bearing
-
33414580700 Male ConnectorMale Connector
-
34415049300 Oil SealOil Seal
-
38504084300 Sprocket, 25 Teeth (Large). 600 HO ETECSprocket, 25 Teeth (Large). 600 HO ETEC
-
38504148400 Sprocket, 27 Teeth. 800R ETECSprocket, 27 Teeth. 800R ETEC
-
39504152282 CirclipCirclip
-
42504152571 SealSeal
-
43504152572 CirclipCirclip
-
44504152576 CirclipCirclip
-
45504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
46504152582 CirclipCirclip
-
47504152602 Adjustment ScrewAdjustment Screw
-
50504152619 Magnetic CapMagnetic Cap
-
51504152628 ShimShim
-
52504152629 Drive Chain, 104 Links. 600 HO ETECDrive Chain, 104 Links. 600 HO ETEC
-
52504152630 Drive Chain, 106 Links. 800R ETECDrive Chain, 106 Links. 800R ETEC
-
53504152854 Magnetic PlugMagnetic Plug
-
57504152685 Chain TensionerChain Tensioner
-
58504152784 Spring Washer M10Spring Washer M10
-
63504152606 Track Ass'y 15X120X1.2RSTrack Ass'y 15X120X1.2RS
-
63504153100 Track Ass'y 15X120X1.25IRTrack Ass'y 15X120X1.25IR
-
64504152841 Tensionner AxleTensionner Axle
-
65504152860 CapCap
-
88504152896 SensorSensor
-
89504152949 Housing BearingHousing Bearing
-
90504152974 Bearing HousingBearing Housing
-
93504153031 Slider Chain Ass'y. 600 HO ETECSlider Chain Ass'y. 600 HO ETEC
-
93504152739 Slider Chain. 800R ETECSlider Chain. 800R ETEC
-
100504153146 Chaincase Cover Ass'yChaincase Cover Ass'y
-
105504153180 ChaincaseChaincase
-
113415080200 Hose, PolyurethaneHose, Polyurethane
-
116518325816 PlatePlate
-
122504153083 Drive Axle Ass'yDrive Axle Ass'y
-
40a415129528 Track GuideTrack Guide
-
40b504152651 CleatCleat
-
40b415129529 Cleat. TR15X120X1.2IRCleat. TR15X120X1.2IR
