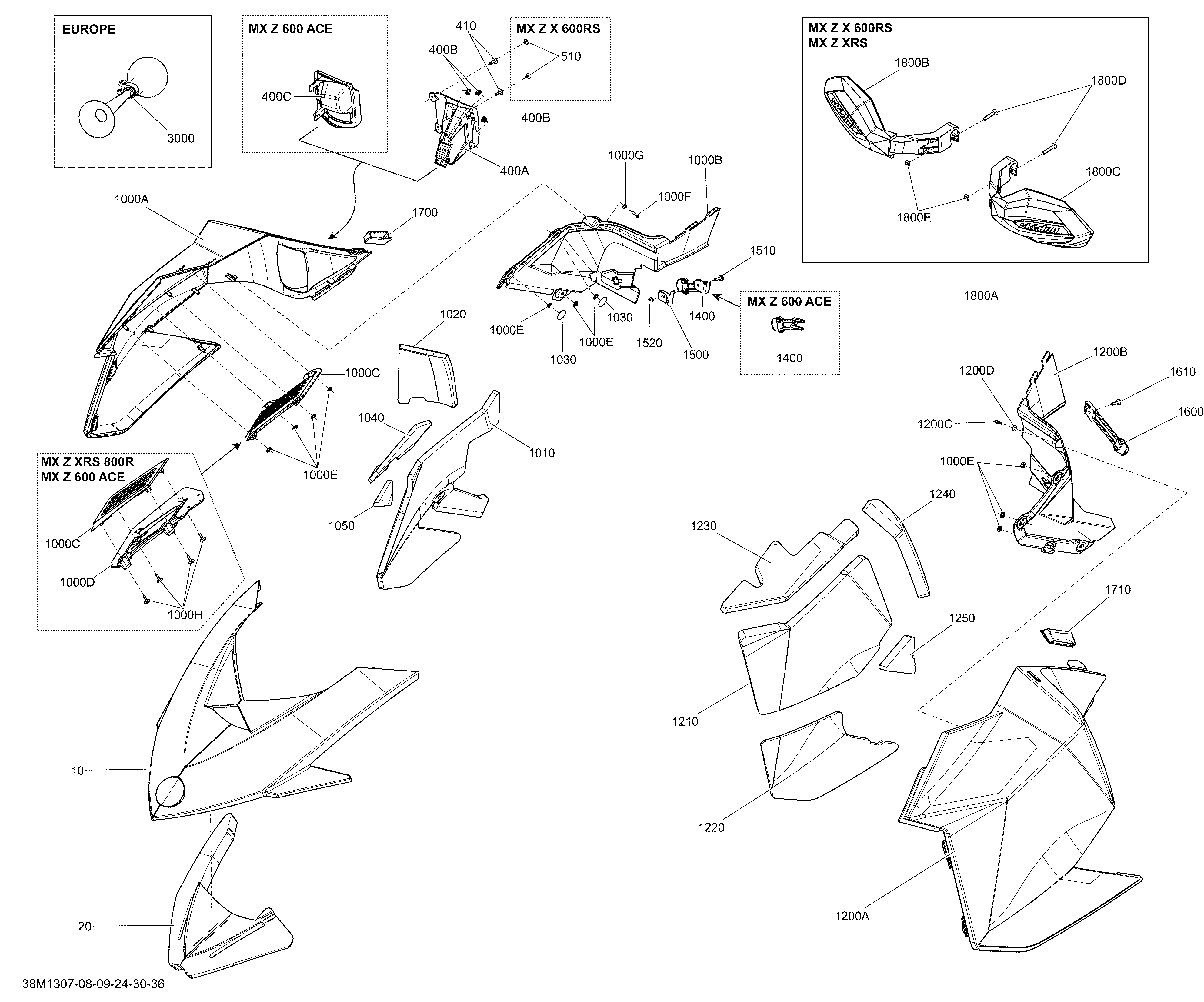

09- Hood для BRP Ski-Doo MXZ XRS 800RE XP - 2013
-
№АртикулНазвание
-
10517304530 HoodHood
-
20517304913 Hood FoamHood Foam
-
400a517304322 RH Console. Includes 400A to 400BRH Console. Includes 400A to 400B
-
400b275500241 Cap, BlackCap, Black
-
410250000113 Screw M4 X 16, Type K-40. Manual Start ModelsScrew M4 X 16, Type K-40. Manual Start Models
-
1000a517304029 RH Panel. Manual Start ModelsRH Panel. Manual Start Models
-
1000a517304210 RH Panel. Electric Start ModelsRH Panel. Electric Start Models
-
1000b517303671 RH Moulding PanelRH Moulding Panel
-
1000c517303622 Grill. 600HOGrill. 600HO
-
1000c517304763 External Grill. 800RExternal Grill. 800R
-
1000d517304764 Internal Grill. 800RInternal Grill. 800R
-
1000e732610072 Push Nut. 600HOPush Nut. 600HO
-
1000e732610072 Push Nut. 800RPush Nut. 800R
-
1000f241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
1000g234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
1000h250000113 Screw M4 X 16, Type K-40. 800RScrew M4 X 16, Type K-40. 800R
-
1010517304883 RH Center FoamRH Center Foam
-
1020517304884 RH Panel Rear FoamRH Panel Rear Foam
-
1030518325560 Adhesive PatchAdhesive Patch
-
1200a517304030 LH PanelLH Panel
-
1200b517303673 LH Moulding PanelLH Moulding Panel
-
1200c241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
1200d234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
1210517304887 LH Panel Center FoamLH Panel Center Foam
-
1220517304888 LH Panel Lower FoamLH Panel Lower Foam
-
1230517304889 LH Panel Upper FoamLH Panel Upper Foam
-
1240517304890 LH Panel Rear FoamLH Panel Rear Foam
-
1250517304891 FoamFoam
-
1400517303612 RH Panel LatchRH Panel Latch
-
1500517304221 Latch SupportLatch Support
-
1510250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
1520233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
1700513033471 RH Panel ClipRH Panel Clip
-
1710513033472 LH Panel ClipLH Panel Clip
-
1800a860200712 Wind Deflector Kit, Grey. Includes 1800A to 1800EWind Deflector Kit, Grey. Includes 1800A to 1800E
-
1800b517305039 RH Wind Deflector, GreyRH Wind Deflector, Grey
-
1800c517305040 LH Wind Deflector, GreyLH Wind Deflector, Grey
-
1800d250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
1800e250000498 Square Nut M6Square Nut M6
-
3000549011291 Horn. EuropeHorn. Europe
