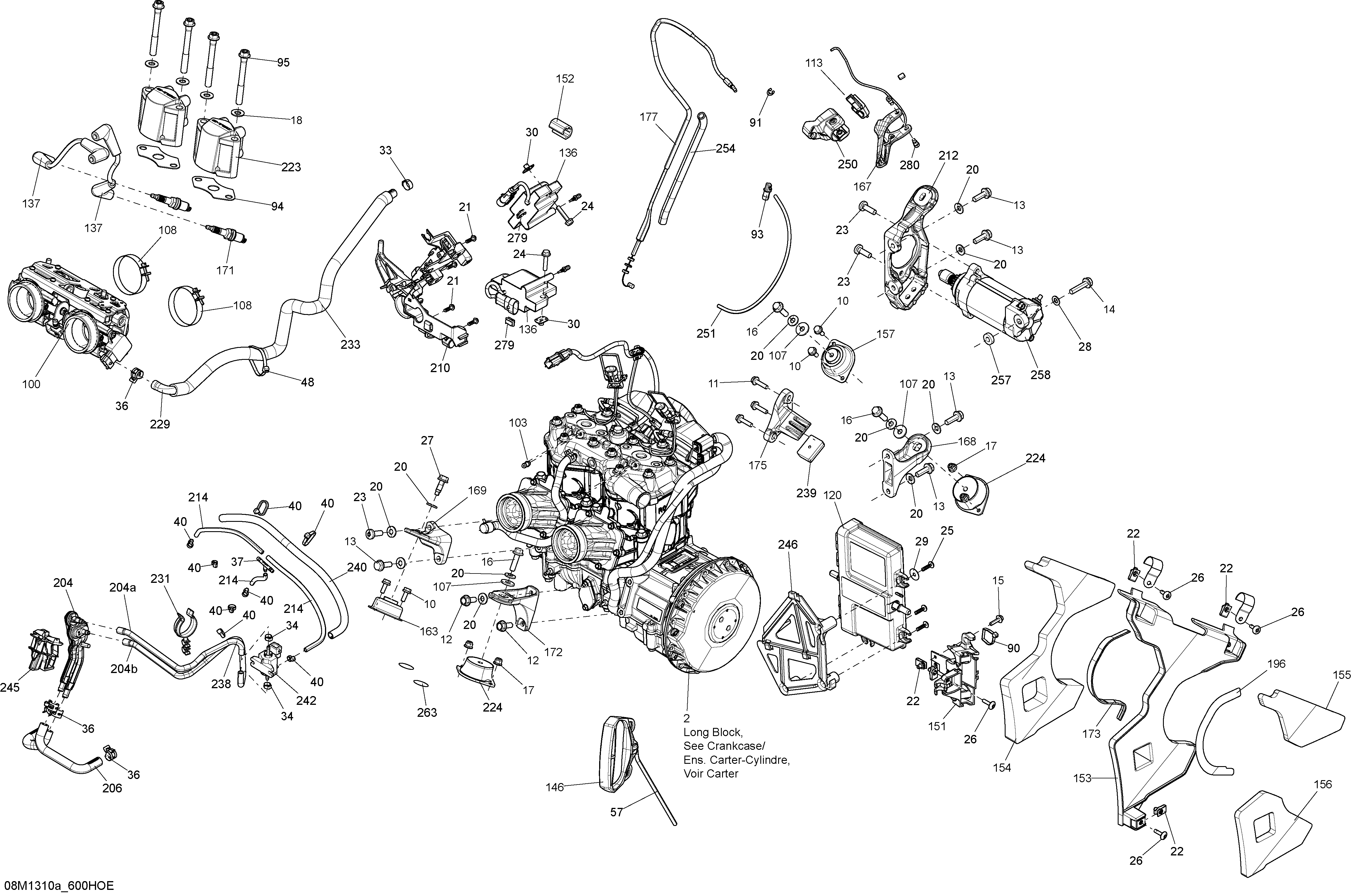

01- Engine And Engine Support 600 для BRP Ski-Doo RENEGADE ADRENALINE 600HOE - 2013
-
№АртикулНазвание
-
10207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
11207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
12207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
13207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
14207583544 Hex Flanged Screw M8 X 35, Scotch Grip. DELEHex Flanged Screw M8 X 35, Scotch Grip. DELE
-
15207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
16207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18234001410 Flat Washer 10 mmFlat Washer 10 mm
-
20250200146 Conical Spring Washer M8Conical Spring Washer M8
-
21241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
22250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
23250000248 Torx Screw M8 X 25, Scotch Grip. DELETorx Screw M8 X 25, Scotch Grip. DELE
-
23250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
24250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
25250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
26250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
27250000570 Hex. Screw M8Hex. Screw M8
-
28250200008 Flat Washer With Teflon 8 mm. DELEFlat Washer With Teflon 8 mm. DELE
-
29250200040 Flat WasherFlat Washer
-
30293100003 Nut M6Nut M6
-
33293650046 Oetiker ClampOetiker Clamp
-
34293650043 ClipClip
-
36293650214 Norma Spring ClampNorma Spring Clamp
-
37293710068 T-FittingT-Fitting
-
40293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
48293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
90414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
91414274500 CirclipCirclip
-
93414814100 Male ConnectorMale Connector
-
94420430930 GasketGasket
-
95420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
100420889197 Throttle Body. 600HOEThrottle Body. 600HOE
-
103420924724 Hose NippleHose Nipple
-
107503183200 Washer, YellowWasher, Yellow
-
108293650158 Gemi Clamp. 600HOEGemi Clamp. 600HOE
-
113512060859 Upper Housing. Except FREERIDE, Except XRSUpper Housing. Except FREERIDE, Except XRS
-
120512060868 Calibrated Module 600 E-TEC. 600HOECalibrated Module 600 E-TEC. 600HOE
-
136512060810 Ignition CoilIgnition Coil
-
137512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
146512060136 Starter Grip. DMANStarter Grip. DMAN
-
151512060298 Solenoid SupportSolenoid Support
-
152512060313 ProtectorProtector
-
153512060339 Noise Shield. Except XTREMNoise Shield. Except XTREM
-
154512060343 Interior Noise FoamInterior Noise Foam
-
155512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
156512060362 Lower Exterior Noise Foam. Except XTREMLower Exterior Noise Foam. Except XTREM
-
157512060387 Rubber MountRubber Mount
-
163512060448 Rubber MountRubber Mount
-
168512060469 Front Support, MAGFront Support, MAG
-
169512060478 Rear Support, PTORear Support, PTO
-
171415129375 Spark Plug. 600HOESpark Plug. 600HOE
-
172512060559 Rear Support, MAGRear Support, MAG
-
173512060574 Heat ShieldHeat Shield
-
175512060576 Stopper SupportStopper Support
-
177512060611 Throttle Cable. REN ADRThrottle Cable. REN ADR
-
196512060575 Heat Shield. Except XTREMHeat Shield. Except XTREM
-
204512060692 ManifoldManifold
-
204a512060814 SpringSpring
-
204b512060807 SpringSpring
-
206512060695 LH Formed HoseLH Formed Hose
-
206512060694 RH Formed HoseRH Formed Hose
-
210512060696 Support CoilsSupport Coils
-
212512060699 Front Support, PTO. 600HOEFront Support, PTO. 600HOE
-
214270000374 Hose 4.3 mmHose 4.3 mm
-
223512060727 Fuel Injector Ass'y. 600HOEFuel Injector Ass'y. 600HOE
-
224512060729 Rubber MountRubber Mount
-
229512060740 Formed Hose, Output. 600HOEFormed Hose, Output. 600HOE
-
231512060762 Hose SupportHose Support
-
233415080000 Tubing 16 mmTubing 16 mm
-
238415080200 Hose, PolyurethaneHose, Polyurethane
-
239512060627 Stopper. Except SUM, Except FREEStopper. Except SUM, Except FREE
-
240415079900 Tubing 10 mmTubing 10 mm
-
242512060774 Solenoid ValveSolenoid Valve
-
245512060769 Manifold Support. 600HOEManifold Support. 600HOE
-
246512060858 Calibrated Module SupportCalibrated Module Support
-
250512060860 Lower Housing. Except FREERIDE, Except XRSLower Housing. Except FREERIDE, Except XRS
-
251415080100 LineLine
-
254409901700 Tubing 9 mmTubing 9 mm
-
257515176500 Washer. 600HOE DELEWasher. 600HOE DELE
-
258515177389 Starter. DELEStarter. DELE
-
263518325560 Adhesive PatchAdhesive Patch
-
279710000992 ClipClip
-
280732601143 Flanged ScrewFlanged Screw
