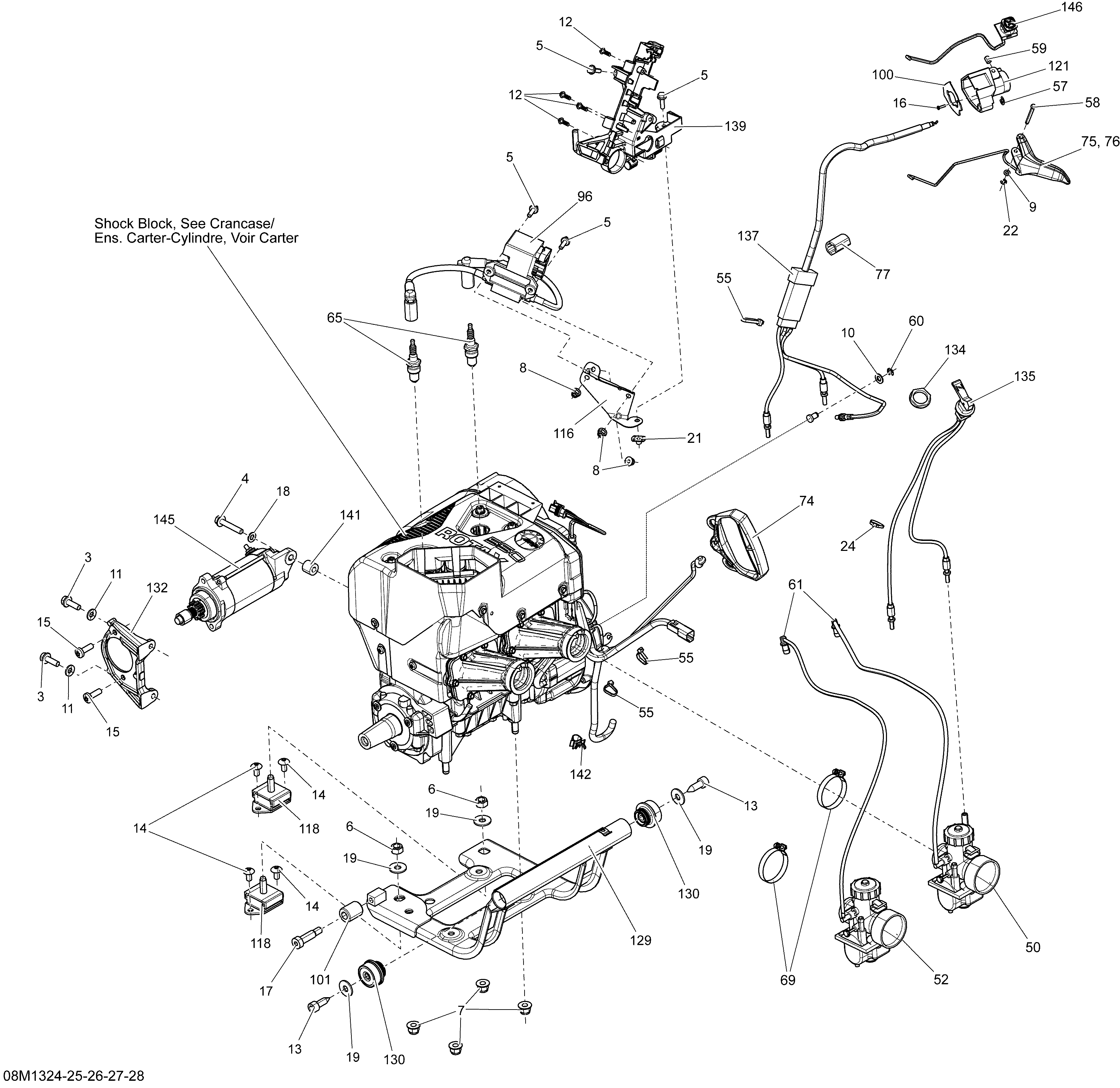

01- Engine And Engine Support для BRP Ski-Doo RENEGADE SPORT 550F XP - 2013
-
№АртикулНазвание
-
3207582586 Hex. Flanged Screw M8 X 25, Scotch Grip. Electric StartHex. Flanged Screw M8 X 25, Scotch Grip. Electric Start
-
4207584544 Hex. Flanged Screw M8 X 45, Scotch Grip. Electric StartHex. Flanged Screw M8 X 45, Scotch Grip. Electric Start
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
7233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
11250200146 Conical Spring Washer M8. Electric StartConical Spring Washer M8. Electric Start
-
12241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
13250000094 Screw M10 X 30Screw M10 X 30
-
14250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
15250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
16250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
17250000463 Socket Head Screw, Scotch GripSocket Head Screw, Scotch Grip
-
18250200008 Flat Washer With Teflon 8 mm. Electric StartFlat Washer With Teflon 8 mm. Electric Start
-
19250200014 Flat WasherFlat Washer
-
21293100003 Nut M6Nut M6
-
22293370050 CirclipCirclip
-
24293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
50403138813 Carburetor VM30-218, MAGCarburetor VM30-218, MAG
-
52403138814 Carburetor VM30-219, PTOCarburetor VM30-219, PTO
-
55414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
57414274500 CirclipCirclip
-
58414438700 Lever PinLever Pin
-
59414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
60414753500 CirclipCirclip
-
61414814100 Male ConnectorMale Connector
-
65512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
69512059834 Gemi ClampGemi Clamp
-
74512060136 Starter GripStarter Grip
-
75512060307 Handle Ass'y. Includes 75 to 76Handle Ass'y. Includes 75 to 76
-
76515175232 Male TerminalMale Terminal
-
77512060313 ProtectorProtector
-
96512060324 Calibrated ModuleCalibrated Module
-
100512060390 PlatePlate
-
101512060395 StopperStopper
-
116512060460 Support CoilsSupport Coils
-
118512060564 Rubber MountRubber Mount
-
121512060603 Throttle HousingThrottle Housing
-
129512060637 Engine Support Ass'y. Includes 129 to 130Engine Support Ass'y. Includes 129 to 130
-
130512059691 Rubber MountRubber Mount
-
132512060656 Support. Electric StartSupport. Electric Start
-
134512060671 Plastic NutPlastic Nut
-
135512060674 Choke CableChoke Cable
-
137512060689 Throttle CableThrottle Cable
-
139512060745 Coils SupportCoils Support
-
141515176597 Spacer. Electric StartSpacer. Electric Start
-
142515176795 ClipClip
-
145515177389 Starter. Electric StartStarter. Electric Start
-
146515177362 Kill SwitchKill Switch
