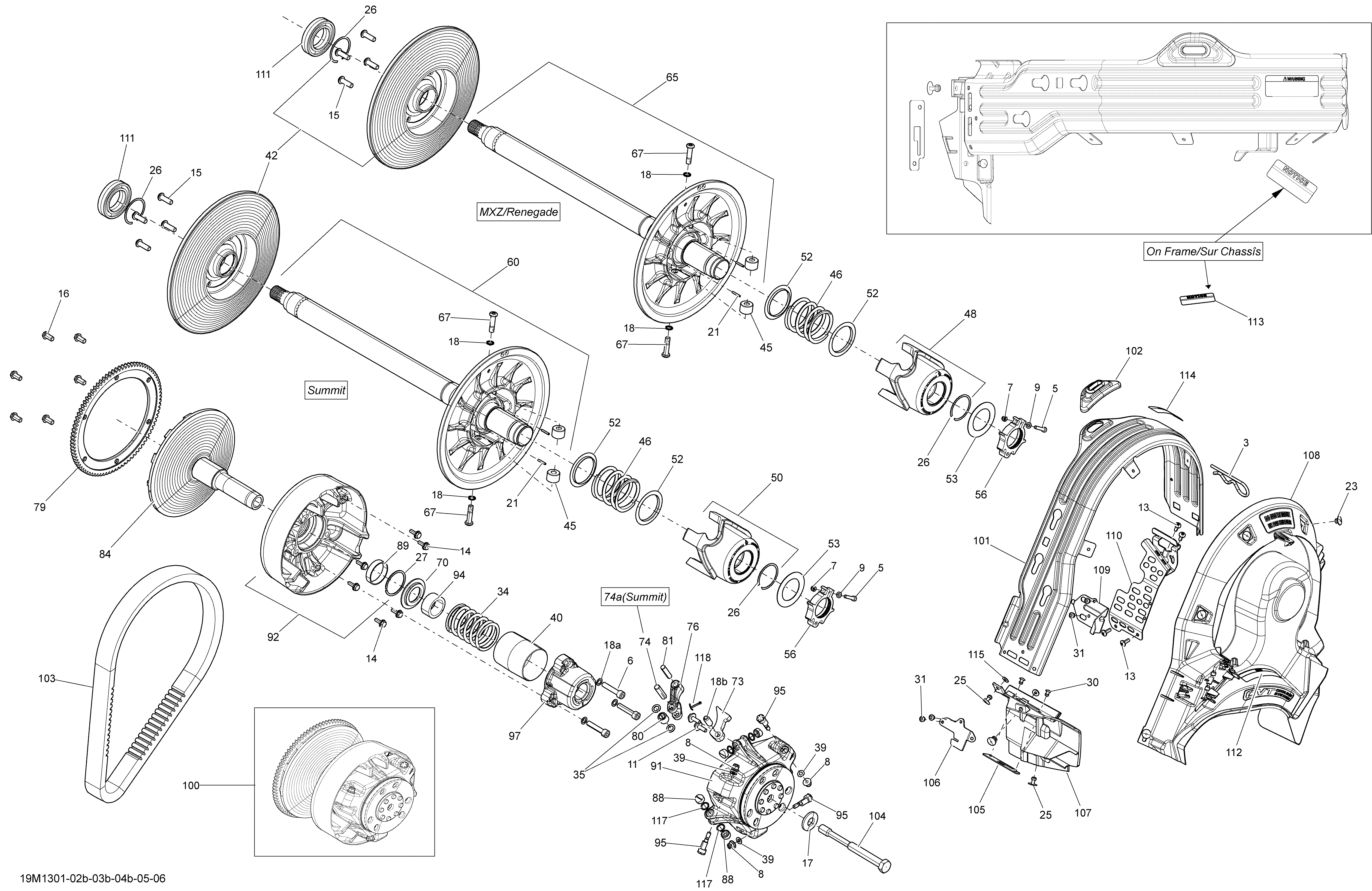

05- Pulley System 800R ETEC для BRP Ski-Doo RENEGADE X 800RE XS - 2013
-
№АртикулНазвание
-
3114045200 Hair PinHair Pin
-
5205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
6205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9234051410 Flat Washer M5Flat Washer M5
-
11250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
13250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
14250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
15250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
16250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
17250200006 Spring Washer 14 mmSpring Washer 14 mm
-
18a250200009 Lock Washer 8 mmLock Washer 8 mm
-
18b250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
21250400061 Spring Pin M3 X 18Spring Pin M3 X 18
-
23293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26293370049 CirclipCirclip
-
27293370071 CirclipCirclip
-
30390909100 Avex RivetAvex Rivet
-
31390909200 Avex RivetAvex Rivet
-
34414817700 Spring, Blue/green. MXZ, Renegade XSpring, Blue/green. MXZ, Renegade X
-
35417004302 Stopper WasherStopper Washer
-
39417005600 WasherWasher
-
40417009205 GuardGuard
-
42417126955 Sliding Flange Ass'ySliding Flange Ass'y
-
45417127016 RollerRoller
-
46417127137 Spring. MXZ, RenegadeSpring. MXZ, Renegade
-
48417126973 Cam Ass'y. RenegadeCam Ass'y. Renegade
-
52417127116 Swivel AbutmentSwivel Abutment
-
53417127155 WasherWasher
-
56415129604 Calibration Ass'yCalibration Ass'y
-
65417127332 Fix Flange Ass'y. MXZ, RenegadeFix Flange Ass'y. MXZ, Renegade
-
67417127294 Pivot StudPivot Stud
-
70417222312 Spring SeatSpring Seat
-
73417222546 Ramp 414. MXZ, Renegade XRamp 414. MXZ, Renegade X
-
74417222594 PinPin
-
76417222671 LeverLever
-
79417222952 Ring GearRing Gear
-
80417222947 RollerRoller
-
81417223164 Lever AxleLever Axle
-
84417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
88417223271 Slider ShoeSlider Shoe
-
89417223086 BushingBushing
-
91417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
92417223444 Sliding Flange Ass'ySliding Flange Ass'y
-
94417223471 BushingBushing
-
95417223501 Calibration ScrewCalibration Screw
-
97417222759 Spring Cover Ass'ySpring Cover Ass'y
-
101417300357 Belt GuardBelt Guard
-
102417300381 GuideGuide
-
103417300391 BeltBelt
-
104417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
105417300421 Reinforcement PlateReinforcement Plate
-
106417300423 Front BracketFront Bracket
-
107417300430 Front SupportFront Support
-
108417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
109417300445 StopperStopper
-
110417300448 Belt Guard BracketBelt Guard Bracket
-
111504152574 Ball BearingBall Bearing
-
112516005503 Decal, EnglishDecal, English
-
113516005507 RPM Sticker, EnglishRPM Sticker, English
-
114516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
115517225900 Flat WasherFlat Washer
-
117732401030 O-RingO-Ring
-
118250400060 Cotter PinCotter Pin
