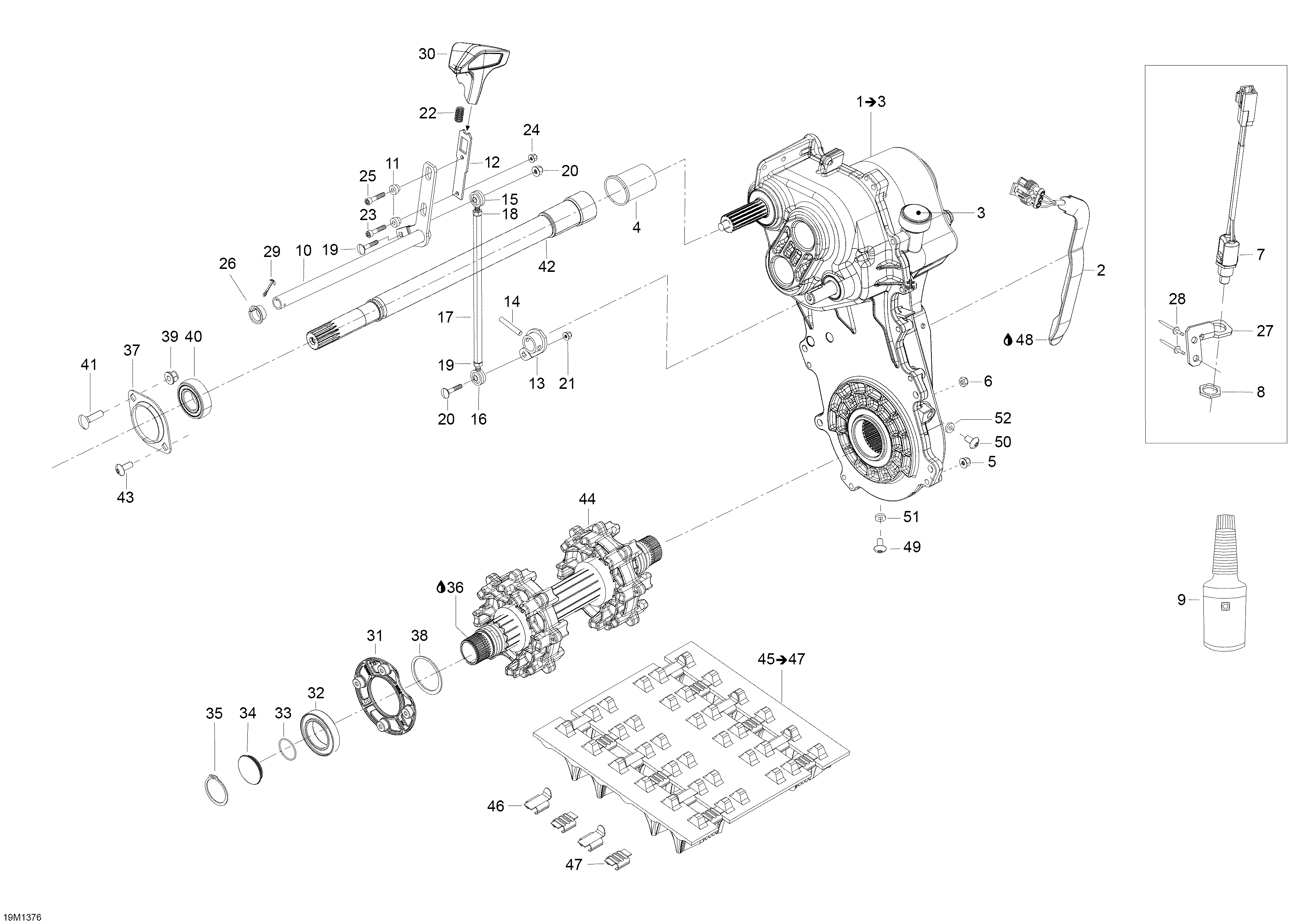

05- Drive System для BRP Ski-Doo Skandic WT 600 ACE (4-strokes) XU - 2013
-
№АртикулНазвание
-
1504153140 Transmission Ass'y. Includes 1 To 3Transmission Ass'y. Includes 1 To 3
-
2504152896 SensorSensor
-
3619230027 Plug, oilPlug, oil
-
4504153054 Protective RubberProtective Rubber
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
7515176472 Switch Ass'ySwitch Ass'y
-
8250000373 Brass NutBrass Nut
-
9293600140 Gearbox oil 12 x 355mlGearbox oil 12 x 355ml
-
10504152887 Lever ShifterLever Shifter
-
11504152787 SleeveSleeve
-
12504152831 Shifter ArmShifter Arm
-
13504152834 Welded LeverWelded Lever
-
14M41012 Retainer PinRetainer Pin
-
15707000689 RH Ball JointRH Ball Joint
-
16707000690 LH Ball JointLH Ball Joint
-
17504152836 RodRod
-
18232061414 Hex. Nut M6Hex. Nut M6
-
19232066414 LH Hex. Nut M6LH Hex. Nut M6
-
20207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
21M33010 Nut Elastic M6Nut Elastic M6
-
22504152882 SpringSpring
-
23205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
24233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
25732600030 ScrewScrew
-
26504152890 BearingBearing
-
27504152902 Sensor BracketSensor Bracket
-
28293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
29250400035 Cotter PinCotter Pin
-
30504152837 HandleHandle
-
31504152949 Housing BearingHousing Bearing
-
32293350059 Ball BearingBall Bearing
-
33293300122 O-RingO-Ring
-
34504152619 Magnetic CapMagnetic Cap
-
35504152572 CirclipCirclip
-
37504153089 Bearing Housing Ass'yBearing Housing Ass'y
-
38504153207 ShimShim
-
39233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
40293350074 Ball BearingBall Bearing
-
41207783044 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
42504152963 Counter ShaftCounter Shaft
-
43250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
44504153106 Axle-Drive AssyAxle-Drive Assy
-
45605613004 Track 500x39xx (38). Includes 45 To 47Track 500x39xx (38). Includes 45 To 47
-
46M5318323 Guide CleatGuide Cleat
-
48293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
49619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
50619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
51615580812 Gasket RingGasket Ring
-
52619230047 Seal RingSeal Ring
