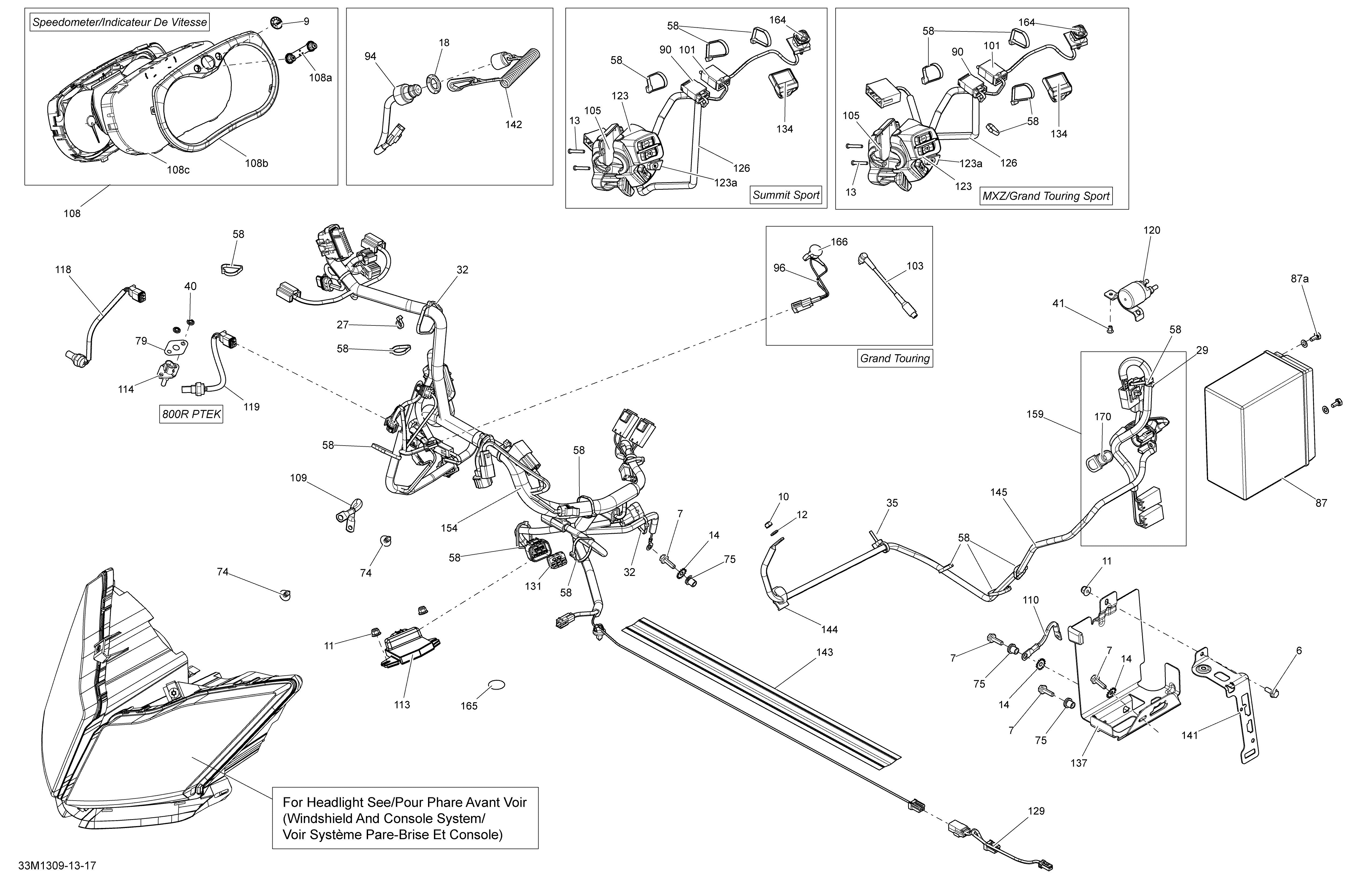

10- Electrical System для BRP Ski-Doo SUMMIT SPORT 600 - 2013
-
№АртикулНазвание
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13250000263 Torx Screw #8-18Torx Screw #8-18
-
14250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
18278000508 Safety Switch NutSafety Switch Nut
-
27293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
40389804300 Push NutPush Nut
-
58414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
74414644300 DartDart
-
75415107300 InsertInsert
-
79508000769 SealSeal
-
90515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
94515177249 DESS SwitchDESS Switch
-
101515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
105515175926 Housing Switch PlateHousing Switch Plate
-
108515177115 SpeedometerSpeedometer
-
109515177289 Fil de MasseFil de Masse
-
113515176364 Voltage RegulatorVoltage Regulator
-
114515176366 Air Temperature Sensor. 800R PTEKAir Temperature Sensor. 800R PTEK
-
119515177471 Temperature Sensor. 800R PTEKTemperature Sensor. 800R PTEK
-
119515177472 Temperature Sensor. 600Temperature Sensor. 600
-
123515177022 LH HousingLH Housing
-
126515176995 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
131515176681 LockLock
-
134515176825 Kill Switch SupportKill Switch Support
-
142515177057 DESS CapDESS Cap
-
154515177095 main harness Ass'ymain harness Ass'y
-
154515177096 main harness Ass'ymain harness Ass'y
-
164515177362 Kill SwitchKill Switch
-
165518325560 Adhesive PatchAdhesive Patch
-
108a415129355 Speedometer ButtonSpeedometer Button
-
108b415129370 Gauge RingGauge Ring
-
108c415129349 LensLens
-
123a515176088 Start/RER ButtonStart/RER Button
