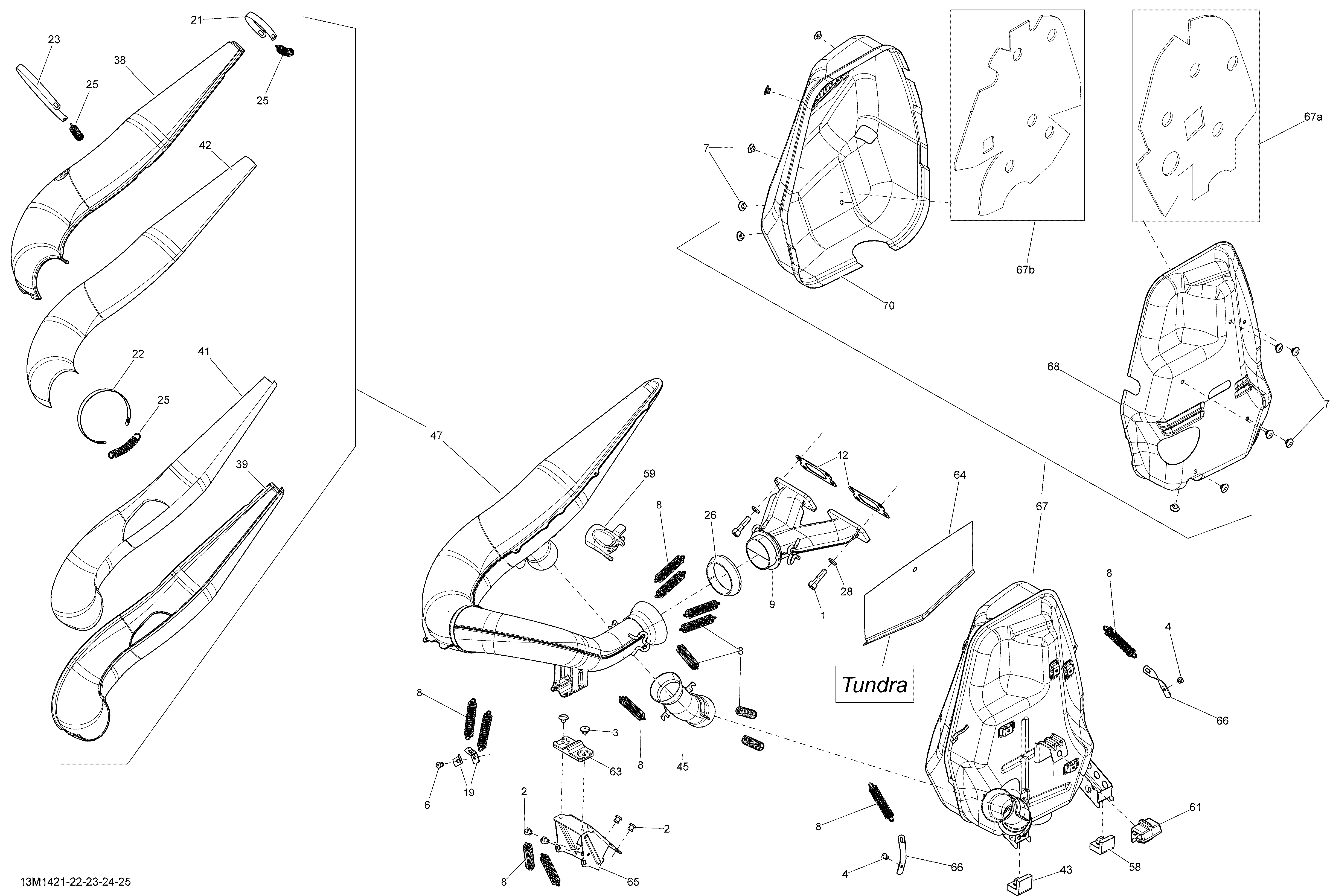

01- Exhaust System для BRP Ski-Doo EXPEDITION SPORT 550F XP - 2014
-
№АртикулНазвание
-
1205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
3293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
4390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6390909100 Avex RivetAvex Rivet
-
7390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
8415107100 SpringSpring
-
9420673065 Exhaust ManifoldExhaust Manifold
-
12420831849 Gasket 1.0 mmGasket 1.0 mm
-
19514053436 Spring BracketSpring Bracket
-
21514053491 Retaining StrapRetaining Strap
-
22514053498 Retaining StrapRetaining Strap
-
23514053502 Retaining StrapRetaining Strap
-
25514053643 SpringSpring
-
26514053644 Exhaust GasketExhaust Gasket
-
28514053837 WasherWasher
-
38514054208 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
39514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
41514054243 Lower Insulating WoolLower Insulating Wool
-
42514054244 Upper Insulating WoolUpper Insulating Wool
-
43514054274 Lower StopperLower Stopper
-
45514054411 Exhaust ElbowExhaust Elbow
-
47514054414 Tuned Pipe Ass'yTuned Pipe Ass'y
-
58514054496 Lower StopperLower Stopper
-
59514054513 BumperBumper
-
61514054606 Upper StopperUpper Stopper
-
63514054617 BumperBumper
-
66514054974 Spring BracketSpring Bracket
-
67514054978 Exhaust Muffler Ass'yExhaust Muffler Ass'y
-
68514054979 LH DeflectorLH Deflector
-
70514054984 RH DeflectorRH Deflector
-
67a514054421 LH Insulated WoolLH Insulated Wool
-
67b514054711 RH Insulating WoolRH Insulating Wool
