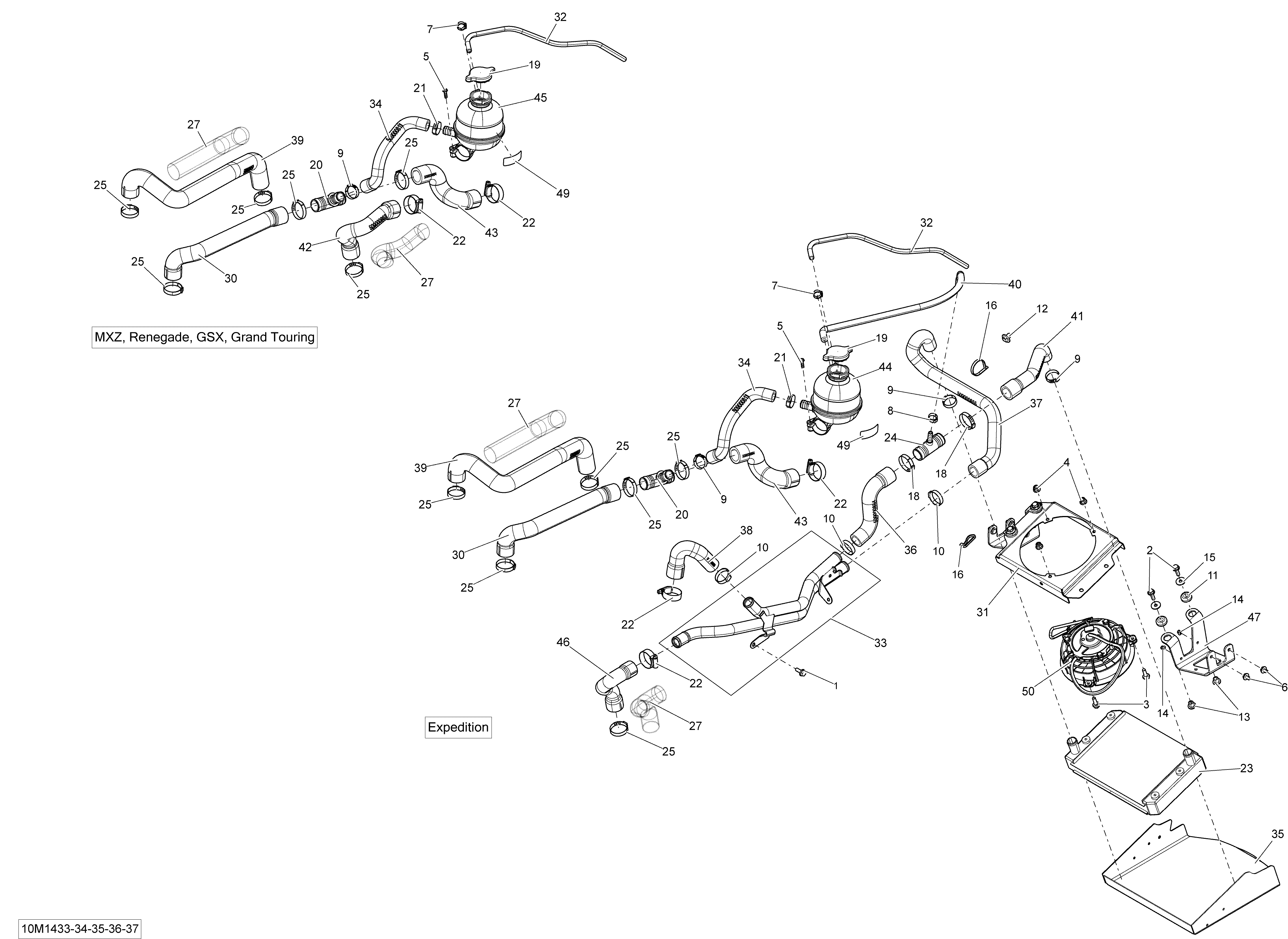

01- Cooling System для BRP Ski-Doo EXPEDITION SPORT 900ACE XS - 2014
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
6250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
7293650025 Oetiker Gear ClampOetiker Gear Clamp
-
8293650047 Crimp ClampCrimp Clamp
-
9293650099 Crimp ClampCrimp Clamp
-
10293650141 Oetiker Gear ClampOetiker Gear Clamp
-
11293720053 GrommetGrommet
-
12293730040 Mount DartMount Dart
-
13293900100 BushingBushing
-
14390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
15250200082 Flat WasherFlat Washer
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18509000162 Gear ClampGear Clamp
-
19509000180 Pressure CapPressure Cap
-
20509000372 T-FittingT-Fitting
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22509000443 Aba Gear ClampAba Gear Clamp
-
23509000488 RadiatorRadiator
-
24509000510 T-FittingT-Fitting
-
25509000529 Oetiker Gear ClampOetiker Gear Clamp
-
27509000513 Protector Tube 32 mmProtector Tube 32 mm
-
30509000697 Radiator Return HoseRadiator Return Hose
-
31509000714 Fan SupportFan Support
-
32509000775 HoseHose
-
33509000800 Water PipeWater Pipe
-
34509000811 Filling HoseFilling Hose
-
35509000835 Air Inlet DeflectorAir Inlet Deflector
-
36509000854 Radiator HoseRadiator Hose
-
37509000855 Radiator HoseRadiator Hose
-
38509000858 Engine Outlet HoseEngine Outlet Hose
-
39509000859 Radiator HoseRadiator Hose
-
40509000860 Breather HoseBreather Hose
-
41509000862 Radiator HoseRadiator Hose
-
43509000864 Engine Inlet HoseEngine Inlet Hose
-
44509000875 Cooling TankCooling Tank
-
46509000888 Engine Outlet HoseEngine Outlet Hose
-
47509000889 RH SupportRH Support
-
47509000890 LH SupportLH Support
-
49516005904 Warning DecalWarning Decal
-
50709200230 FanFan
