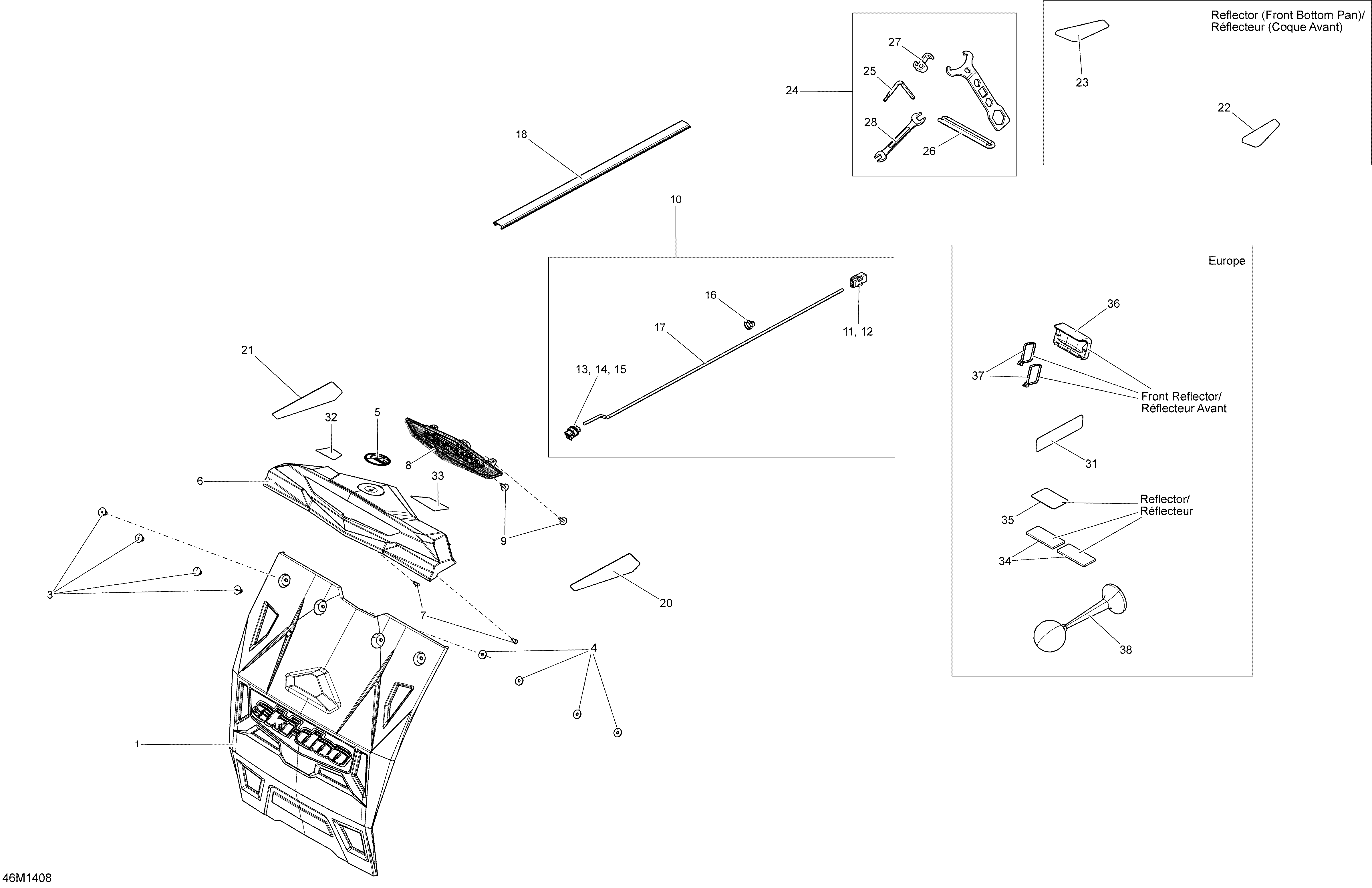

09- Utilities для BRP Ski-Doo FREERIDE 137, 800RE XM RS - 2014
-
№АртикулНазвание
-
1520001300 Snow GuardSnow Guard
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
6511000810 Light FairingLight Fairing
-
7241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
8520001143 Rear LightRear Light
-
9250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
10515177275 Wiring Harness Ass'y. Includes 10 to 17, Model-Freeride 137Wiring Harness Ass'y. Includes 10 to 17, Model-Freeride 137
-
10515177274 Wiring Harness Ass'y. Includes 10 to 17, Model-Freeride 146Wiring Harness Ass'y. Includes 10 to 17, Model-Freeride 146
-
10515177276 Wiring Harness Ass'y. Includes 10 to 17, Model-Freeride 154Wiring Harness Ass'y. Includes 10 to 17, Model-Freeride 154
-
11515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
12515175232 Male TerminalMale Terminal
-
13278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
14710001153 Seal WireSeal Wire
-
15710000925 TerminalTerminal
-
16293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
17515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
18520000829 Radiator TrimRadiator Trim
-
20520001241 Yellow RH Rear Reflector. Model-EuropeYellow RH Rear Reflector. Model-Europe
-
20520001239 Red RH Rear Reflector. Model-North AmericaRed RH Rear Reflector. Model-North America
-
21520001240 Yellow LH Rear Reflector. Model-EuropeYellow LH Rear Reflector. Model-Europe
-
21520001238 Red LH Rear Reflector. Model-North AmericaRed LH Rear Reflector. Model-North America
-
22520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
23520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
24520001158 Tools Kit. Includes 24 to 28Tools Kit. Includes 24 to 28
-
25520001142 Spacing ToolSpacing Tool
-
26412500200 Starter Rope, MeterStarter Rope, Meter
-
27529000060 Starter GripStarter Grip
-
28529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
31516005873 ''CE'' Decal. Model-Europe''CE'' Decal. Model-Europe
-
32516005057 Warning Decal, SafetyWarning Decal, Safety
-
33516005058 Warning Decal, SafetyWarning Decal, Safety
-
34520000271 Amber Reflector. Model-EuropeAmber Reflector. Model-Europe
-
35415037900 White Reflector. Model-EuropeWhite Reflector. Model-Europe
-
36520000871 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
37293750018 Tie Rap 371 mm. Model-EuropeTie Rap 371 mm. Model-Europe
-
38549011291 Horn. Model-EuropeHorn. Model-Europe
