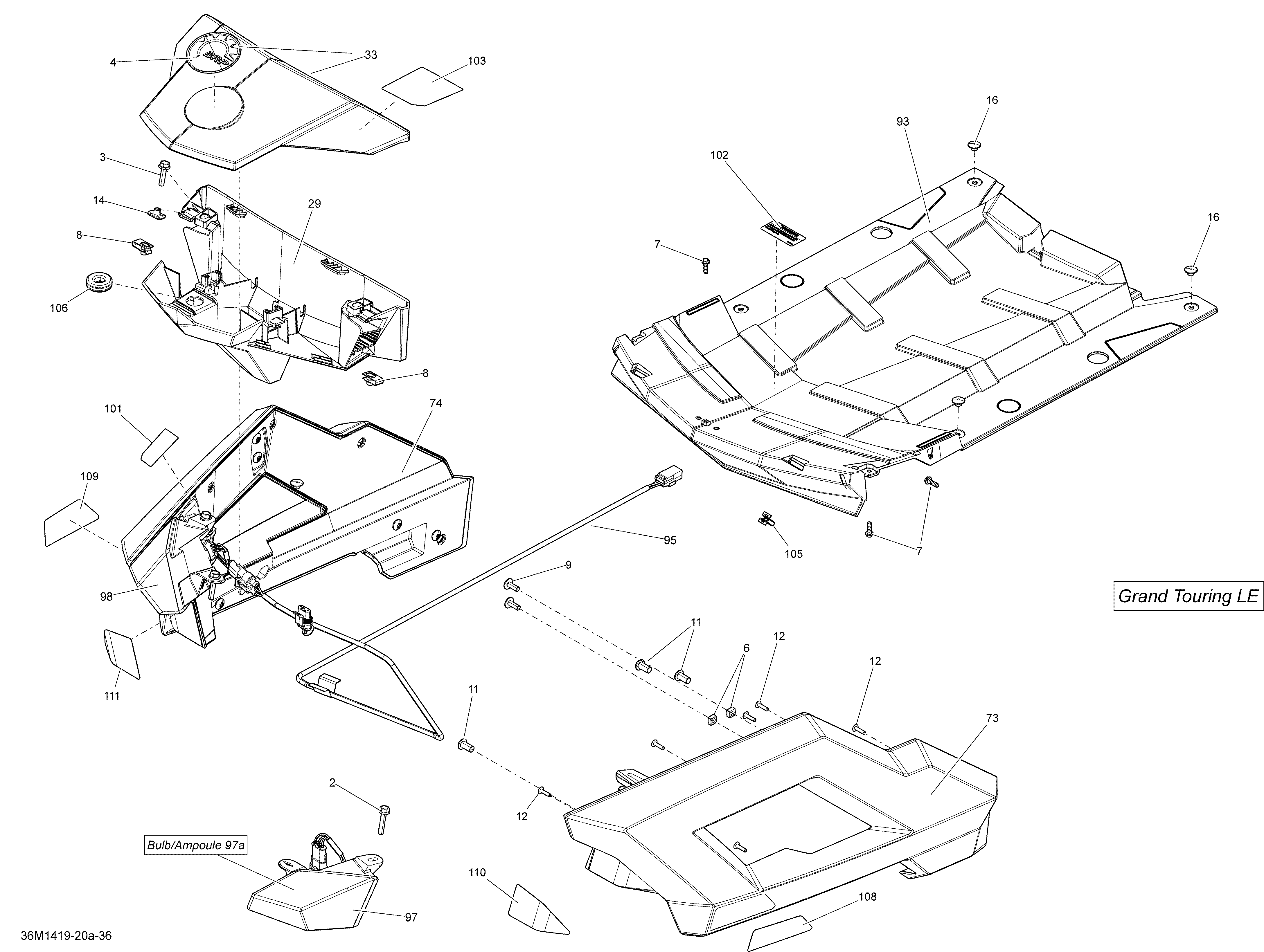

09- Luggage Rack для BRP Ski-Doo GRAND TOURING LE 600HOE XR - 2014
-
№АртикулНазвание
-
2207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
3207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
6232862412 Square Nut M6Square Nut M6
-
7241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
8250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
9250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
11250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
12250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
14293100003 Nut M6Nut M6
-
16293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
29511000530 Rack Ass'yRack Ass'y
-
33511000545 CoverCover
-
73511000631 RH Arm Ass'yRH Arm Ass'y
-
74511000632 LH Arm Ass'yLH Arm Ass'y
-
93511000861 Radiator CoverRadiator Cover
-
95515176634 Harness RackHarness Rack
-
97515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
98515176850 LH Tail Light Ass'yLH Tail Light Ass'y
-
101516004585 Warning Decal, SecurityWarning Decal, Security
-
102516005523 Warning DecalWarning Decal
-
103516004603 Warning Decal, SecurityWarning Decal, Security
-
105517302785 ClipClip
-
106517303756 GrommetGrommet
-
108520000729 RH Rear ReflectorRH Rear Reflector
-
109520000730 LH Rear ReflectorLH Rear Reflector
-
110520000731 RH Rear ReflectorRH Rear Reflector
-
111520000732 LH Rear ReflectorLH Rear Reflector
-
97a520000758 BulbBulb
