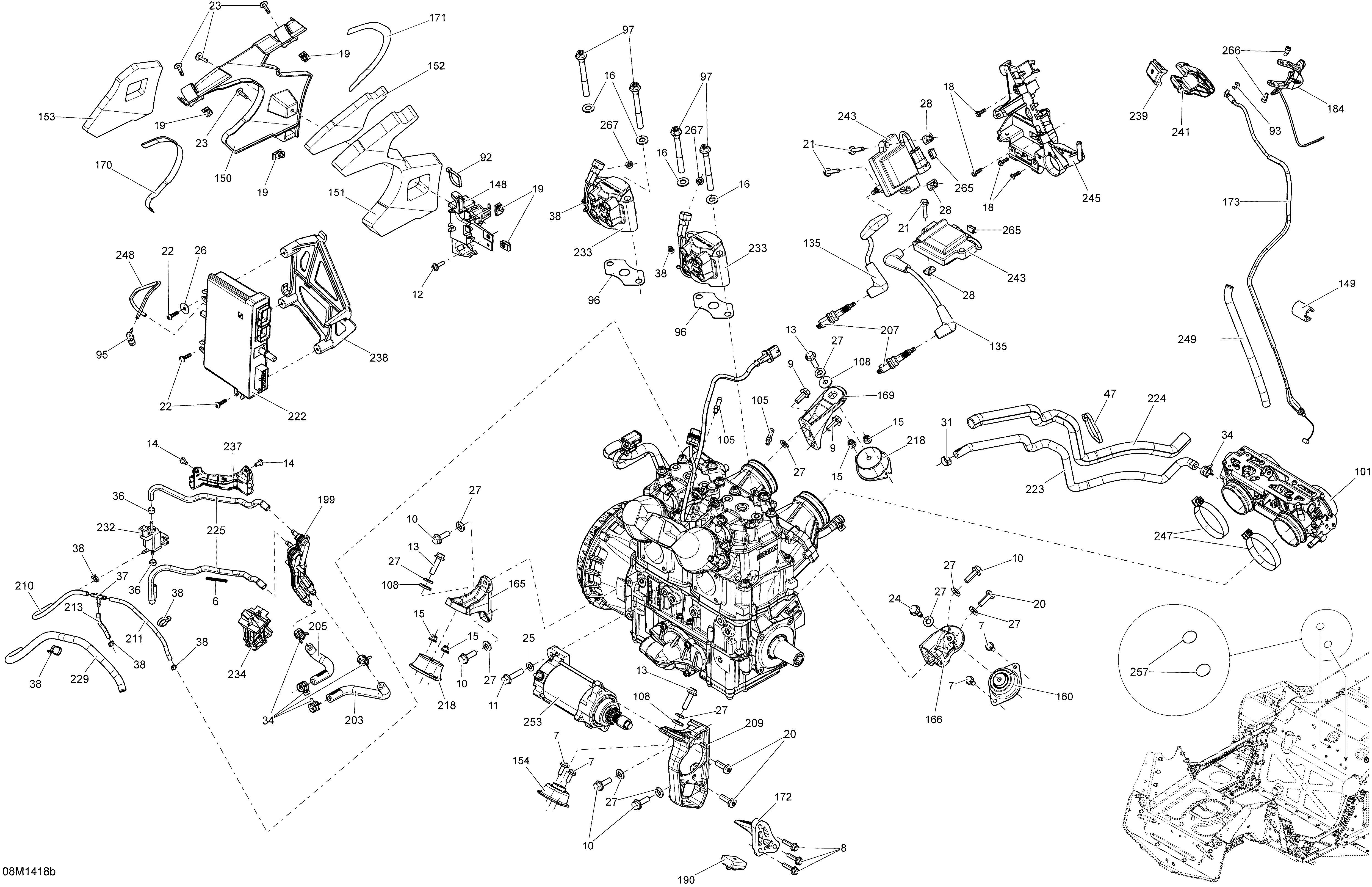

01- Engine And Engine Support 800RETEC для BRP Ski-Doo GSX SE 800RE XR - 2014
-
№АртикулНазвание
-
6512060934 SpringSpring
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
9207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
12207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
13207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
14210251180 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16234001410 Flat Washer 10 mmFlat Washer 10 mm
-
18241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
19250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
20250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
21250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
22250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
23250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
24250000570 Hex. Screw M8Hex. Screw M8
-
25250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
26250200040 Flat WasherFlat Washer
-
27250200146 Conical Spring Washer M8Conical Spring Washer M8
-
28293100003 Nut M6Nut M6
-
31293650046 Oetiker ClampOetiker Clamp
-
34293650214 Norma Spring ClampNorma Spring Clamp
-
36293650234 Crimp ClampCrimp Clamp
-
37293710068 T-FittingT-Fitting
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
47293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
92414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
93414274500 CirclipCirclip
-
95414814100 Male ConnectorMale Connector
-
96420430930 GasketGasket
-
97420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
101420889199 Throttle BodyThrottle Body
-
105420924724 Hose NippleHose Nipple
-
108503183200 Washer, YellowWasher, Yellow
-
135512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
148512060298 Solenoid SupportSolenoid Support
-
149512060313 ProtectorProtector
-
150512060339 Noise ShieldNoise Shield
-
151512060343 Interior Noise FoamInterior Noise Foam
-
152512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
153512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
154512060387 Rubber MountRubber Mount
-
160512060448 Rubber MountRubber Mount
-
165512060469 Front Support, MAGFront Support, MAG
-
166512060478 Rear Support, PTORear Support, PTO
-
169512060559 Rear Support, MAGRear Support, MAG
-
170512060574 Heat ShieldHeat Shield
-
171512060575 Heat ShieldHeat Shield
-
172512060576 Stopper SupportStopper Support
-
173512060611 Throttle CableThrottle Cable
-
184512060618 Throttle HandleThrottle Handle
-
190512060627 StopperStopper
-
199512060692 ManifoldManifold
-
203512060694 RH Formed HoseRH Formed Hose
-
205512060695 LH Formed HoseLH Formed Hose
-
210270000374 Hose 4.3 mmHose 4.3 mm
-
211270000374 Hose 4.3 mmHose 4.3 mm
-
213270000374 Hose 4.3 mmHose 4.3 mm
-
218512060729 Rubber MountRubber Mount
-
223512060740 Formed Hose, OutputFormed Hose, Output
-
224415080000 Tubing 16 mmTubing 16 mm
-
225415080200 Hose, PolyurethaneHose, Polyurethane
-
229409901700 Tubing 9 mmTubing 9 mm
-
232512060950 Solenoid ValveSolenoid Valve
-
233512060795 Fuel InjectorFuel Injector
-
234512060822 Manifold SupportManifold Support
-
237512060827 Hose SupportHose Support
-
238512060858 Calibrated Module SupportCalibrated Module Support
-
239512060859 Upper HousingUpper Housing
-
241512060860 Lower HousingLower Housing
-
243512060877 Ignition CoilIgnition Coil
-
245512060888 SupportSupport
-
247512060943 Gemi ClampGemi Clamp
-
248415080100 LineLine
-
249409901700 Tubing 9 mmTubing 9 mm
-
253515177389 StarterStarter
-
257518325560 Adhesive PatchAdhesive Patch
-
265710000992 ClipClip
-
266732601143 Flanged ScrewFlanged Screw
-
267732610072 Push NutPush Nut
-
209512060714 Front Support, PTOFront Support, PTO
-
222512060909 Calibrated ModuleCalibrated Module
-
207415129484 Spark Plug, NGK PFR7ABSpark Plug, NGK PFR7AB
