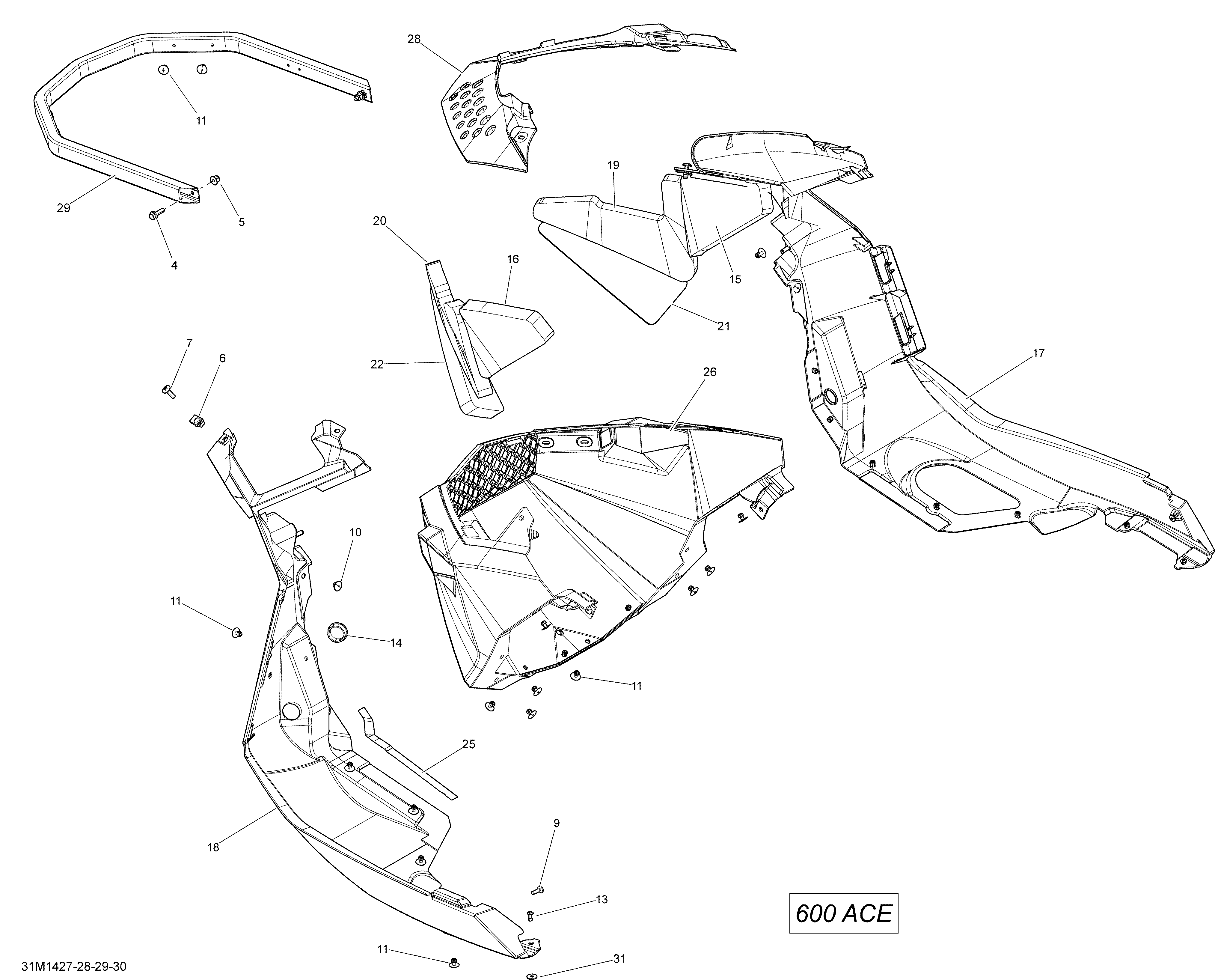

09- Bottom Pan _31M1427 для BRP Ski-Doo MXZ SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
10293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
14414916600 Nylon CapNylon Cap
-
15502007210 RH Foam UpperRH Foam Upper
-
16502007211 LH Foam UpperLH Foam Upper
-
17502006831 Deep Black RH Bottom PanDeep Black RH Bottom Pan
-
18502006832 Deep Black LH Bottom PanDeep Black LH Bottom Pan
-
19502007212 RH Middle FoamRH Middle Foam
-
20502007213 LH Middle FoamLH Middle Foam
-
21502007214 RH Lower FoamRH Lower Foam
-
22502007215 LH Lower FoamLH Lower Foam
-
25293250087 Gasket, NeopreneGasket, Neoprene
-
26502006971 Black Front Bottom PanBlack Front Bottom Pan
-
28502007068 Deep Black Bottom Pan CapDeep Black Bottom Pan Cap
-
29502007116 Black Front BumperBlack Front Bumper
-
31517124300 WasherWasher
