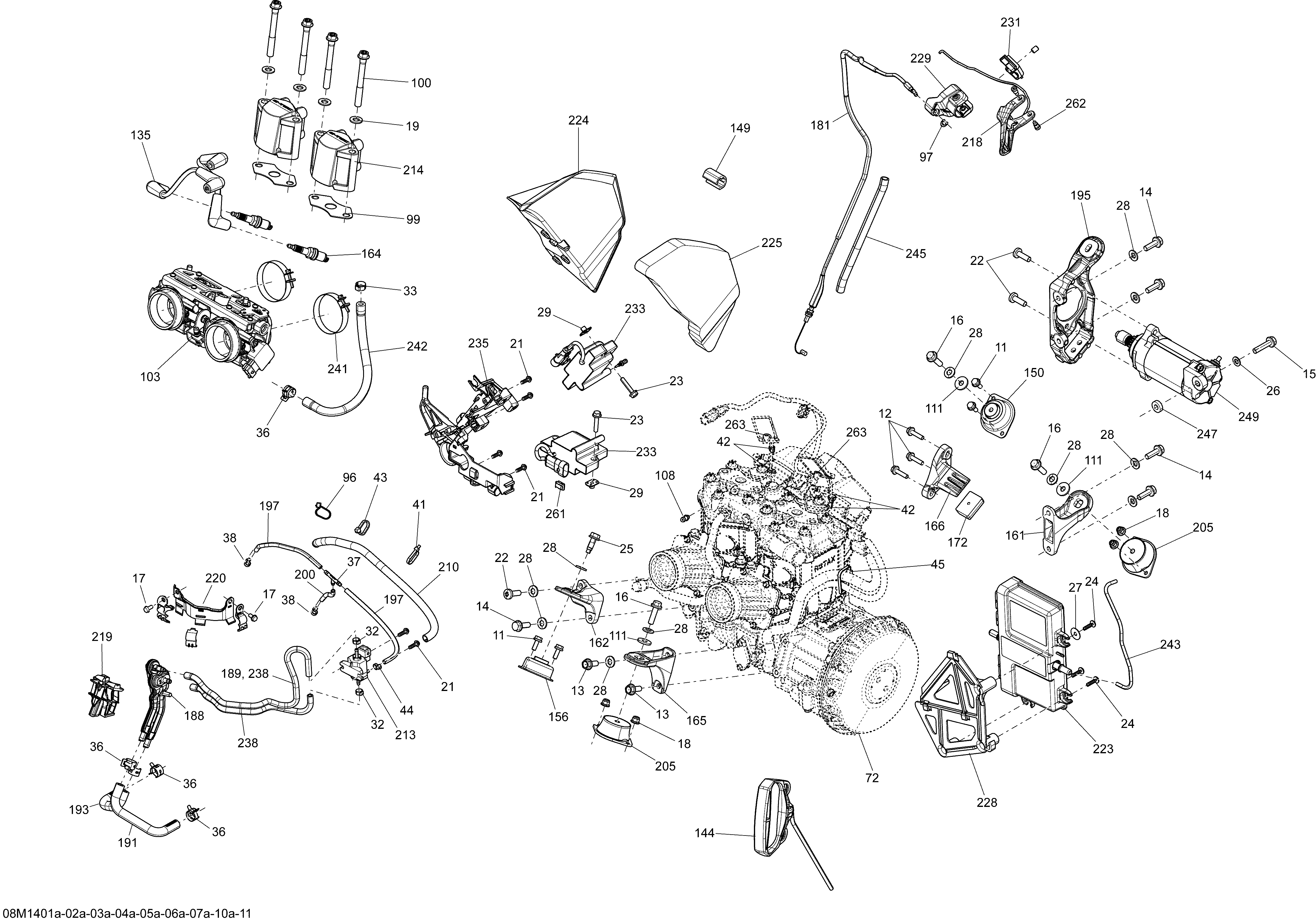

01- Engine And Engine Support 600 HO ETEC_08M1401a для BRP Ski-Doo MXZ TNT 600HOE XS - 2014
-
№АртикулНазвание
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
12207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
13207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
15207583544 Hex Flanged Screw M8 X 35, Scotch Grip. With StarterHex Flanged Screw M8 X 35, Scotch Grip. With Starter
-
16207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
17210251180 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19234001410 Flat Washer 10 mmFlat Washer 10 mm
-
21241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
22250000248 Torx Screw M8 X 25, Scotch Grip. With StarterTorx Screw M8 X 25, Scotch Grip. With Starter
-
23250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
24250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
25250000570 Hex. Screw M8Hex. Screw M8
-
26250200008 Flat Washer With Teflon 8 mm. With StarterFlat Washer With Teflon 8 mm. With Starter
-
27250200040 Flat WasherFlat Washer
-
28250200146 Conical Spring Washer M8Conical Spring Washer M8
-
29293100003 Nut M6Nut M6
-
32293650234 Crimp ClampCrimp Clamp
-
33293650046 Oetiker ClampOetiker Clamp
-
36293650214 Norma Spring ClampNorma Spring Clamp
-
37293710068 T-FittingT-Fitting
-
42293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
97414274500 CirclipCirclip
-
99420430930 GasketGasket
-
100420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
103420889197 Throttle Body. 600HOEThrottle Body. 600HOE
-
108420924724 Hose NippleHose Nipple
-
111503183200 Washer, YellowWasher, Yellow
-
135512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
144512060136 Starter Grip. ManualStarter Grip. Manual
-
149512060313 ProtectorProtector
-
150512060387 Rubber MountRubber Mount
-
156512060448 Rubber MountRubber Mount
-
161512060469 Front Support, MAGFront Support, MAG
-
162512060478 Rear Support, PTORear Support, PTO
-
164415129375 Spark Plug. 600HOESpark Plug. 600HOE
-
165512060559 Rear Support, MAGRear Support, MAG
-
166512060576 Stopper SupportStopper Support
-
172512060627 Stopper. Except SUMMITStopper. Except SUMMIT
-
181512060624 Throttle Cable. MX-Z TNTThrottle Cable. MX-Z TNT
-
188512060692 ManifoldManifold
-
189512060930 SpringSpring
-
191512060694 RH Formed HoseRH Formed Hose
-
193512060695 LH Formed HoseLH Formed Hose
-
195512060699 Front Support, PTO. 600HOEFront Support, PTO. 600HOE
-
197270000374 Hose 4.3 mmHose 4.3 mm
-
205512060729 Rubber MountRubber Mount
-
213512060950 Solenoid ValveSolenoid Valve
-
214512060890 Fuel Injector. 600HOEFuel Injector. 600HOE
-
218512060815 Throttle Ass'yThrottle Ass'y
-
219512060769 Manifold Support. 600HOEManifold Support. 600HOE
-
220512060827 Hose SupportHose Support
-
223512060912 Calibrated Module. 600HOECalibrated Module. 600HOE
-
224512060847 Noise ShieldNoise Shield
-
225512060958 Inner Acoustic FoamInner Acoustic Foam
-
228512060858 Calibrated Module SupportCalibrated Module Support
-
229512060860 Lower HousingLower Housing
-
231512060859 Upper HousingUpper Housing
-
233512060877 Ignition CoilIgnition Coil
-
235512060888 SupportSupport
-
238415080200 Hose, PolyurethaneHose, Polyurethane
-
241293650158 Gemi Clamp. 600HOEGemi Clamp. 600HOE
-
242512060944 Bleeder's Collector Outlet HoseBleeder's Collector Outlet Hose
-
243415080100 LineLine
-
245409901700 Tubing 9 mmTubing 9 mm
-
247515176500 Washer. 600HOE With StarterWasher. 600HOE With Starter
-
249515177389 Starter. With StarterStarter. With Starter
-
261710000992 ClipClip
-
262732601143 Flanged ScrewFlanged Screw
-
263732610072 Push NutPush Nut
