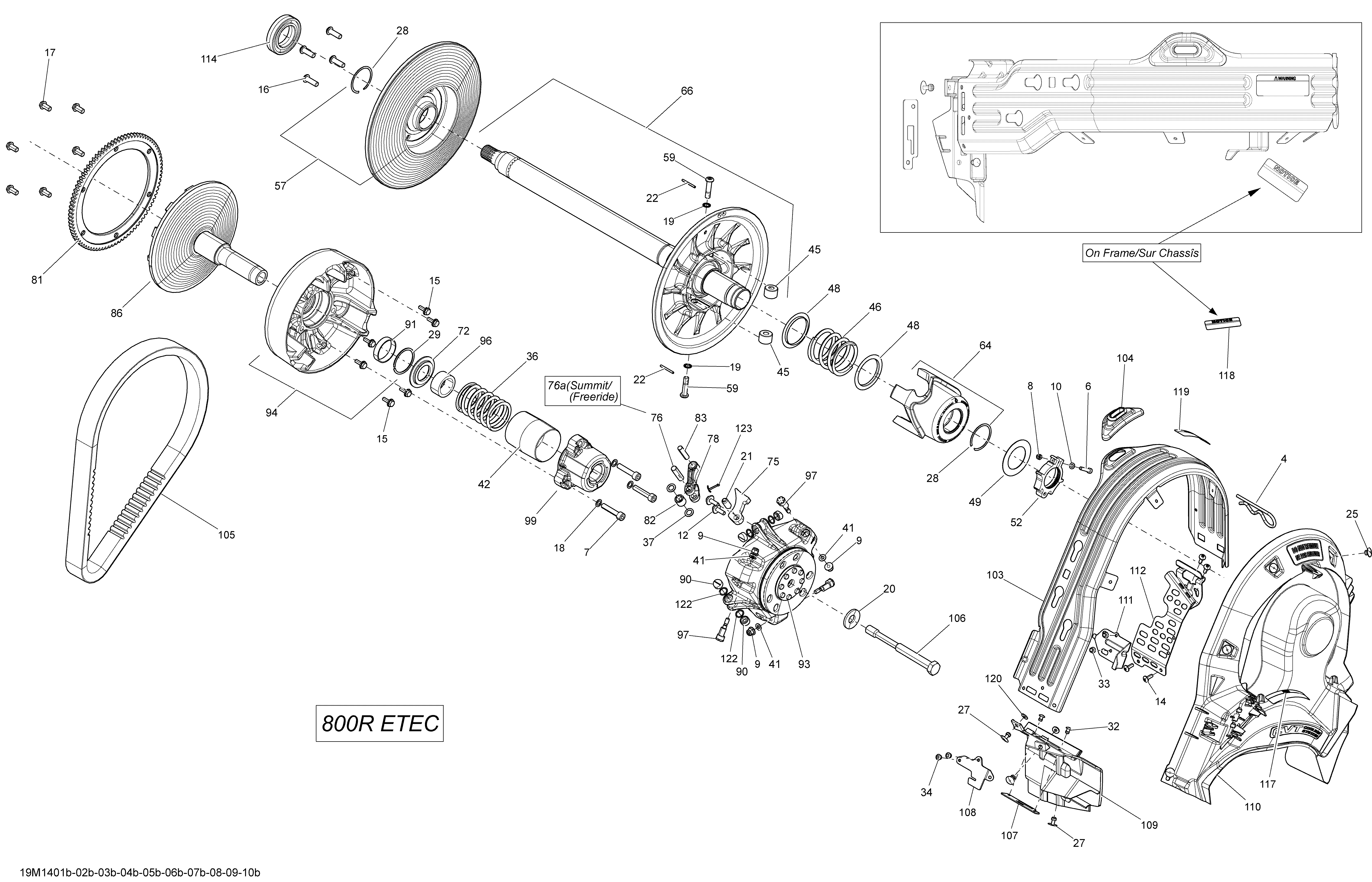

05- Pulley System 800R ETEC_19M1402b для BRP Ski-Doo MXZ X 800RETEC XS - 2014
-
№АртикулНазвание
-
4114045200 Hair PinHair Pin
-
6205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
7205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
8232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234051410 Flat Washer M5Flat Washer M5
-
12250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
14250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
15250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
16250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
17250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
18250200009 Lock Washer 8 mmLock Washer 8 mm
-
19250200009 Lock Washer 8 mmLock Washer 8 mm
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
21250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
22250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
25293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
28293370049 CirclipCirclip
-
29293370071 CirclipCirclip
-
32390909100 Avex RivetAvex Rivet
-
33390909200 Avex RivetAvex Rivet
-
34390909200 Avex RivetAvex Rivet
-
36414817700 Spring, Blue/greenSpring, Blue/green
-
37417004302 Stopper WasherStopper Washer
-
41417005600 WasherWasher
-
42417009205 GuardGuard
-
45417127016 RollerRoller
-
46417127137 SpringSpring
-
48417127116 Swivel AbutmentSwivel Abutment
-
49417127155 WasherWasher
-
52415129604 Calibration Ass'yCalibration Ass'y
-
57417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
59417127294 Pivot StudPivot Stud
-
64417127385 Cam Ass'yCam Ass'y
-
66417127387 Fix Flange Ass'yFix Flange Ass'y
-
72417222312 Spring SeatSpring Seat
-
75417222546 Ramp 414Ramp 414
-
76417222594 PinPin
-
78417222671 LeverLever
-
81417223739 Ring GearRing Gear
-
82417222947 RollerRoller
-
83417223164 Lever AxleLever Axle
-
86417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
90417223271 Slider ShoeSlider Shoe
-
91417223086 BushingBushing
-
93417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
94417223444 Sliding Flange Ass'ySliding Flange Ass'y
-
96417223471 BushingBushing
-
97417223501 Calibration ScrewCalibration Screw
-
99417222759 Spring Cover Ass'ySpring Cover Ass'y
-
103417300357 Belt GuardBelt Guard
-
104417300381 GuideGuide
-
105417300391 BeltBelt
-
106417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
107417300421 Reinforcement PlateReinforcement Plate
-
108417300423 Front BracketFront Bracket
-
109417300430 Front SupportFront Support
-
110417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
111417300445 StopperStopper
-
112417300448 Belt Guard BracketBelt Guard Bracket
-
114504152574 Ball BearingBall Bearing
-
117516005503 Decal, EnglishDecal, English
-
118516005507 RPM Sticker, EnglishRPM Sticker, English
-
119516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
120517225900 Flat WasherFlat Washer
-
122732401030 O-RingO-Ring
-
123250400060 Cotter PinCotter Pin
