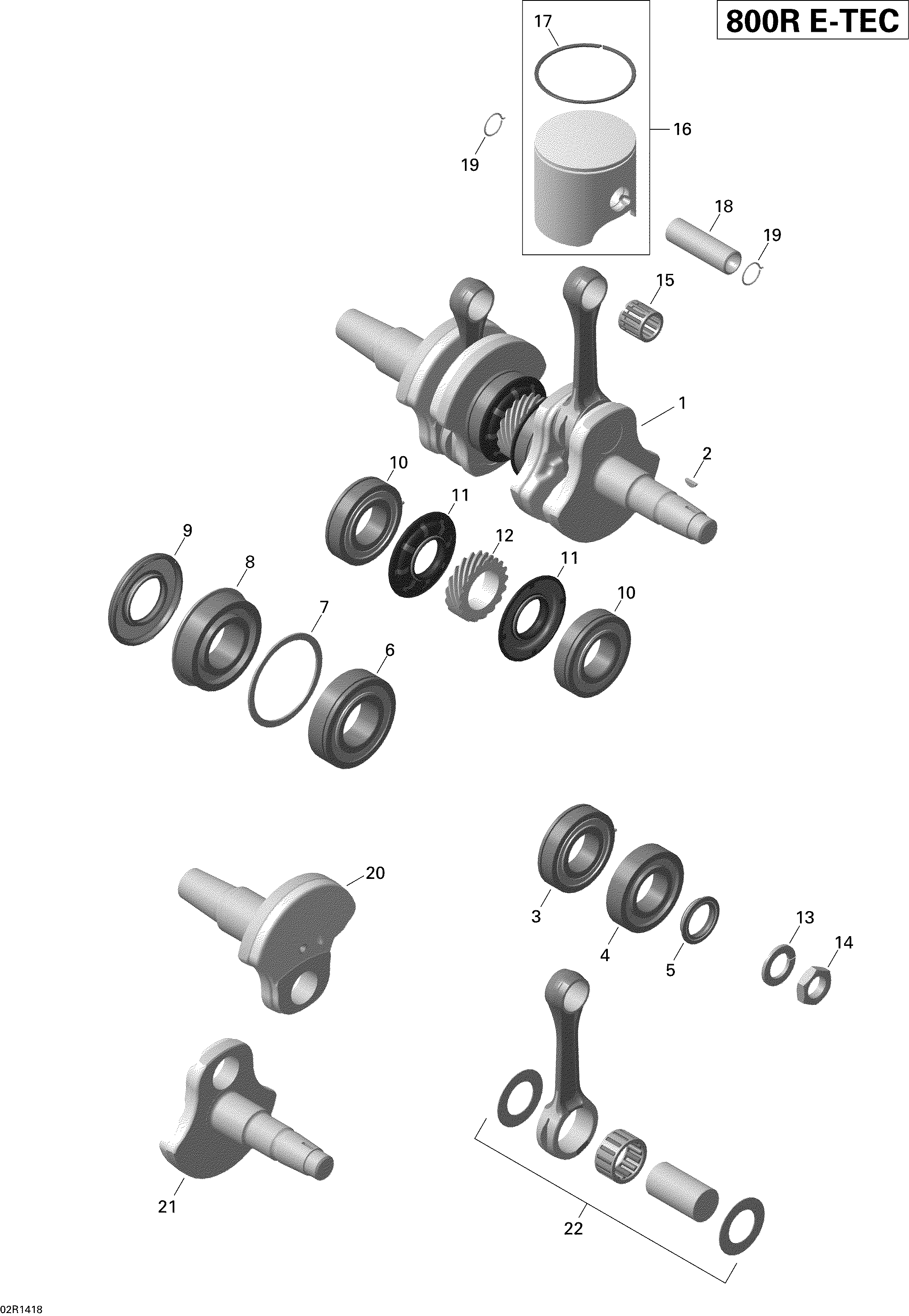

01- Crankshaft And Pistons _5_6 для BRP Ski-Doo MXZ X-RS 800RETEC XS RS - 2014
![](/wa-data/public/shop/sheme/bombardier/ski-doo/f4bb5e94-a1c9-4ab1-a613-1b4a9aebae27.png)
-
№АртикулНазвание
-
1420893480 Crankshaft Ass'y. Includes 1 to 12Crankshaft Ass'y. Includes 1 to 12
-
2420246015 Woodruff KeyWoodruff Key
-
3420832175 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931793 Oil SealOil Seal
-
6420832602 Ball BearingBall Bearing
-
7420926190 WasherWasher
-
8420832702 Ball BearingBall Bearing
-
9420931284 Oil SealOil Seal
-
10420832175 Ball BearingBall Bearing
-
11420931455 Oil SealOil Seal
-
12420834565 Central GearCentral Gear
-
13420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
14420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
15420832030 Needle BearingNeedle Bearing
-
16420893318 Piston Ass'y, 81.852 mm. Includes 16 to 17Piston Ass'y, 81.852 mm. Includes 16 to 17
-
17420815415 Semi-Trapez RingSemi-Trapez Ring
-
18420916482 Piston PinPiston Pin
-
19420845467 Piston CirclipPiston Circlip
-
22420892568 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420892569 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
