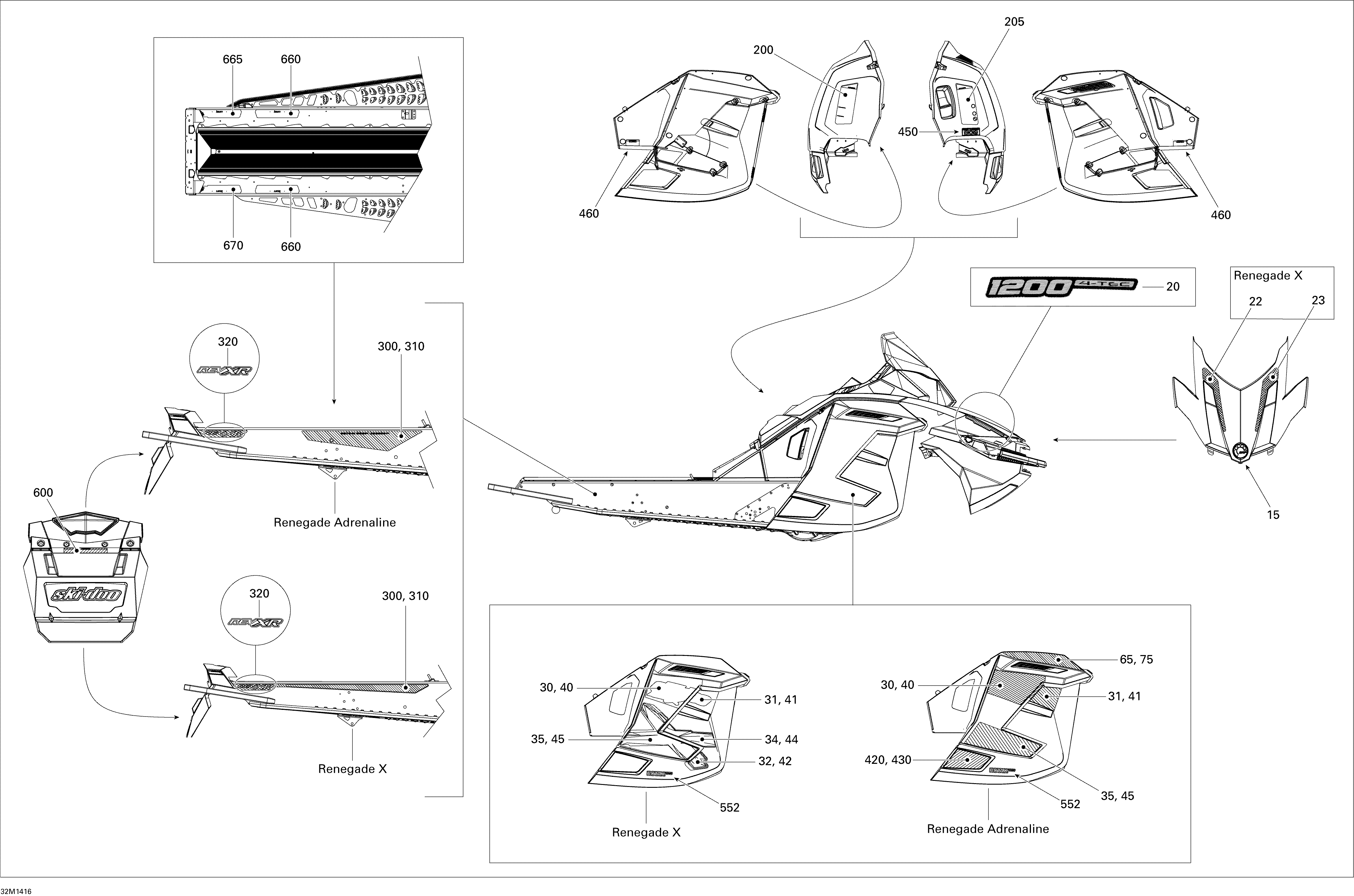

09- Decals Adrenaline для BRP Ski-Doo RENEGADE ADRENALINE 1200 4TEC XR - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516006088 Hood Decal, 1200 4-TECHood Decal, 1200 4-TEC
-
30516005424 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
31516005564 RH Front Upper Side DecalRH Front Upper Side Decal
-
35516005422 RH Side DecalRH Side Decal
-
40516005423 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
41516005563 LH Front Upper Side DecalLH Front Upper Side Decal
-
45516005421 LH Side DecalLH Side Decal
-
65516005547 RH Transition DecalRH Transition Decal
-
75516005546 LH Transition DecalLH Transition Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516006267 RH Frame DecalRH Frame Decal
-
310516006266 LH Frame DecalLH Frame Decal
-
320516006272 Decal, REV XRDecal, REV XR
-
420516005539 RH Lower DecalRH Lower Decal
-
430516005538 LH Lower DecalLH Lower Decal
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516005984 Decal, Rotax PowerDecal, Rotax Power
-
600516006117 Warning Decal, TrackWarning Decal, Track
-
660516005154 Frame Top DecalFrame Top Decal
-
665516005168 LH Frame Top DecalLH Frame Top Decal
-
670516005169 RH Frame Top DecalRH Frame Top Decal
