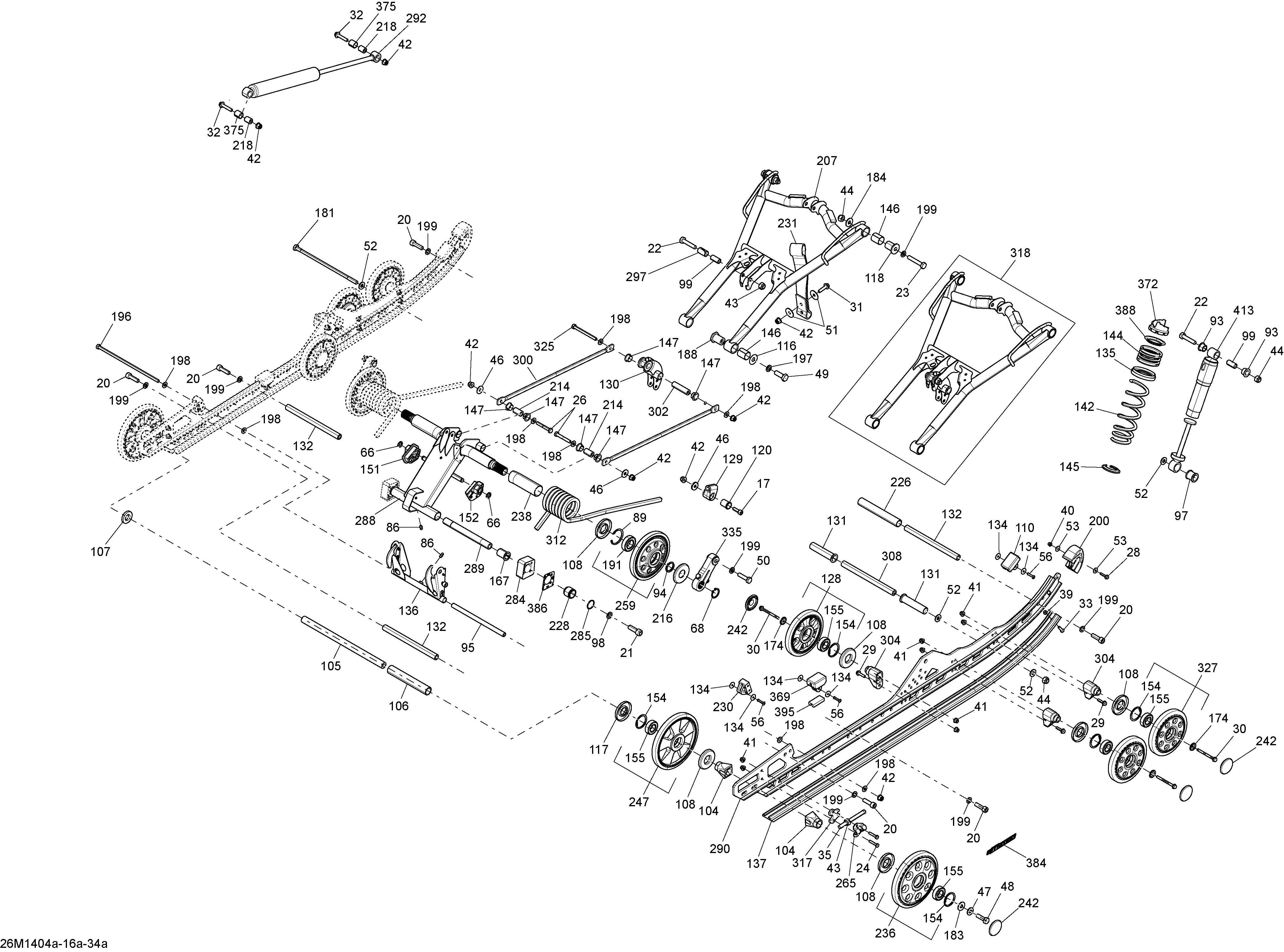

08- Rear Suspension _26M1404a для BRP Ski-Doo RENEGADE ADRENALINE 600HOE XS - 2014
-
№АртикулНазвание
-
17205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
20205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
21205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
22207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
23207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
24207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
26207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
28207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
29207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
30207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
31207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
32207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
33208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
35230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
39232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
41233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
42233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
43233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
44233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
46234082410 Flat Washer 8 mmFlat Washer 8 mm
-
47250200141 Conical Spring Washer M10Conical Spring Washer M10
-
48250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
49250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
50207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
51250200128 Flat Washer 8 mmFlat Washer 8 mm
-
52250200138 WasherWasher
-
53250200140 WasherWasher
-
56293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
66293370013 E-CirclipE-Circlip
-
68293370080 Retaining RingRetaining Ring
-
86408200700 Grease FittingGrease Fitting
-
89415129780 Retaining RingRetaining Ring
-
93503189117 CushionCushion
-
94503189146 Axle SpringAxle Spring
-
95503189156 Pivot Arm AxlePivot Arm Axle
-
97503189271 CushionCushion
-
98503189276 WasherWasher
-
99503189282 BushingBushing
-
104503190428 Rear Wheel SpacerRear Wheel Spacer
-
105503190429 Rear AxleRear Axle
-
106503190430 SpacerSpacer
-
107503190432 WasherWasher
-
108503190434 Labyrinth SealLabyrinth Seal
-
110503190576 Rubber StopperRubber Stopper
-
116503190656 WasherWasher
-
117503190682 Labyrinth SealLabyrinth Seal
-
118503190698 AxleAxle
-
120503190754 Retainer CushionRetainer Cushion
-
128503191152 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
129503191183 Spring SupportSpring Support
-
130503192531 RockerRocker
-
131503191259 Center BushingCenter Bushing
-
132503191260 Axle StrapAxle Strap
-
134503191273 WasherWasher
-
135503191281 Spring SpacerSpring Spacer
-
136503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
137503191306 Black - Slider Shoe 137''Black - Slider Shoe 137''
-
142503193480 Deep Black Spring (51mm Long)Deep Black Spring (51mm Long)
-
144503193067 Black Spring (189mm Long)Black Spring (189mm Long)
-
145503192608 Spring StopperSpring Stopper
-
146503191554 BushingBushing
-
147503191555 Swivel BushingSwivel Bushing
-
151503191565 LH Cam AdjusterLH Cam Adjuster
-
152503191566 RH Cam AdjusterRH Cam Adjuster
-
154415129371 Retaining RingRetaining Ring
-
155503190396 Ball BearingBall Bearing
-
167503191640 CushionCushion
-
174503191820 Wheel Cup M6Wheel Cup M6
-
181503191896 Bolt M10 X 251MMBolt M10 X 251MM
-
183503191910 WasherWasher
-
184503191926 WasherWasher
-
188503191966 Lower AxleLower Axle
-
191503191982 Ball BearingBall Bearing
-
196503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
197503192491 WasherWasher
-
198503192494 WasherWasher
-
199503192496 WasherWasher
-
200503192530 Slide ProtectorSlide Protector
-
207503193265 Front ArmFront Arm
-
214503192555 Axle BarAxle Bar
-
216503192592 Labyrinth RingLabyrinth Ring
-
218503192606 Rear Shock AxleRear Shock Axle
-
226503192678 SpacerSpacer
-
228503192749 Guide BlockGuide Block
-
230503192750 Rubber StopperRubber Stopper
-
231503192759 Stopper StrapStopper Strap
-
236503192766 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
238503192767 BushingBushing
-
242503192771 Black Wheel CapBlack Wheel Cap
-
247503192778 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
259503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
265503192583 TensionerTensioner
-
284503192918 LH Cam BlockLH Cam Block
-
284503192919 RH Cam BlockRH Cam Block
-
285503192921 O-RingO-Ring
-
288503193617 Rear Arm Ass'yRear Arm Ass'y
-
289503192981 Lower ShaftLower Shaft
-
290503193732 Yellow Runner 137''Yellow Runner 137''
-
292503193775 Rear Shock Ass'yRear Shock Ass'y
-
297503193037 BushingBushing
-
300503193005 Link RodLink Rod
-
302503190643 Axle Bar (Long)Axle Bar (Long)
-
304503193082 Casted SupportCasted Support
-
308503193142 Pivot AxlePivot Axle
-
312503193158 Black LH Spring, SquareBlack LH Spring, Square
-
312503193159 Black RH Spring, SquareBlack RH Spring, Square
-
317503193250 SpacerSpacer
-
318503193264 Front Arm Ass'yFront Arm Ass'y
-
325503193372 Screw M8 X 90Screw M8 X 90
-
327503193376 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
335503193533 Link Ass'yLink Ass'y
-
369503193101 Rubber StopperRubber Stopper
-
372505070150 Adjustment CamAdjustment Cam
-
375505072663 Leg CushionLeg Cushion
-
384516004755 Runner DecalRunner Decal
-
386516004900 LH Block Sticker DecalLH Block Sticker Decal
-
386516004901 RH Block Sticker DecalRH Block Sticker Decal
-
388503191872 Spring GuideSpring Guide
-
395572084800 Reinforcement StopperReinforcement Stopper
-
413503193208 Center Shock Ass'yCenter Shock Ass'y
