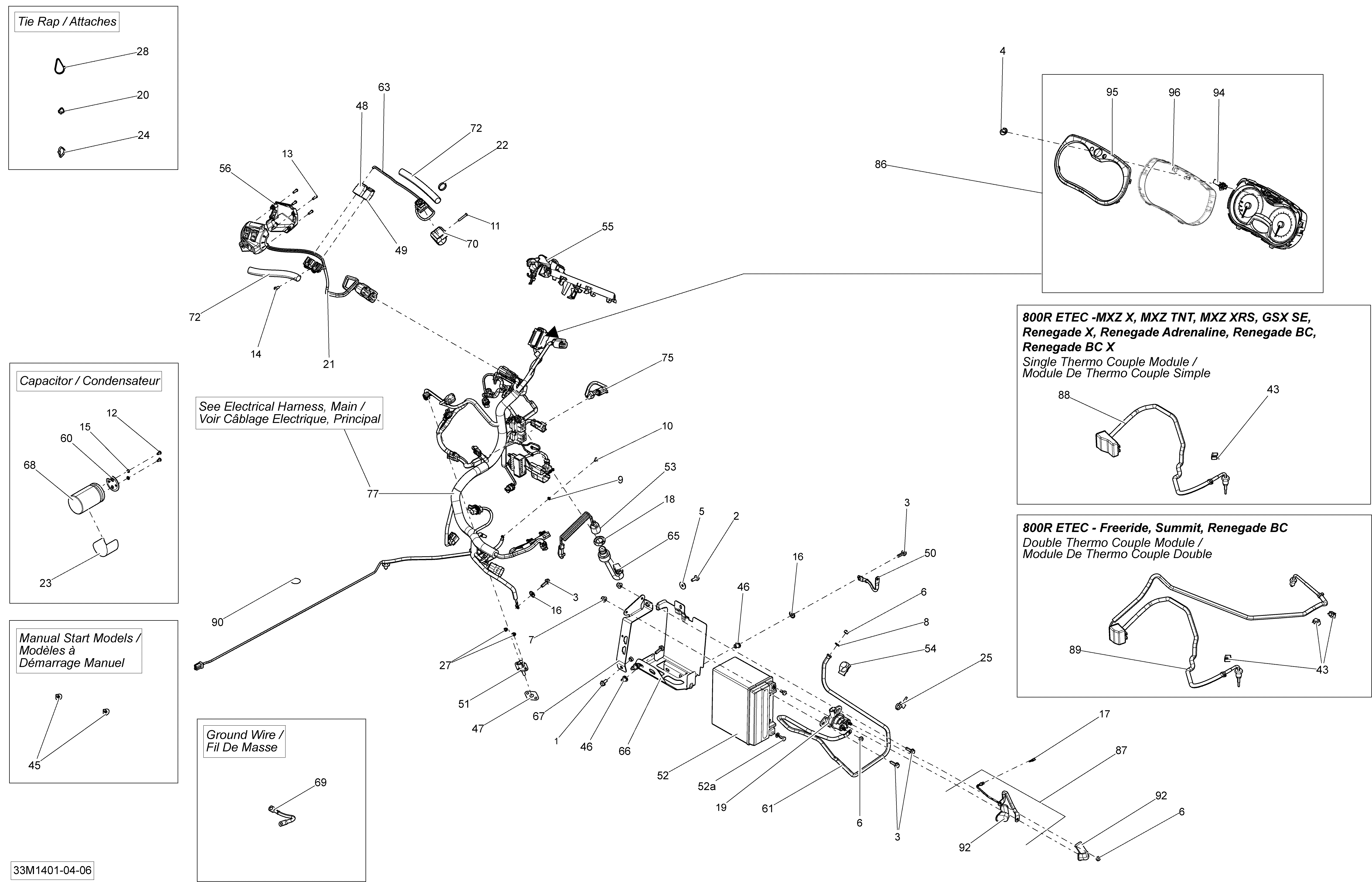

10- Electrical System 800RETEC для BRP Ski-Doo RENEGADE ADRENALINE 800RETEC XS - 2014
-
№АртикулНазвание
-
1207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
5224061201 Flat WasherFlat Washer
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9234141601 Lock Washer 4 mmLock Washer 4 mm
-
10250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
11250000263 Torx Screw #8-18Torx Screw #8-18
-
12250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
13250000671 Torx ScrewTorx Screw
-
14250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
15250200026 Lock washerLock washer
-
16250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
17278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
18278002963 Safety NutSafety Nut
-
19278003012 Starter RelayStarter Relay
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
21515177613 HousingHousing
-
22293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
23516006206 Capacitor DecalCapacitor Decal
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
27389804300 Push NutPush Nut
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43414227300 ClipClip
-
46293450275 InsertInsert
-
47508000769 SealSeal
-
48515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
49515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
50515176358 Ground WireGround Wire
-
51515176366 Air Temperature SensorAir Temperature Sensor
-
52296000295 Battery 18 Amp. 800R ETEC. Includes 52aBattery 18 Amp. 800R ETEC. Includes 52a
-
52a295500849 Battery Fastener Kit. 800R ETECBattery Fastener Kit. 800R ETEC
-
53515177057 DESS CapDESS Cap
-
54515177066 ClipClip
-
55515177134 Connector PlateConnector Plate
-
56515177147 Housing PlateHousing Plate
-
60515177193 CapCap
-
61515177208 Battery/Starter WireBattery/Starter Wire
-
63515177362 Kill SwitchKill Switch
-
65515177249 DESS SwitchDESS Switch
-
66515177264 Battery SupportBattery Support
-
67515177266 Battery StripBattery Strip
-
68515177272 CapacitorCapacitor
-
69515177289 Fil de MasseFil de Masse
-
70515177310 Kill Switch SupportKill Switch Support
-
72515177320 Corrugated TubeCorrugated Tube
-
75515177471 Temperature SensorTemperature Sensor
-
77515177542 Main Harness. 800R ETECMain Harness. 800R ETEC
-
86515177550 SpeedometerSpeedometer
-
87515177576 Fuse Battery WireFuse Battery Wire
-
88515177601 Simple Thermo Couple Module. 800R ETECSimple Thermo Couple Module. 800R ETEC
-
90518325560 Adhesive PatchAdhesive Patch
-
92710000495 Protector CapProtector Cap
-
94415129355 Speedometer ButtonSpeedometer Button
-
95415129370 Gauge RingGauge Ring
-
96415129349 LensLens
