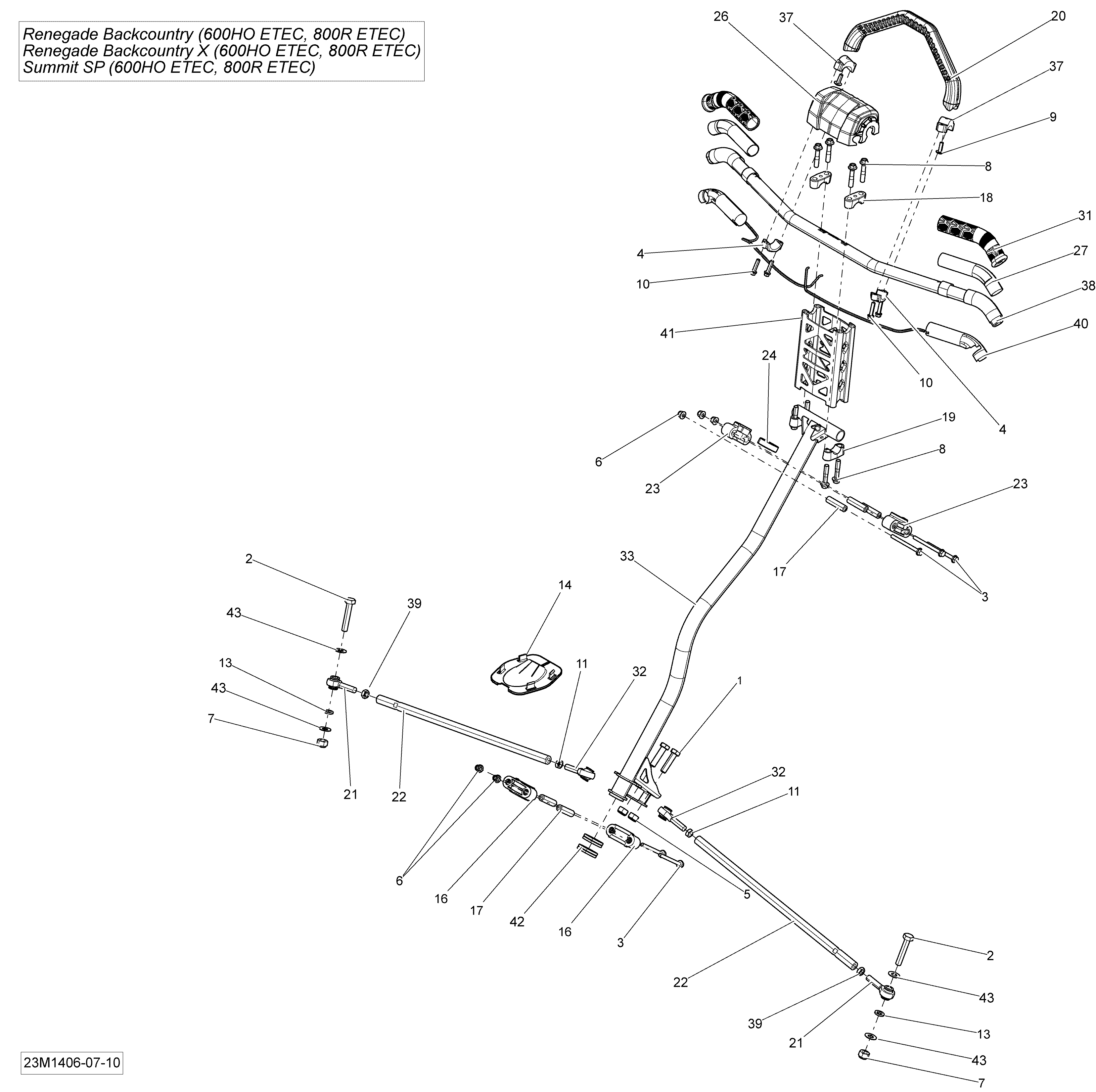

07- Steering для BRP Ski-Doo RENEGADE BACKCOUNTRY 600HOE XS - 2014
-
№АртикулНазвание
-
1207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
2207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
3207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
4719000049 Clamps KitClamps Kit
-
5232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
7233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
8250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
9250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
10250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
11250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
14506152163 PlatePlate
-
16506152217 Lower Half-HousingLower Half-Housing
-
17506152297 Housing BushingHousing Bushing
-
18506152395 Steering SupportSteering Support
-
19506152395 Steering SupportSteering Support
-
20506152460 Moulding StrapMoulding Strap
-
21506152019 RH Thread Ball JointRH Thread Ball Joint
-
22506152498 Tie-RodTie-Rod
-
23506152508 Upper Half-HousingUpper Half-Housing
-
24506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
26506152541 Steering PadSteering Pad
-
27506152548 InsulantInsulant
-
31506152560 Grip 148mmGrip 148mm
-
32506152081 LH Thread Ball JointLH Thread Ball Joint
-
33506152584 Main Tube (Painted)Main Tube (Painted)
-
37506152703 Painted Support PlatePainted Support Plate
-
38506152709 Handle Bar (Painted)Handle Bar (Painted)
-
39732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
40506152665 Heating Element 32 WATTHeating Element 32 WATT
-
41506152617 Handlebar Extension (Painted)Handlebar Extension (Painted)
-
42506152518 Lower Vibration RingLower Vibration Ring
-
43506152582 WasherWasher
