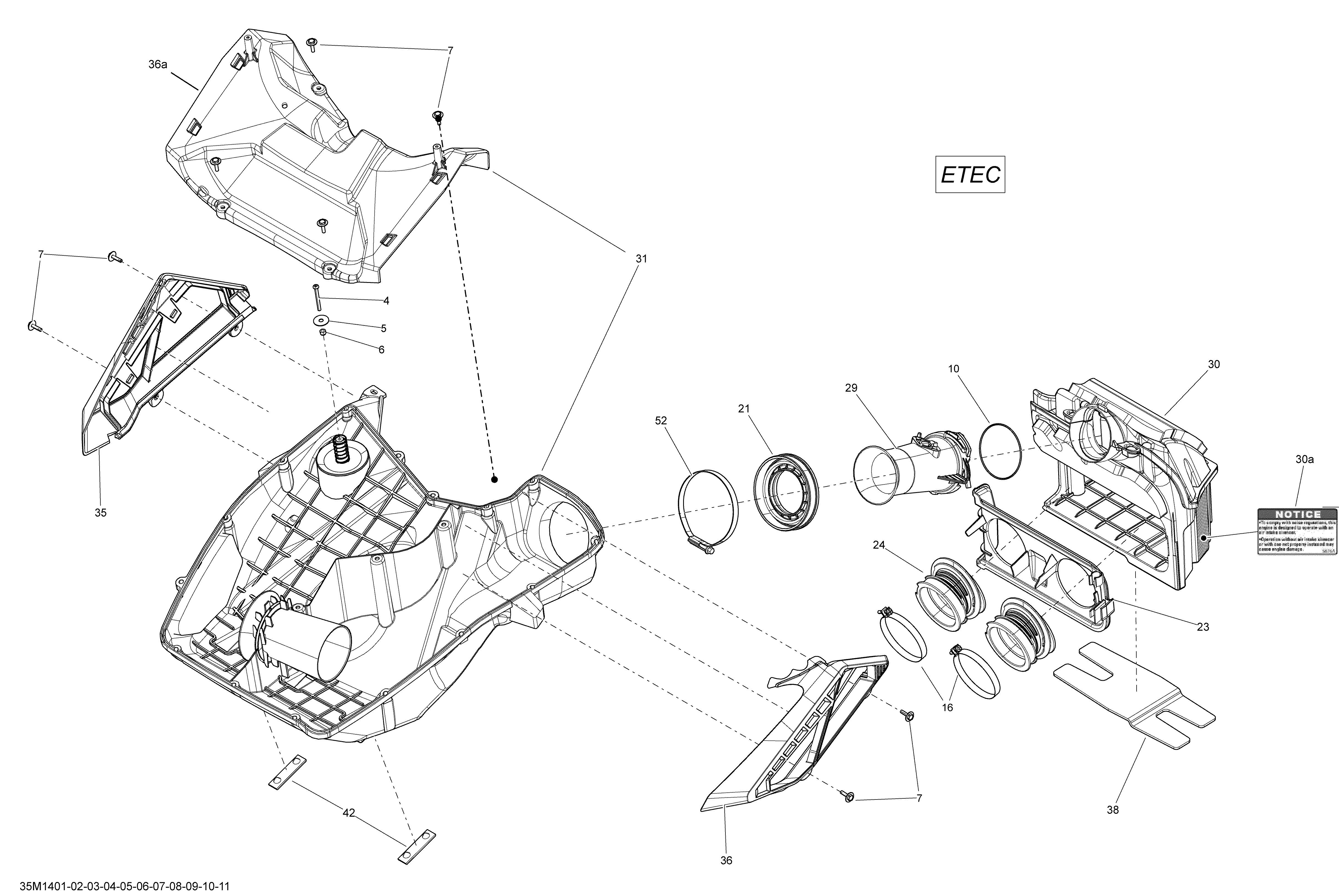

02- Air Intake System для BRP Ski-Doo RENEGADE BACKCOUNTRY X 800RETEC XS - 2014
-
№АртикулНазвание
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
5224060201 Flat WasherFlat Washer
-
6232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
7250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
10293300115 O-RingO-Ring
-
16508000346 Gemi ClampGemi Clamp
-
21508000567 BootBoot
-
23508000613 Plate AdapterPlate Adapter
-
24508000614 Air Intake AdapterAir Intake Adapter
-
29508000662 FluteFlute
-
30508000660 Primary Chamber Ass'yPrimary Chamber Ass'y
-
31508000722 Secondary Chamber Ass'y. 800R ETECSecondary Chamber Ass'y. 800R ETEC
-
31508000754 Secondary Chamber Ass'y. 600 HO ETECSecondary Chamber Ass'y. 600 HO ETEC
-
35508000730 RH Air FilterRH Air Filter
-
36508000731 LH Air FilterLH Air Filter
-
38508000739 Insulated FoamInsulated Foam
-
42508000744 StopperStopper
-
52514052924 Norma ClampNorma Clamp
-
30a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
36a508000732 Air DuctAir Duct
