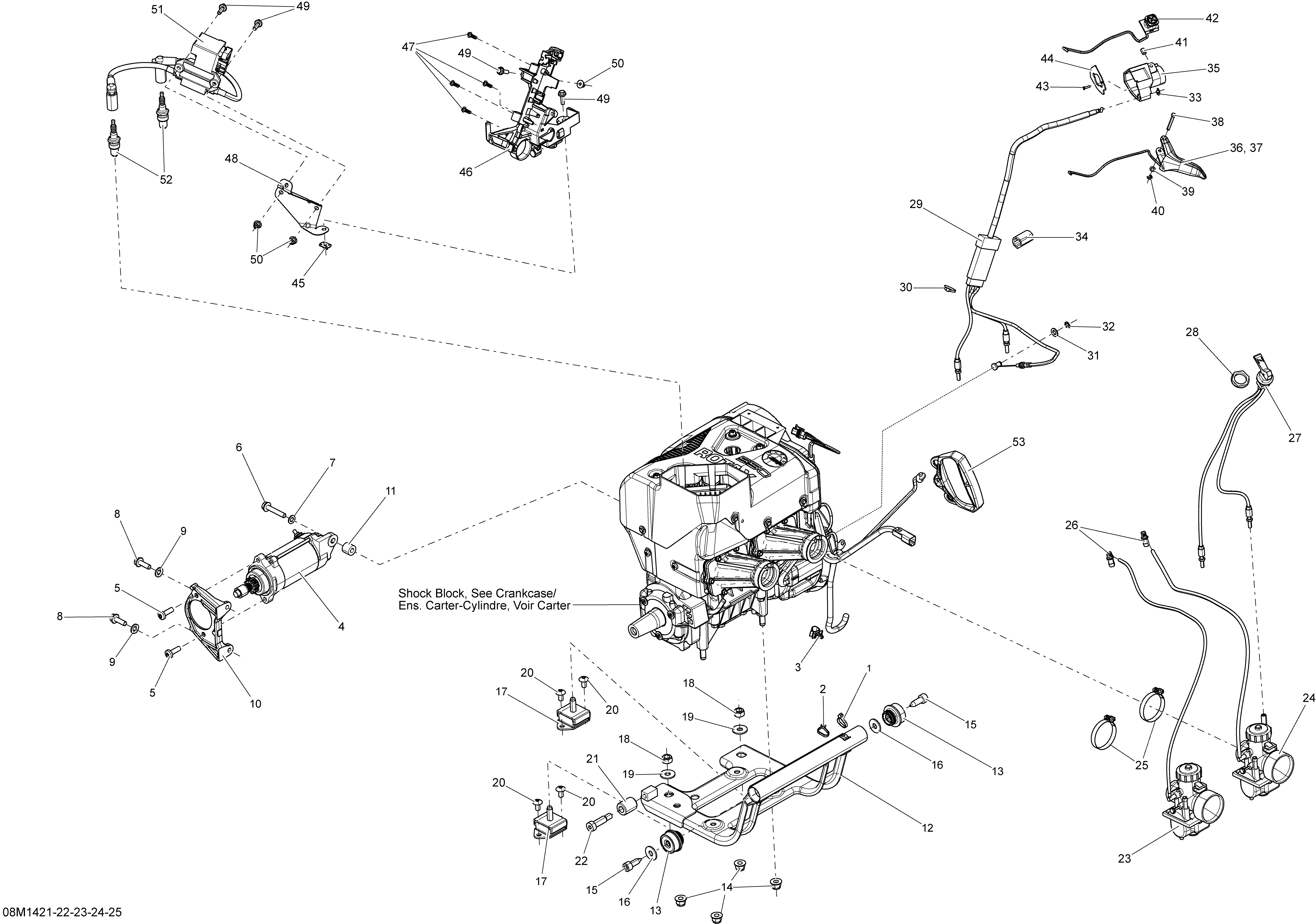

01- Engine And Engine Support для BRP Ski-Doo RENEGADE SPORT 550F XP - 2014
-
№АртикулНазвание
-
1414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515176795 ClipClip
-
4515177389 Starter. Electric StartStarter. Electric Start
-
5250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
6207584544 Hex. Flanged Screw M8 X 45, Scotch Grip. Electric StartHex. Flanged Screw M8 X 45, Scotch Grip. Electric Start
-
7250200008 Flat Washer With Teflon 8 mm. Electric StartFlat Washer With Teflon 8 mm. Electric Start
-
8207582586 Hex. Flanged Screw M8 X 25, Scotch Grip. Electric StartHex. Flanged Screw M8 X 25, Scotch Grip. Electric Start
-
9250200146 Conical Spring Washer M8. Electric StartConical Spring Washer M8. Electric Start
-
10512060656 Support. Electric StartSupport. Electric Start
-
11515176597 Spacer. Electric StartSpacer. Electric Start
-
12512060637 Engine Support Ass'y. Includes 12 to 13Engine Support Ass'y. Includes 12 to 13
-
13512059691 Rubber MountRubber Mount
-
14233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
15250000094 Screw M10 X 30Screw M10 X 30
-
16250200014 Flat WasherFlat Washer
-
17512060564 Rubber MountRubber Mount
-
18232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
19250200014 Flat WasherFlat Washer
-
20250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
21512060395 StopperStopper
-
22250000463 Socket Head Screw, Scotch GripSocket Head Screw, Scotch Grip
-
23403138814 Carburetor VM30-219, PTOCarburetor VM30-219, PTO
-
24403138813 Carburetor VM30-218, MAGCarburetor VM30-218, MAG
-
25512059834 Gemi ClampGemi Clamp
-
26414814100 Male ConnectorMale Connector
-
27512060674 Choke CableChoke Cable
-
28512060671 Plastic NutPlastic Nut
-
29512060891 Throttle CableThrottle Cable
-
30293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
31234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
32414753500 CirclipCirclip
-
33414274500 CirclipCirclip
-
34512060313 ProtectorProtector
-
35512060603 Throttle HousingThrottle Housing
-
36512060307 Handle Ass'y. Includes 36 to 37Handle Ass'y. Includes 36 to 37
-
37515175232 Male TerminalMale Terminal
-
38414438700 Lever PinLever Pin
-
39234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
40293370050 CirclipCirclip
-
41414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
42515177362 Kill SwitchKill Switch
-
43250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
44512060390 PlatePlate
-
45293100003 Nut M6Nut M6
-
46512060924 Coils SupportCoils Support
-
47241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
48512060460 Support CoilsSupport Coils
-
49207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
50233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51512060324 Calibrated ModuleCalibrated Module
-
52512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
53512060136 Starter GripStarter Grip
