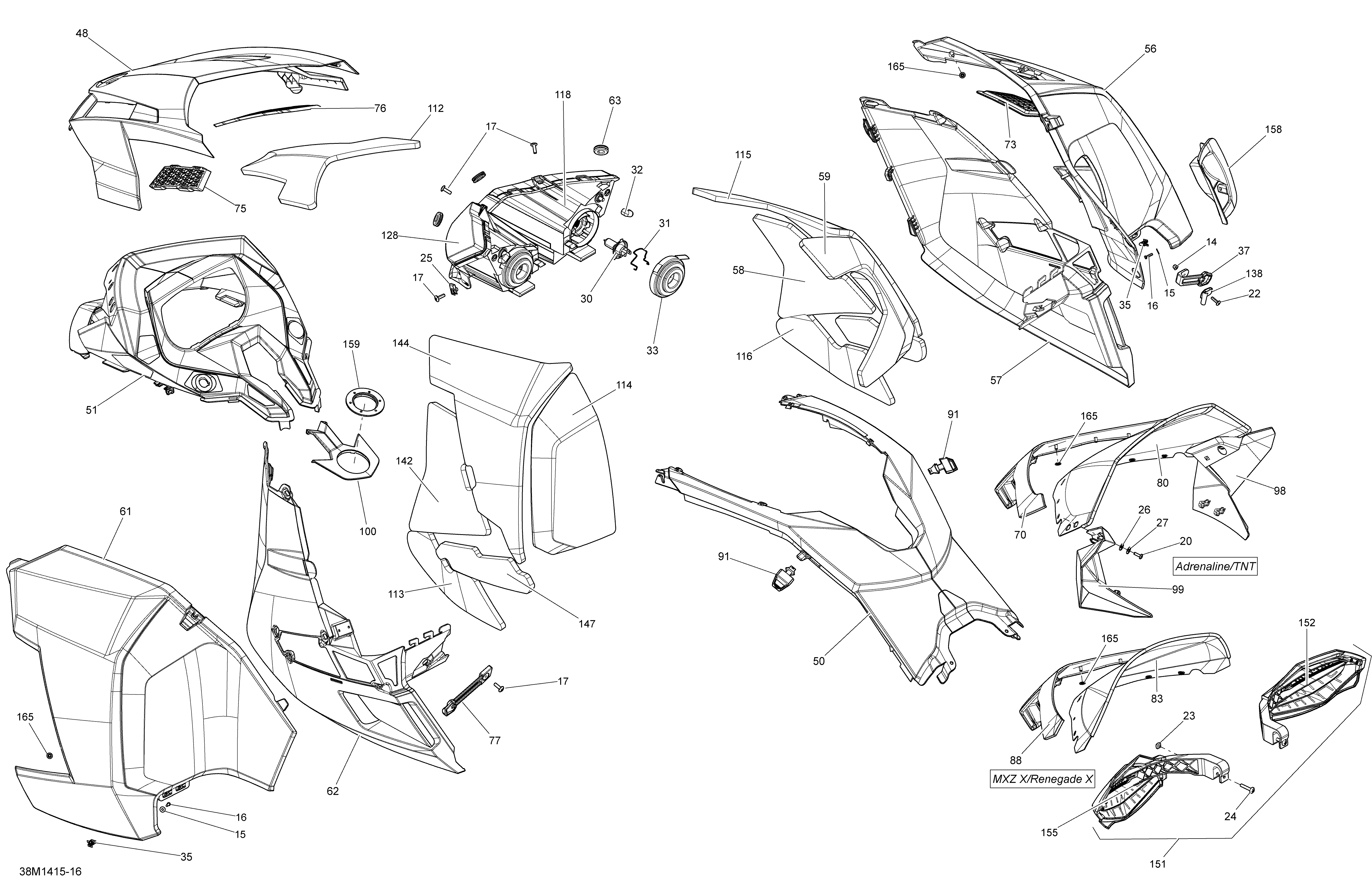

09- Hood, Windshield And Console для BRP Ski-Doo RENEGADE X 12004TEC XR - 2014
-
№АртикулНазвание
-
14233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
15234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
16241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
17250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
23250000498 Square Nut M6Square Nut M6
-
24250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
27250200025 Washer M5Washer M5
-
30515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
32515176498 CapCap
-
33515176499 CoverCover
-
35517302785 ClipClip
-
37517303612 RH Panel LatchRH Panel Latch
-
48517303739 Black HoodBlack Hood
-
50517303741 Black ConsoleBlack Console
-
51517303742 Black Indicator SupportBlack Indicator Support
-
51517305179 Yellow Indicator SupportYellow Indicator Support
-
56517303748 Black RH PanelBlack RH Panel
-
57517304373 Black RH Pannel MouldingBlack RH Pannel Moulding
-
58517304894 Central Foam Panel RHCentral Foam Panel RH
-
59517304895 Rear Panel Foam RHRear Panel Foam RH
-
61517303753 Black LH PannelBlack LH Pannel
-
62517304362 Black LH Pannel MouldingBlack LH Pannel Moulding
-
63517303756 GrommetGrommet
-
70860200229 Medium Windshield SupportMedium Windshield Support
-
73517303801 Panel GrillPanel Grill
-
75517303804 LH Hood GrillLH Hood Grill
-
76517303805 RH Hood GrillRH Hood Grill
-
77517303808 LH Panel LatchLH Panel Latch
-
80517303887 Medium Windshield (395). Model-AdrenalineMedium Windshield (395). Model-Adrenaline
-
83517303888 Low Windshield (250). Model-Renegade XLow Windshield (250). Model-Renegade X
-
88860200228 Low Windshield SupportLow Windshield Support
-
91517305000 Panel LatchPanel Latch
-
98517304024 RH Console Air Deflector. Model-AdrenalineRH Console Air Deflector. Model-Adrenaline
-
99517304025 LH Console Air Deflector. Model-AdrenalineLH Console Air Deflector. Model-Adrenaline
-
100517304027 Deep Black Cap ConsoleDeep Black Cap Console
-
112517304893 Hood Foam. Model-AdrenalineHood Foam. Model-Adrenaline
-
113517304901 LH Lower Panel Foam. Model-AdrenalineLH Lower Panel Foam. Model-Adrenaline
-
113517304900 LH Lower Panel Foam. Model-Renegade XLH Lower Panel Foam. Model-Renegade X
-
114517304904 LH Rear Panel FoamLH Rear Panel Foam
-
115517304908 RH Upper Panel Foam. Model-AdrenalineRH Upper Panel Foam. Model-Adrenaline
-
115517304907 RH Upper Panel Foam. Model-Renegade XRH Upper Panel Foam. Model-Renegade X
-
116517304905 RH Lower Panel Foam. Model-AdrenalineRH Lower Panel Foam. Model-Adrenaline
-
116517304906 RH Lower Panel Foam. Model-Renegade XRH Lower Panel Foam. Model-Renegade X
-
118517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
138517304221 Latch SupportLatch Support
-
142517304899 LH Central Panel Foam. Model-AdrenalineLH Central Panel Foam. Model-Adrenaline
-
142517304898 LH Central Panel Foam. Model-Renegade XLH Central Panel Foam. Model-Renegade X
-
144517304902 LH Upper Panel Foam. Model-AdrenalineLH Upper Panel Foam. Model-Adrenaline
-
144517304903 LH Upper Panel Foam. Model-Renegade XLH Upper Panel Foam. Model-Renegade X
-
147517304897 Central Foam Panel LH. Model-AdrenalineCentral Foam Panel LH. Model-Adrenaline
-
147517304896 Central Foam Panel LH. Model-Renegade XCentral Foam Panel LH. Model-Renegade X
-
151860200712 Grey Wind Deflector Kit. Model-Renegade XGrey Wind Deflector Kit. Model-Renegade X
-
152517305039 Grey RH Wind DeflectorGrey RH Wind Deflector
-
155517305040 Grey LH Wind DeflectorGrey LH Wind Deflector
-
158517304500 Black RH ConsoleBlack RH Console
-
159517304518 Console NutConsole Nut
-
165732610072 Push NutPush Nut
