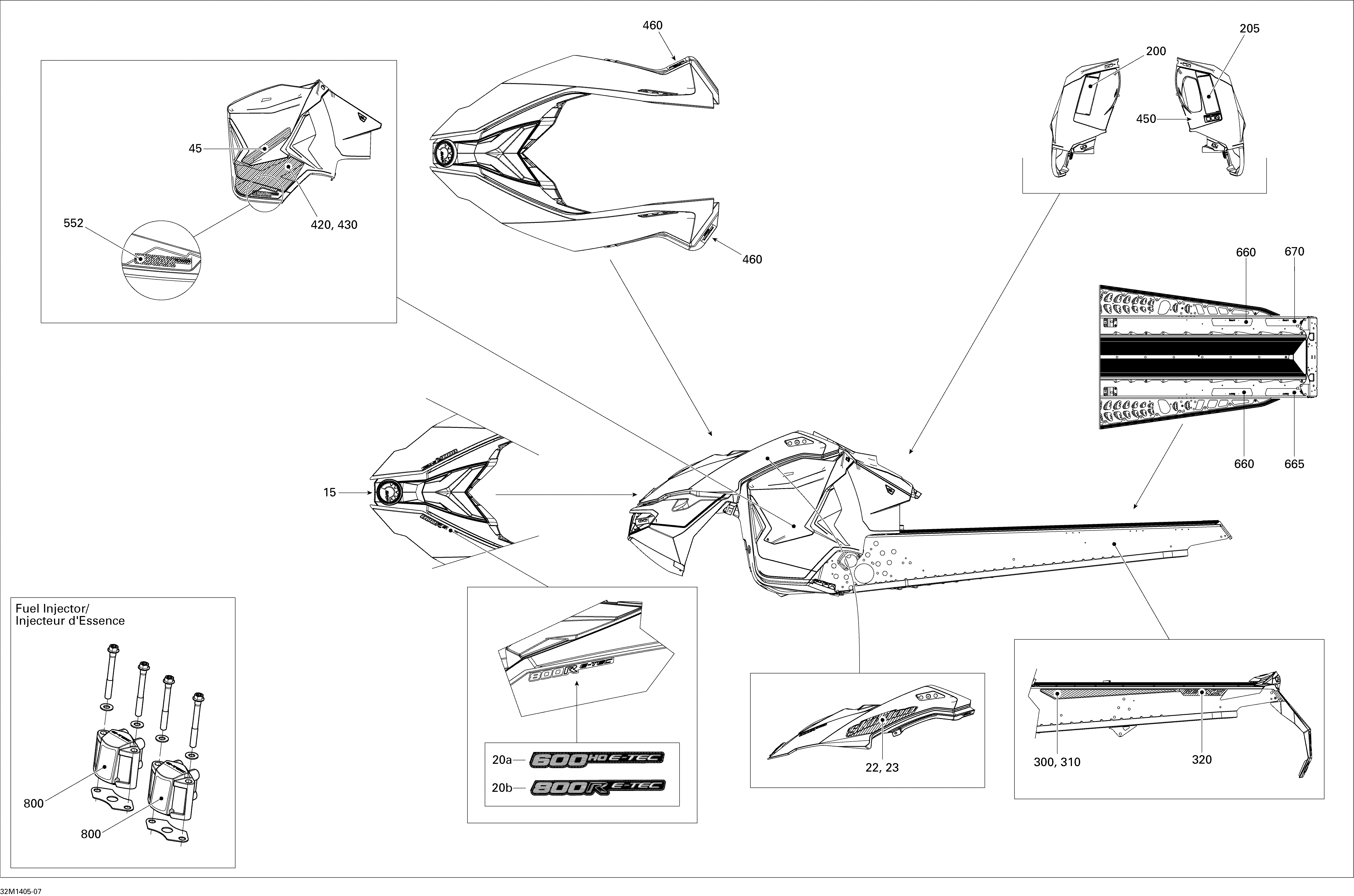

09- Decals 600HOETEC для BRP Ski-Doo RENEGADE X 600HOE XS - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20a516006152 Hood Decal, 600 HO E-TECHood Decal, 600 HO E-TEC
-
22516006368 RH Hood Decal, Ski-Doo. Black-Black ModelRH Hood Decal, Ski-Doo. Black-Black Model
-
22516006217 RH Hood Decal, Ski-Doo. White-White ModelRH Hood Decal, Ski-Doo. White-White Model
-
23516006367 LH Hood Decal, Ski-Doo. Black-Black ModelLH Hood Decal, Ski-Doo. Black-Black Model
-
23516006216 LH Hood Decal, Ski-Doo. White-White ModelLH Hood Decal, Ski-Doo. White-White Model
-
45516006123 Side Decal, Renegade. Black-Black ModelSide Decal, Renegade. Black-Black Model
-
45516006008 Side Decal, Renegade. White-White ModelSide Decal, Renegade. White-White Model
-
200516005055 Warning Decal, SecurityWarning Decal, Security
-
205516005056 Warning Decal, SecurityWarning Decal, Security
-
300516006245 RH Frame Decal. Black-Black ModelRH Frame Decal. Black-Black Model
-
300516006247 RH Frame Decal. White-White ModelRH Frame Decal. White-White Model
-
310516006244 LH Frame Decal. Black-Black ModelLH Frame Decal. Black-Black Model
-
310516006246 LH Frame Decal. White-White ModelLH Frame Decal. White-White Model
-
320516006257 Frame Decal, REV XS. Black-Black ModelFrame Decal, REV XS. Black-Black Model
-
320516006258 Frame Decal, REV XS. White-White ModelFrame Decal, REV XS. White-White Model
-
420516006122 RH Lower Decal. Black-Black ModelRH Lower Decal. Black-Black Model
-
420516006014 RH Lower Decal. White-White ModelRH Lower Decal. White-White Model
-
430516006121 LH Lower Decal. Black-Black ModelLH Lower Decal. Black-Black Model
-
430516006013 LH Lower Decal. White-White ModelLH Lower Decal. White-White Model
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516005984 Decal, Rotax PowerDecal, Rotax Power
-
660516005154 Frame Top DecalFrame Top Decal
-
665516005171 Frame Top DecalFrame Top Decal
-
670516005170 Frame Top DecalFrame Top Decal
-
800516005583 Warning Decal, InjectorsWarning Decal, Injectors
