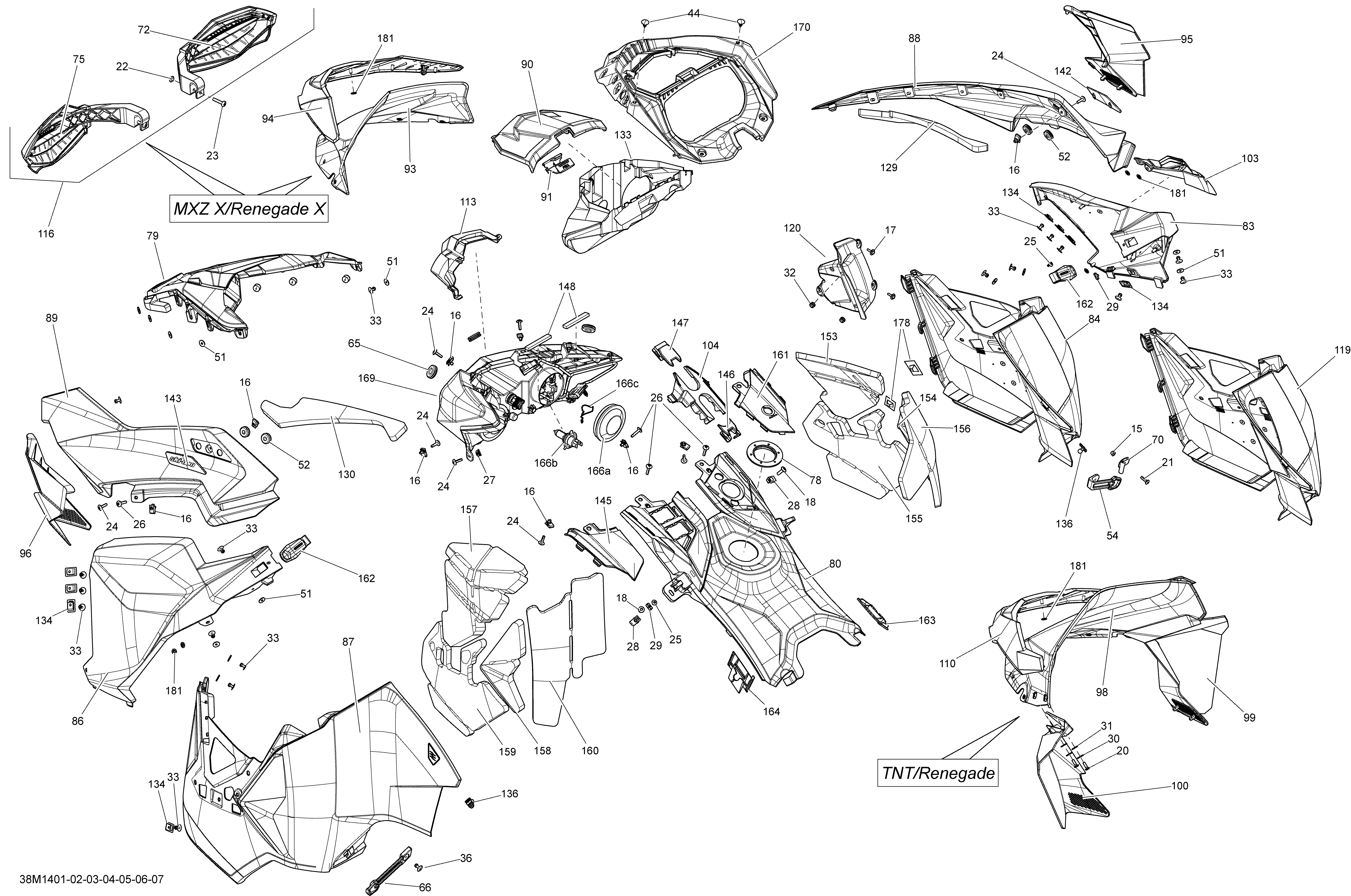

09- Hood, Windshield And Console для BRP Ski-Doo RENEGADE X 800RETEC XS - 2014
-
№АртикулНазвание
-
15233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
16250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
22250000498 Square Nut M6Square Nut M6
-
23250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
24250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
25250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
26250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
27250100035 Jack Nut M5Jack Nut M5
-
28250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
29250100156 Weld Nut M4Weld Nut M4
-
30250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
44414644300 DartDart
-
51517124300 WasherWasher
-
52517302841 GrommetGrommet
-
54517303612 RH Panel LatchRH Panel Latch
-
65517303756 GrommetGrommet
-
66517303808 LH Panel LatchLH Panel Latch
-
70517304221 Latch SupportLatch Support
-
72517305039 Grey RH Wind DeflectorGrey RH Wind Deflector
-
72517305392 Can-Am Red RH Wind DeflectorCan-Am Red RH Wind Deflector
-
75517305040 Grey LH Wind DeflectorGrey LH Wind Deflector
-
75517305393 Can-Am RedLH Wind DeflectorCan-Am RedLH Wind Deflector
-
78517304518 Console NutConsole Nut
-
79517305369 Red Center HoodRed Center Hood
-
80517305386 Can-Am Red Rear ConsoleCan-Am Red Rear Console
-
80517305181 Deep Black Rear ConsoleDeep Black Rear Console
-
83517305397 White RH PanelWhite RH Panel
-
83517304801 Deep Black RH PanelDeep Black RH Panel
-
84517304802 Deep Black RH Panel TrimDeep Black RH Panel Trim
-
86517305405 White LH PanelWhite LH Panel
-
86517304804 Deep Black LH PanelDeep Black LH Panel
-
87517304805 Deep Black LH Flashing PanelDeep Black LH Flashing Panel
-
88517305384 White RH HoodWhite RH Hood
-
88517305370 Black Mat RH HoodBlack Mat RH Hood
-
89517305385 White LH HoodWhite LH Hood
-
89517305371 Black Mat LH HoodBlack Mat LH Hood
-
90517304912 Upper Storage Access CoverUpper Storage Access Cover
-
91517304917 Cover LatchCover Latch
-
93517304921 Windshield 235mmWindshield 235mm
-
94517304922 Short Windshield SupportShort Windshield Support
-
95517304923 RH Air Deflector ConsoleRH Air Deflector Console
-
96517304924 LH Air Deflector ConsoleLH Air Deflector Console
-
103517304935 RH Panel Vent GridRH Panel Vent Grid
-
104517304970 Console SupportConsole Support
-
113517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
116860200712 Grey Wind Deflector KitGrey Wind Deflector Kit
-
116860201036 Wind Deflector Kit, RedWind Deflector Kit, Red
-
129517305090 RH Rear Hood FoamRH Rear Hood Foam
-
130517305091 LH Rear Hood FoamLH Rear Hood Foam
-
133517305095 TrunkTrunk
-
134517305109 Rivet PlateRivet Plate
-
136517305504 PinPin
-
145517305143 Deep Black LH Front ConsoleDeep Black LH Front Console
-
146517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
147517305148 Support Console CapSupport Console Cap
-
148517305157 Seal JointSeal Joint
-
153517305196 RH Upper Panel FoamRH Upper Panel Foam
-
154517305197 RH Center Panel FoamRH Center Panel Foam
-
155517305198 RH Lower Panel FoamRH Lower Panel Foam
-
156517305199 RH Rear Panel FoamRH Rear Panel Foam
-
157517305200 LH Upper Panel FoamLH Upper Panel Foam
-
158517305201 LH Center Panel FoamLH Center Panel Foam
-
159517305202 LH Lower Panel FoamLH Lower Panel Foam
-
160517305203 LH Rear Panel FoamLH Rear Panel Foam
-
162517305279 Panel LatchPanel Latch
-
163517305493 RH ClipRH Clip
-
164517305494 LH ClipLH Clip
-
169517305497 HeadlampHeadlamp
-
170517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
178517305451 Heat ShieldHeat Shield
-
181250100158 Push NutPush Nut
-
166a219400070 CapCap
-
166b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
166c219800282 Holder BracketHolder Bracket
