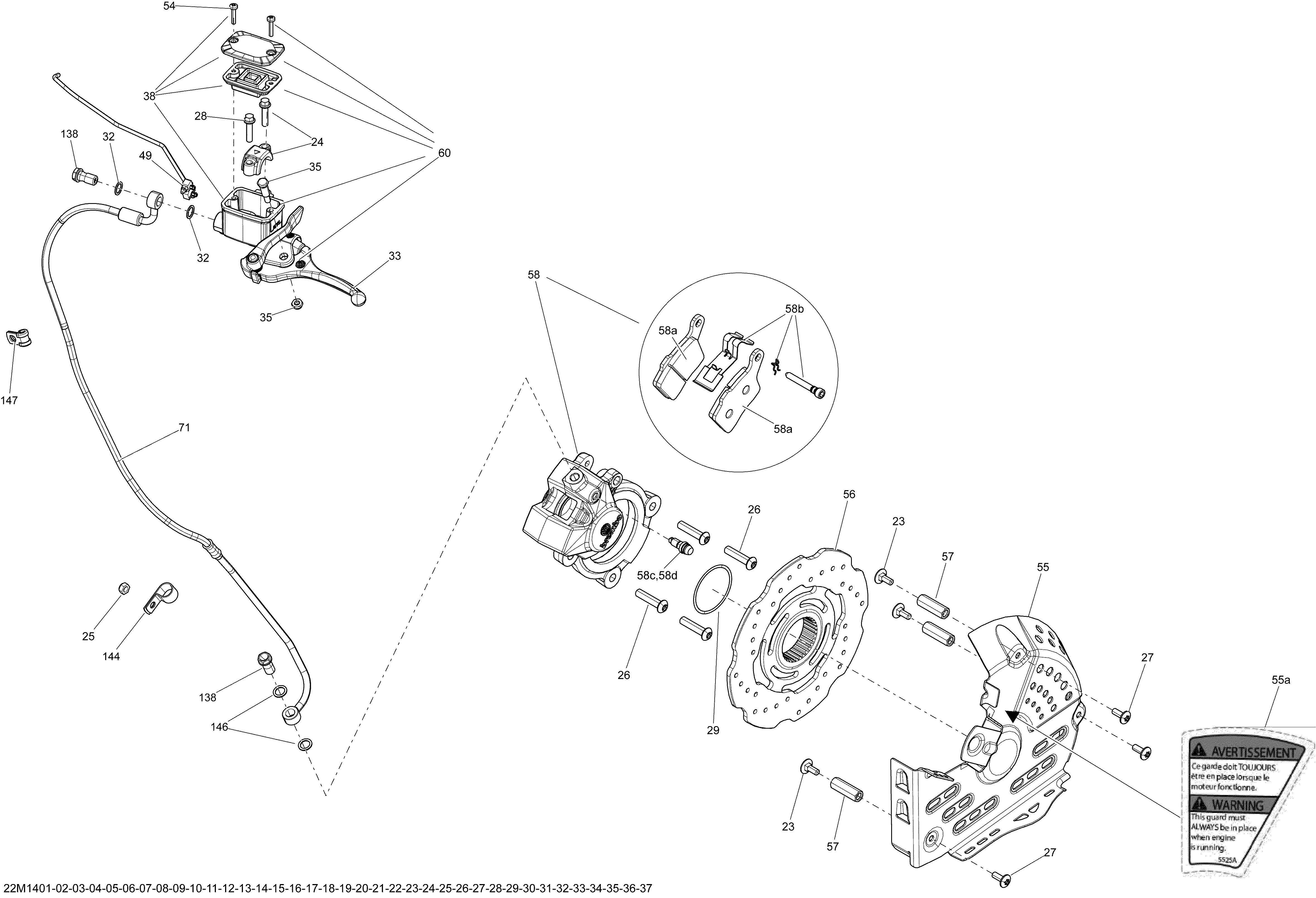

06- Hydraulic Brakes для BRP Ski-Doo SUMMIT SP 800RE XM 163 - 2014
-
№АртикулНазвание
-
23207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
24507032477 Clamp And Screw Kit. XS, XMClamp And Screw Kit. XS, XM
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
27250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
28250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
29293300134 O-RingO-Ring
-
32705600310 Copper WasherCopper Washer
-
33507032476 Lever. XS, XMLever. XS, XM
-
35415030000 Pin Ass'y. XS, XMPin Ass'y. XS, XM
-
38507032478 Master Cylinder Reservoir Ass'y. XS, XMMaster Cylinder Reservoir Ass'y. XS, XM
-
49507032479 Microswitch. XS, XMMicroswitch. XS, XM
-
54415129356 Screw M4 X 20. XS, XMScrew M4 X 20. XS, XM
-
55507032492 Black Disk ProtectorBlack Disk Protector
-
55a516005525 Warning DecalWarning Decal
-
56507032487 DiskDisk
-
57507032497 Threaded TubeThreaded Tube
-
58507032500 Brake Caliper Ass'y. SPBrake Caliper Ass'y. SP
-
58a507032473 Brake Pads Kit. SPBrake Pads Kit. SP
-
58b507032474 Pin, Clip & Spring Kit. SPPin, Clip & Spring Kit. SP
-
58c507032475 Bleeder. SPBleeder. SP
-
58d414989700 Boot. SPBoot. SP
-
60507032529 Master Cylinder Ass'y. XS, XMMaster Cylinder Ass'y. XS, XM
-
71507032535 Hose. SUMMITHose. SUMMIT
-
138507032539 Banjo BoltBanjo Bolt
-
144518321570 Open ClampOpen Clamp
-
146705600310 Copper WasherCopper Washer
-
147715900250 Hose ClipHose Clip
