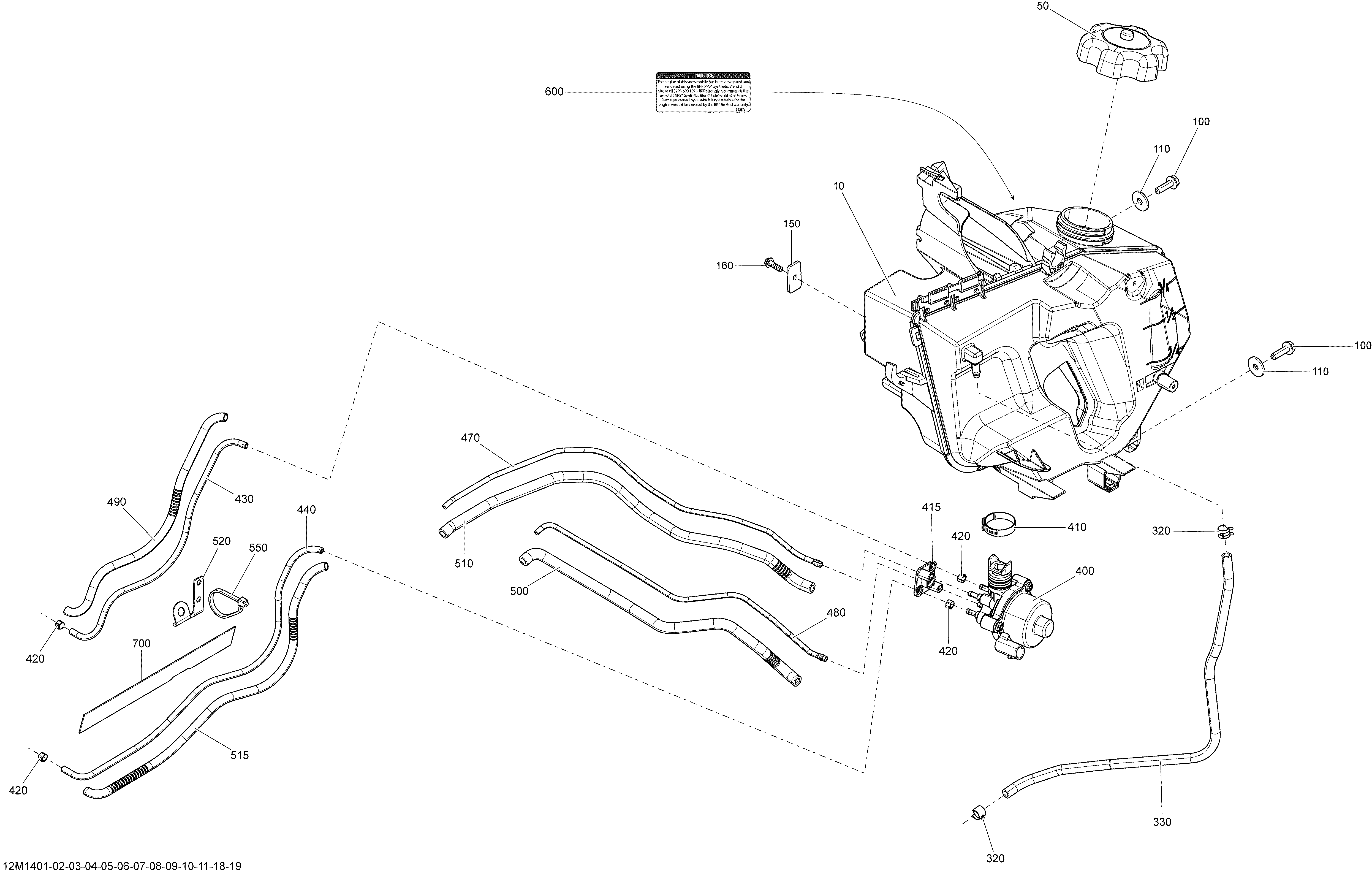

02- Oil System для BRP Ski-Doo SUMMIT X 800RE XM 146 - 2014
-
№АртикулНазвание
-
10519000299 Oil TankOil Tank
-
50519000273 CapCap
-
100250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110224061201 Flat WasherFlat Washer
-
150519000179 BracketBracket
-
160241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
320414554800 Spring ClampSpring Clamp
-
330415080200 Hose, PolyurethaneHose, Polyurethane
-
400519000281 Oil PumpOil Pump
-
410293650099 Crimp ClampCrimp Clamp
-
415519000271 BracketBracket
-
420293650100 Oetiker ClampOetiker Clamp
-
430519000182 Hose 3.5 mmHose 3.5 mm
-
440519000182 Hose 3.5 mmHose 3.5 mm
-
470519000184 Hose 2.5 mmHose 2.5 mm
-
480519000184 Hose 2.5 mmHose 2.5 mm
-
490515175442 Tubing 6 mmTubing 6 mm
-
500515175442 Tubing 6 mmTubing 6 mm
-
510515175442 Tubing 6 mmTubing 6 mm
-
515515175442 Tubing 6 mmTubing 6 mm
-
520519000245 BracketBracket
-
550293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
600516005528 Notice Decal, OilNotice Decal, Oil
-
700516004648 Protection DecalProtection Decal
