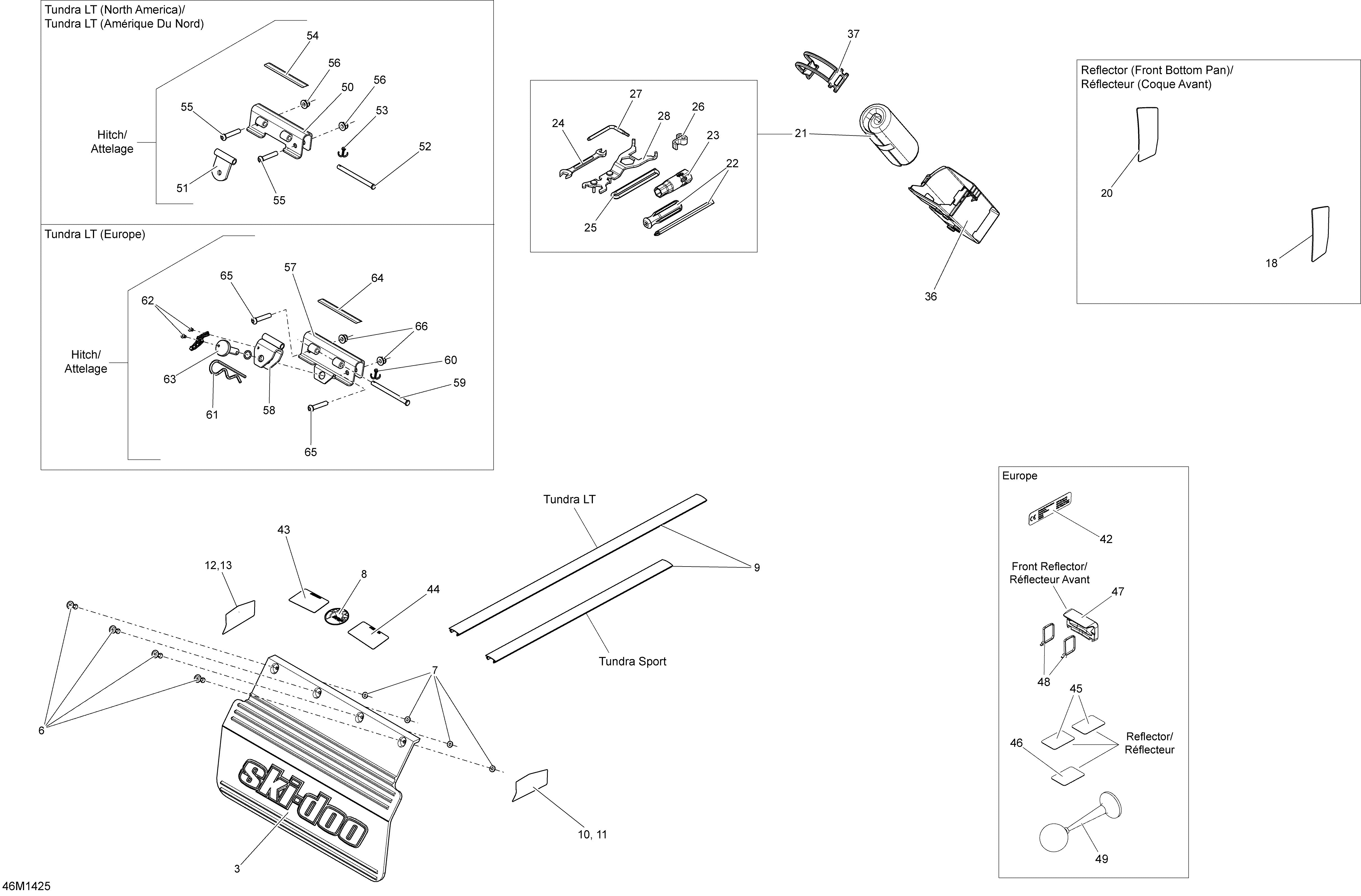

09- Utilities LT для BRP Ski-Doo TUNDRA LT 550F XU - 2014
-
№АртикулНазвание
-
3520000949 Snow GuardSnow Guard
-
7517124300 WasherWasher
-
8219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
9520000829 Radiator TrimRadiator Trim
-
10520000881 Red RH Rear Reflector. Model-North AmericaRed RH Rear Reflector. Model-North America
-
11520000883 Yellow RH Rear Reflector. Model-EuropeYellow RH Rear Reflector. Model-Europe
-
12520000880 Red LH Rear Reflector. Model-North AmericaRed LH Rear Reflector. Model-North America
-
13520000882 Yellow LH Rear Reflector. Model-EuropeYellow LH Rear Reflector. Model-Europe
-
18520000891 Yellow RH Front ReflectorYellow RH Front Reflector
-
20520000892 Yellow LH Front ReflectorYellow LH Front Reflector
-
21529000065 Tool Kit. Includes 21 to 28Tool Kit. Includes 21 to 28
-
22529000004 Screw DriverScrew Driver
-
23529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
24529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
25412500200 Starter Rope, MeterStarter Rope, Meter
-
26529000060 Starter GripStarter Grip
-
27520001142 Spacing ToolSpacing Tool
-
28520000988 Wrench SuspensionWrench Suspension
-
36520000894 Tool Kit RackTool Kit Rack
-
37520000528 LatchLatch
-
42516005873 ''CE'' Decal. Model-Europe''CE'' Decal. Model-Europe
-
43516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
44516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
45520000271 Amber Reflector. Model-EuropeAmber Reflector. Model-Europe
-
46415037900 White Reflector. Model-EuropeWhite Reflector. Model-Europe
-
47520000871 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
48293750018 Tie Rap 371 mm. Model-EuropeTie Rap 371 mm. Model-Europe
-
49549011291 Horn. Model-EuropeHorn. Model-Europe
-
50511000768 Support. Model-North AmericaSupport. Model-North America
-
51511000521 Hitch Plate Welded. Model-North AmericaHitch Plate Welded. Model-North America
-
52511000520 Clevis Pin. Model-North AmericaClevis Pin. Model-North America
-
53371800200 Cotter Pin. Model-North AmericaCotter Pin. Model-North America
-
54516004568 Warning Decal, Security. Model-North AmericaWarning Decal, Security. Model-North America
-
55205484546 Socket Head Screw M8 X 45. Model-North AmericaSocket Head Screw M8 X 45. Model-North America
-
56233281466 Elastic Flang Nut M8. Model-North AmericaElastic Flang Nut M8. Model-North America
-
57511000554 Support. Model-EuropeSupport. Model-Europe
-
58511000588 Hitch Plate. Model-EuropeHitch Plate. Model-Europe
-
59511000520 Clevis Pin. Model-EuropeClevis Pin. Model-Europe
-
60371800200 Cotter Pin. Model-EuropeCotter Pin. Model-Europe
-
61114045200 Hair Pin. Model-EuropeHair Pin. Model-Europe
-
62390404300 Pop Rivet 5/32''. Model-EuropePop Rivet 5/32''. Model-Europe
-
63511000555 Pin. Model-EuropePin. Model-Europe
-
64516004568 Warning Decal, Security. Model-EuropeWarning Decal, Security. Model-Europe
-
65205484546 Socket Head Screw M8 X 45. Model-EuropeSocket Head Screw M8 X 45. Model-Europe
-
66233281414 Hex. Flanged Elastic Nut M8. Model-EuropeHex. Flanged Elastic Nut M8. Model-Europe
