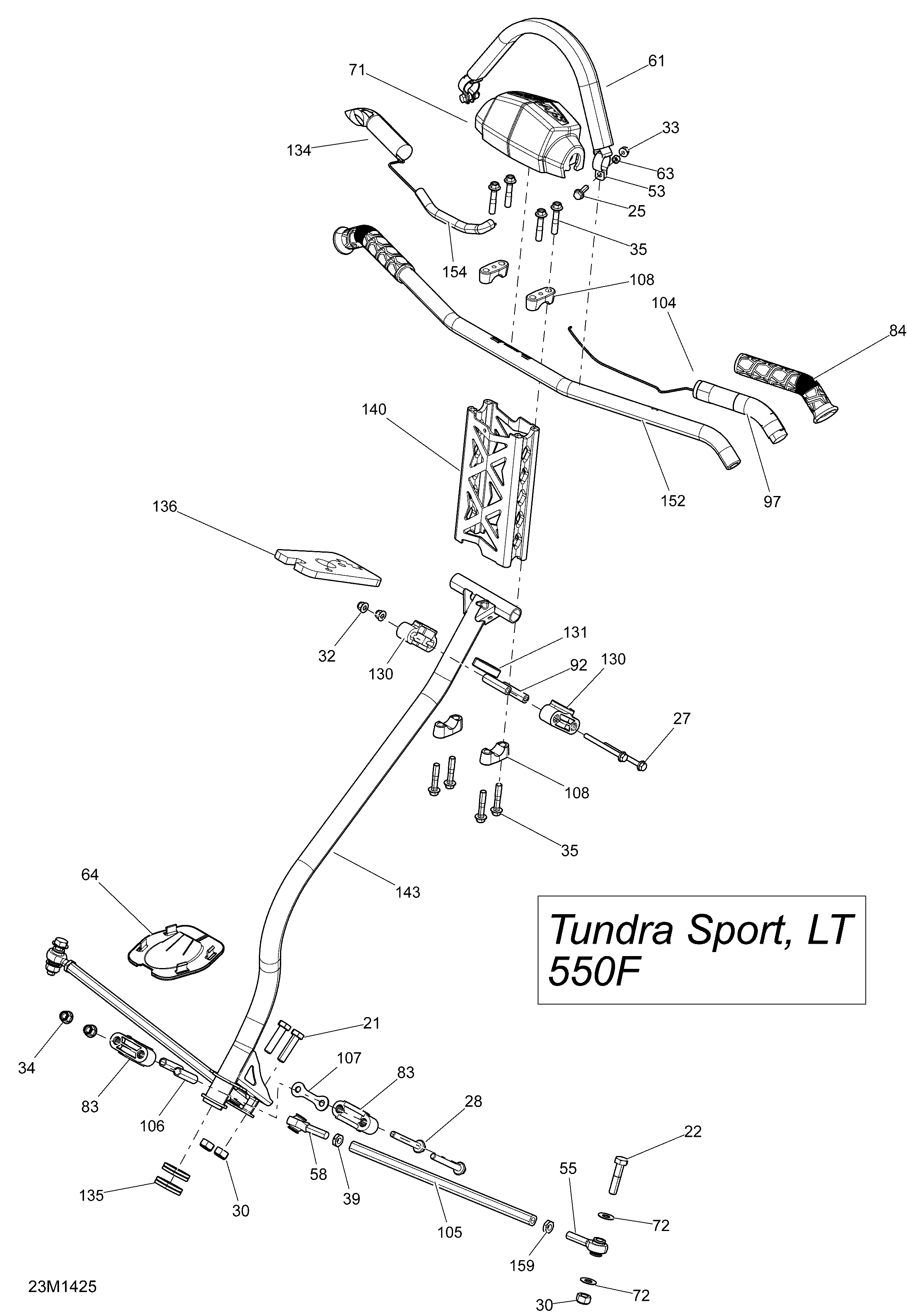

07- Steering для BRP Ski-Doo TUNDRA SPORT 550F XU - 2014
-
№АртикулНазвание
-
21207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
22207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
25207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
27207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
28207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
30233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
32233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
39250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
53506152536 Black Support PlateBlack Support Plate
-
55506152019 RH Thread Ball JointRH Thread Ball Joint
-
58506152081 LH Thread Ball JointLH Thread Ball Joint
-
61506152115 Strap Ass'yStrap Ass'y
-
63506152156 BushingBushing
-
71506152192 Steering PadSteering Pad
-
72506152582 WasherWasher
-
83506152217 Lower Half-HousingLower Half-Housing
-
84506152486 GripGrip
-
92506152297 Housing BushingHousing Bushing
-
97506152611 InsulantInsulant
-
104506152578 Heating Element 20 WATTHeating Element 20 WATT
-
105506152377 Tie RodTie Rod
-
106506152388 Lower Housing BushingLower Housing Bushing
-
107506152389 Stopper PlateStopper Plate
-
108506152395 Steering SupportSteering Support
-
130506152508 Upper Half-HousingUpper Half-Housing
-
131506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
134506152579 Heating Element 20 WATTHeating Element 20 WATT
-
135506152518 Lower Vibration RingLower Vibration Ring
-
136506152521 CushionCushion
-
140860200821 Extension KitExtension Kit
-
143506152586 Black Main TubeBlack Main Tube
-
152506152710 Black Handle BarBlack Handle Bar
-
154515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
159732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
