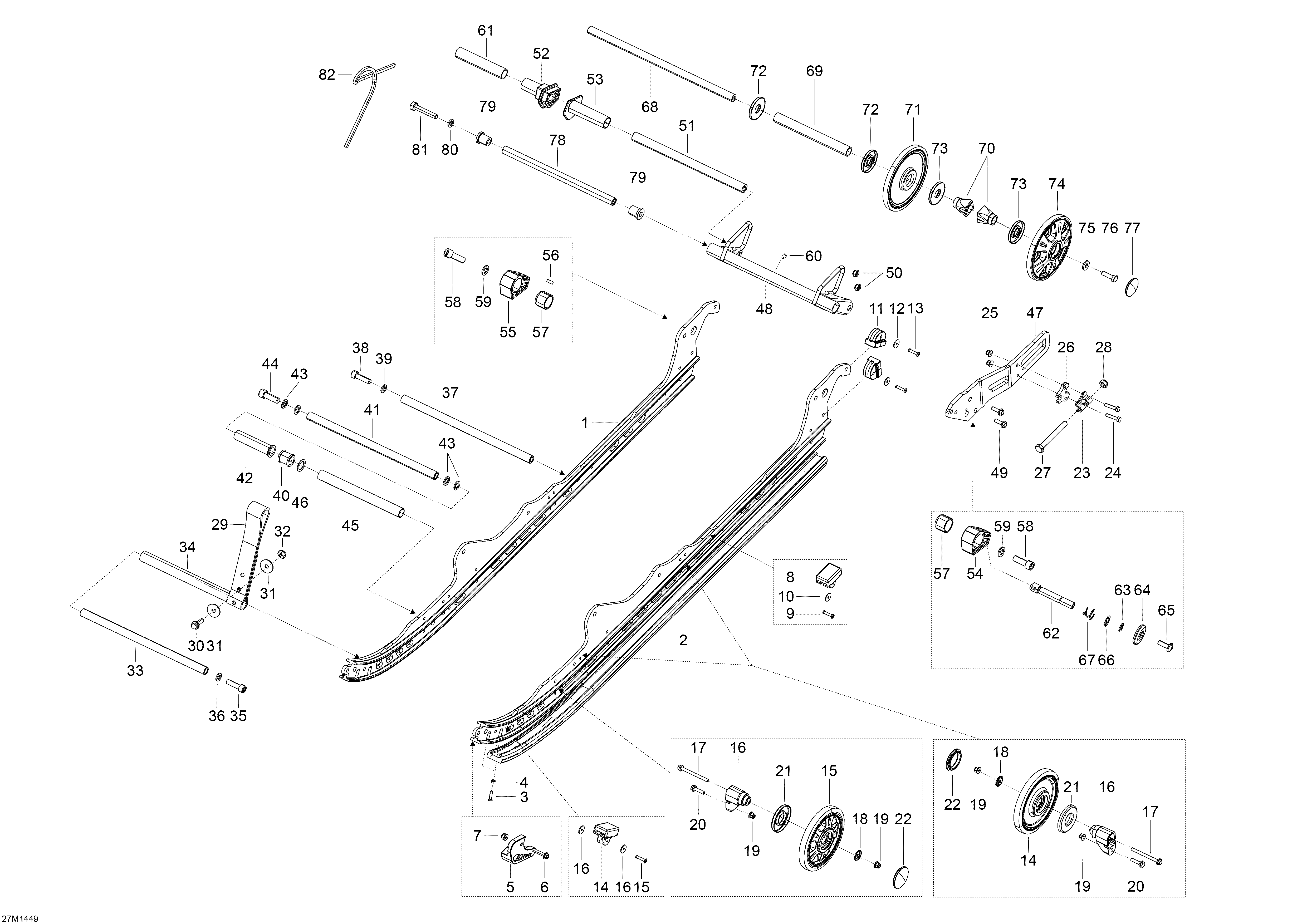

08- Rear Suspension A для BRP Ski-Doo TUNDRA WT 550F RER XU - 2014
-
№АртикулНазвание
-
1503193397 RunnerRunner
-
2503191619 SliderSlider
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8503190576 Rubber StopperRubber Stopper
-
9293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
10503191273 WasherWasher
-
11503191291 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14503191311 Black Wheel Ass'y, 147 mmBlack Wheel Ass'y, 147 mm
-
15503191152 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
16503193082 Casted SupportCasted Support
-
17207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
18503191820 Wheel Cup M6Wheel Cup M6
-
19233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
21503190434 Labyrinth SealLabyrinth Seal
-
22503192771 Black Wheel CapBlack Wheel Cap
-
23503192814 TensionerTensioner
-
24250000480 Hex Cap Screw DIN.931Hex Cap Screw DIN.931
-
25233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26503193250 SpacerSpacer
-
27230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
28233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
29503192360 Stopper StrapStopper Strap
-
30207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
31224081301 Flat WasherFlat Washer
-
32233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
33503191418 Axle StrapAxle Strap
-
34503191419 SpacerSpacer
-
35205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
36503189564 WasherWasher
-
37503191418 Axle StrapAxle Strap
-
38205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
39503189564 WasherWasher
-
40503189271 CushionCushion
-
41503191420 ShaftShaft
-
42503191259 Center BushingCenter Bushing
-
43503189276 WasherWasher
-
44205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
45503191421 SpacerSpacer
-
46503189273 WasherWasher
-
47503192435 Rail Pivot RHRail Pivot RH
-
47503192434 Rail Pivot LHRail Pivot LH
-
48503191414 Welded PivotWelded Pivot
-
49207682534 Hex. Flanged ScrewHex. Flanged Screw
-
50232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
51503191711 Cam AxleCam Axle
-
52503191190 RH Spring CamRH Spring Cam
-
53503191668 LH Spring CamLH Spring Cam
-
54503192426 LH BlocLH Bloc
-
55503192427 RH BlocRH Bloc
-
56250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
57503189488 Block GuideBlock Guide
-
58205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
59503189148 WasherWasher
-
60408200700 Grease FittingGrease Fitting
-
61503191713 SpacerSpacer
-
62503192437 RodeRode
-
63234051410 Flat Washer M5Flat Washer M5
-
64503192438 HandleHandle
-
65250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
66293370068 CirclipCirclip
-
67503192436 Compression SpringCompression Spring
-
68503191408 Rear AxleRear Axle
-
69503191409 SpacerSpacer
-
70503190428 Rear Wheel SpacerRear Wheel Spacer
-
71503192140 Black Wheel Ass'y, 165 mmBlack Wheel Ass'y, 165 mm
-
72503190682 Labyrinth SealLabyrinth Seal
-
73503190434 Labyrinth SealLabyrinth Seal
-
74503192128 Deep Black Wheel Ass'y, 165 mmDeep Black Wheel Ass'y, 165 mm
-
75503190439 WasherWasher
-
76250000019 Hex. Screw With NylonHex. Screw With Nylon
-
77503192771 Black Wheel CapBlack Wheel Cap
-
78503191390 Lower ShaftLower Shaft
-
79503189324 CushionCushion
-
80503192496 WasherWasher
-
81250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
82503192282 Pivot SpringPivot Spring
